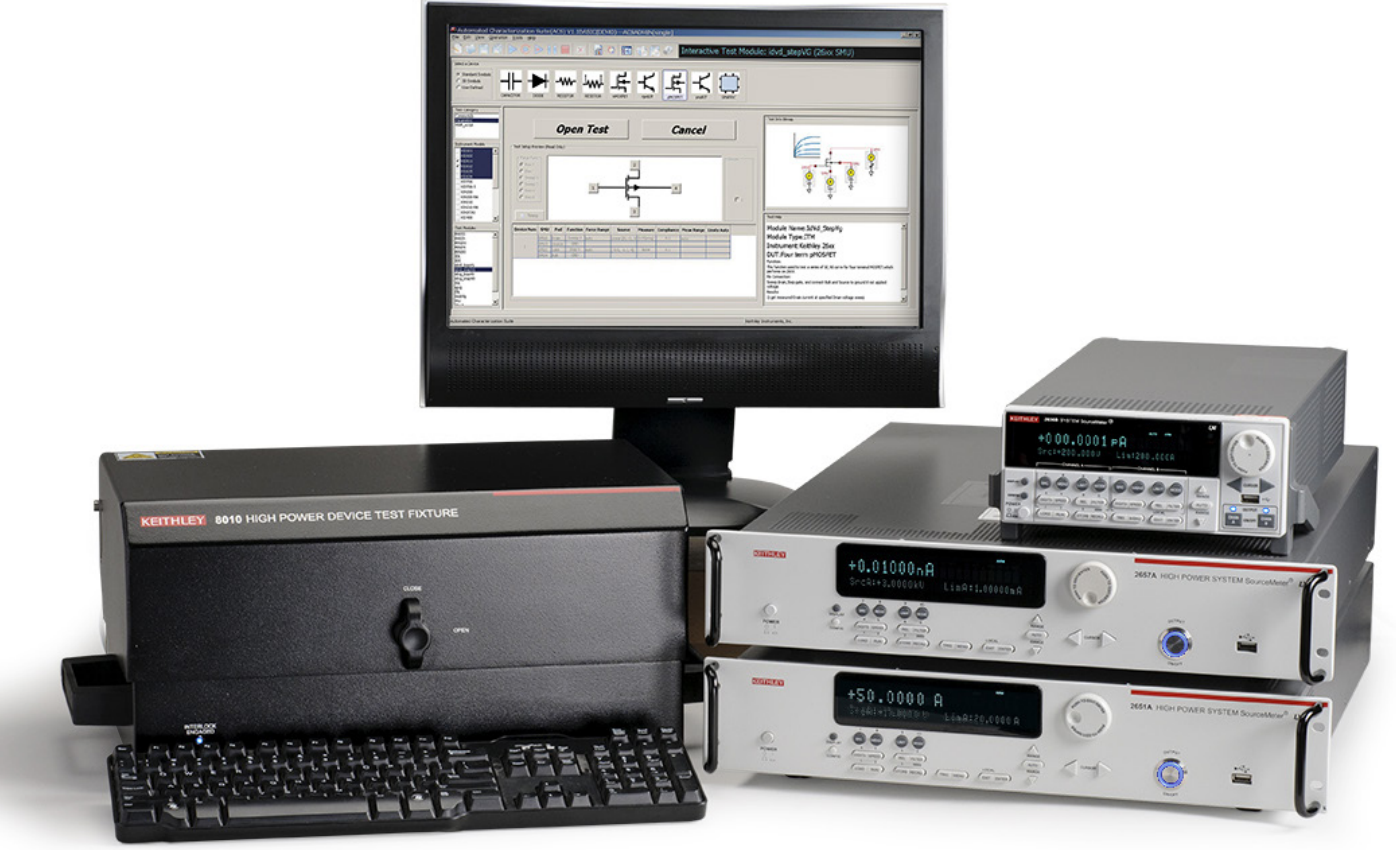

2600-PCT-xB Parametric Curve Tracer Configurations

    • systems for power semiconductor parameterization
    • warranty: 1 year
    Tektronix
    Other parameters
    Price on request
    Cat. no: 2600-PCT-xB.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    model features high voltage mode high current mode
    2600-PCT-1B low power 200 V/10 A 200 V/10 A
    2600-PCT-2B high current 200 V/10 A 40 V/50 A
    2600-PCT-3B high voltage 3 kV/120 mA 200 V/10 A
    2600-PCT-4B high current and voltage 3 kV/120 mA 40 V/50 A

    The development and application of MOSFETs, IGBTs, diodes and other high power devices requires complex characterization such as breakdown voltage, on-state current and capacitance measurements. Keithley offers high performance configurations to support a full range of device types and test parameters. These configurations offer more than legacy I-V Curve testers and include everything an engineer needs to quickly develop a complete test system. These configurations are modular so they can be upgraded in the future and individual instruments can be used for other applications.
