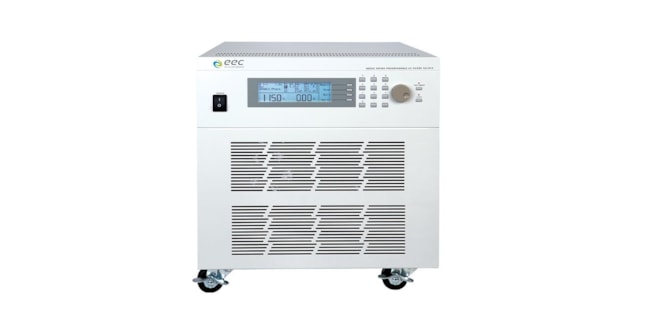

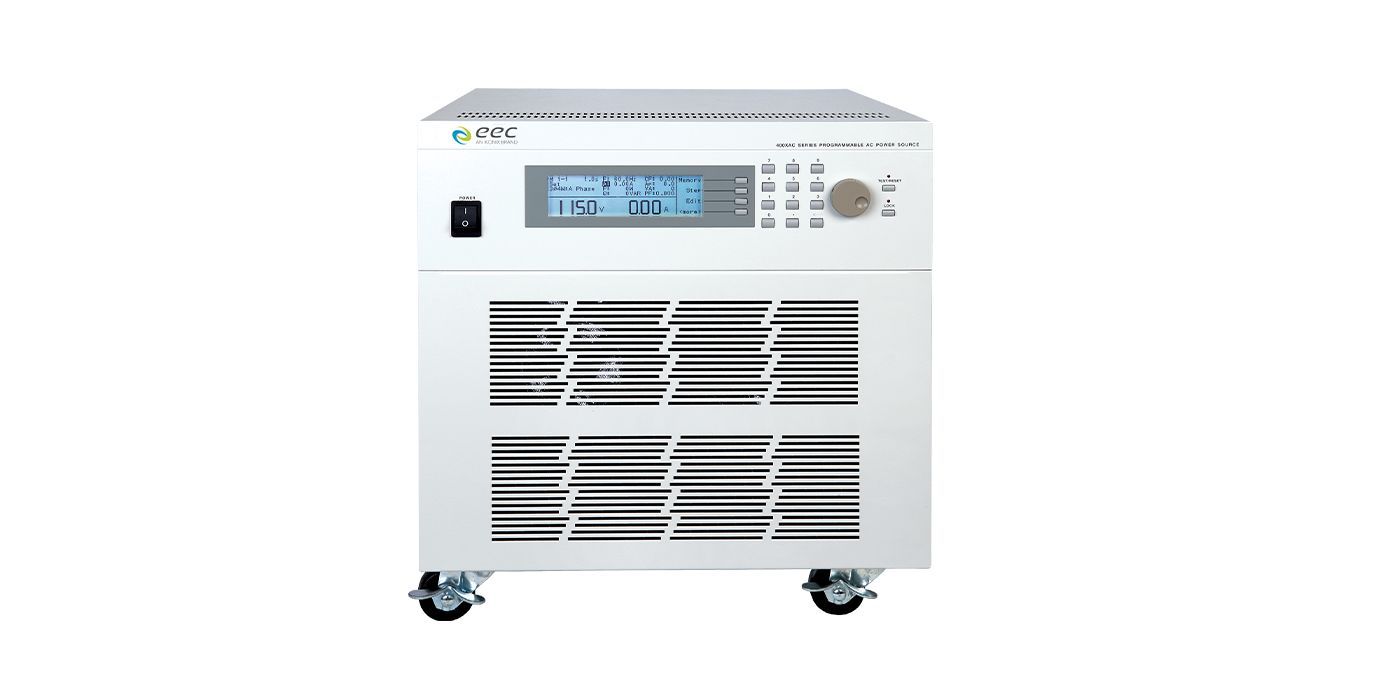

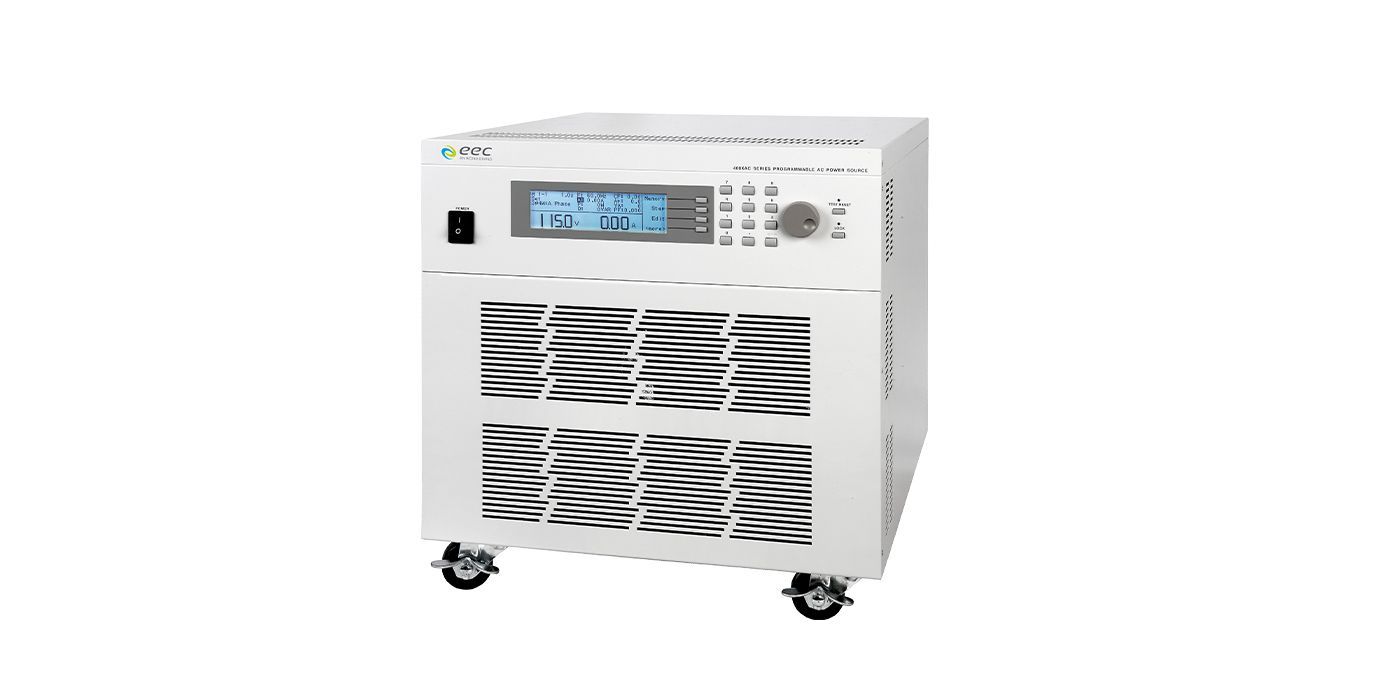

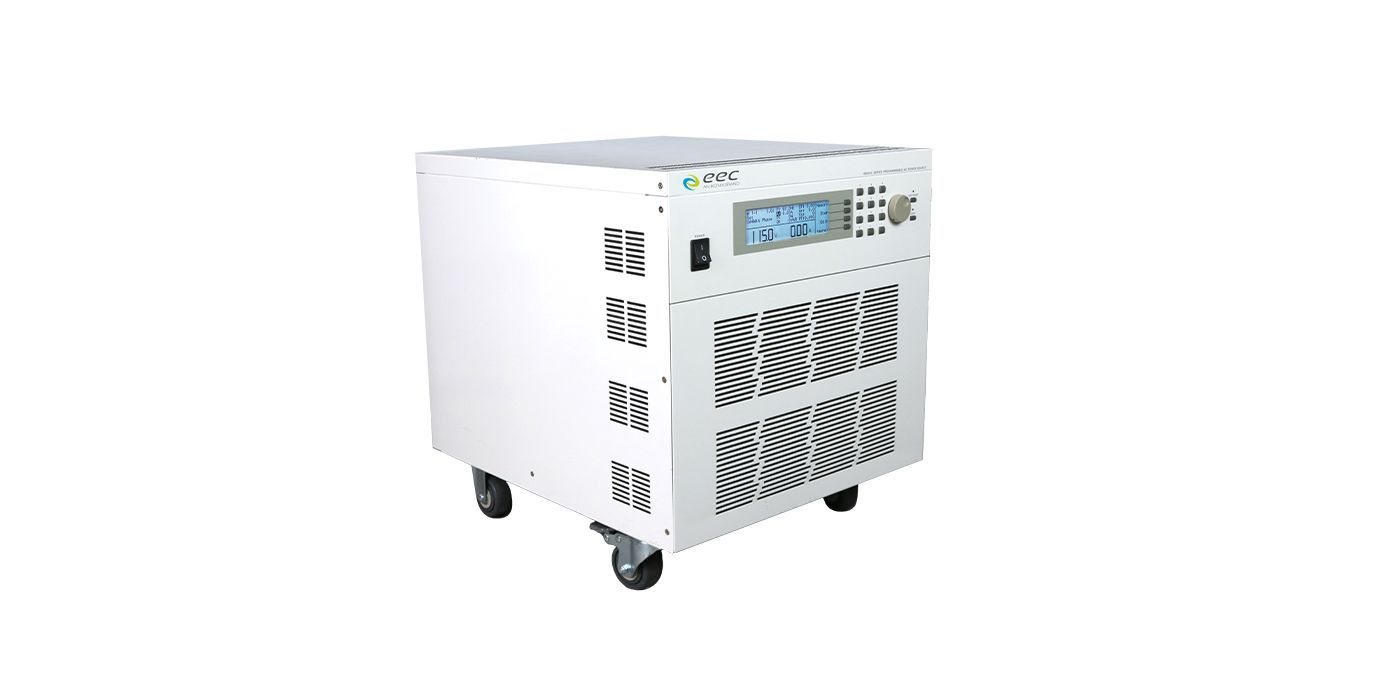

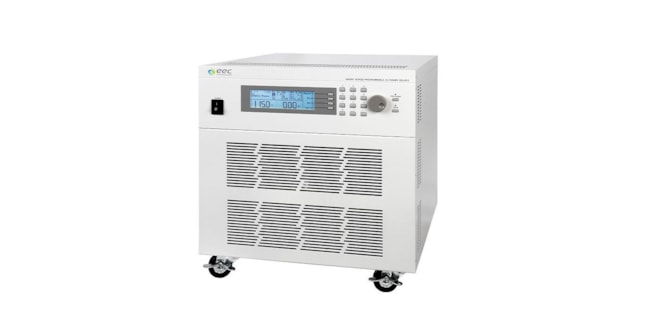

460XAC AC/DC Power Source

    • single/three phase AC/DC power supplies (switching between 1Ø and 3Ø mode)
    • output power 6 kVA
    • output voltage max. 300 V in single-phase configuration
    • output voltage max. 600 V in split phase arrangement
    • frequency range 40-1000 Hz
    • warranty: 5 years
    EEC
    Other parameters
    Price on request
    Cat. no: 460XAC.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    model
    performance
    current (Arms)
    at max. 110 V
    current (Arms)
    at max. 220 V
    460XAC 6 kVA 18,4/Ø 9,2/Ø

    in "Split phase" configuration according to model max. 27.6/55.2 A at max. 110 V or 13.8/27.6 A at max. 220 V

    • sinusoidal output signal shape
    • output voltage ranges 0-150 V and 0-300 V AC; 5-210 V and 5-420 V DC
    • communication interfaces USB and RS-232; can be replaced by LAN or GPIB
    • programmable start and end angle of the sine waveform
    • constant current mode (with Over Current Foldback function) with output voltage reduction
    • internal memory
    • possibility of simulating outages and transients
    • measurements of U, I, P (active/active/active), PF, CF
    • IVI drivers, free software download here
