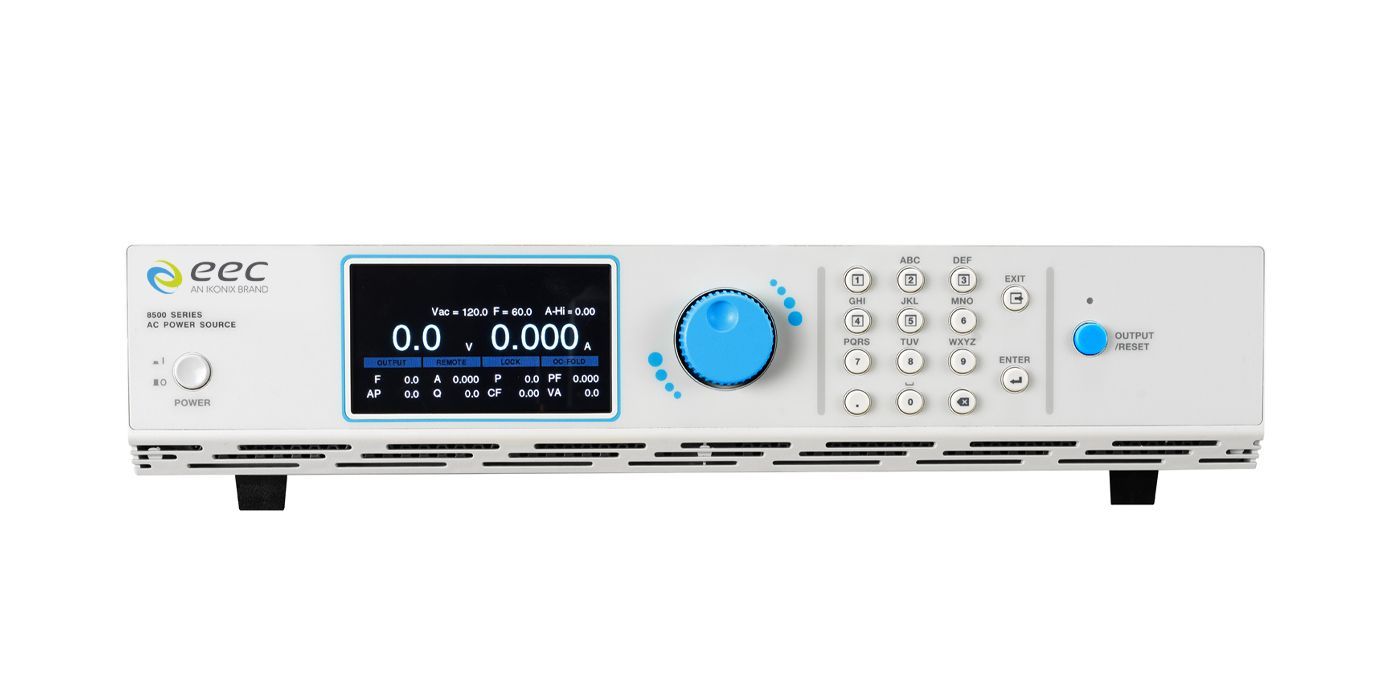

8520 Programmable AC Power Source

  • combined AC/DC power supply with three output modes (AC, DC, AC+DC)
  • single-phase output 0-310 VAC (L-N); 5-1200 Hz
  • two equipment levels (STANDARD x ADVANCED)
  • warranty: 5 years
EEC
Other parameters
Price on request
Cat. no: 8505.w
availability on request
Price on request
Cat. no: 8512.w
availability on request
Price on request
Cat. no: 8520w.
availability on request
Price on request
Cat. no: 8530.w
availability on request
Price on request
Cat. no: 8540.w
availability on request
Price on request
Cat. no: 8560.w
availability on request
more variants
Price on request

No item matches your selection.

Parameters and specifications

performance 2000 VA
voltage 0 - 310 VAC
max. current 20 A@100 V / 10 A@200 V
frequency 5 - 1200 Hz

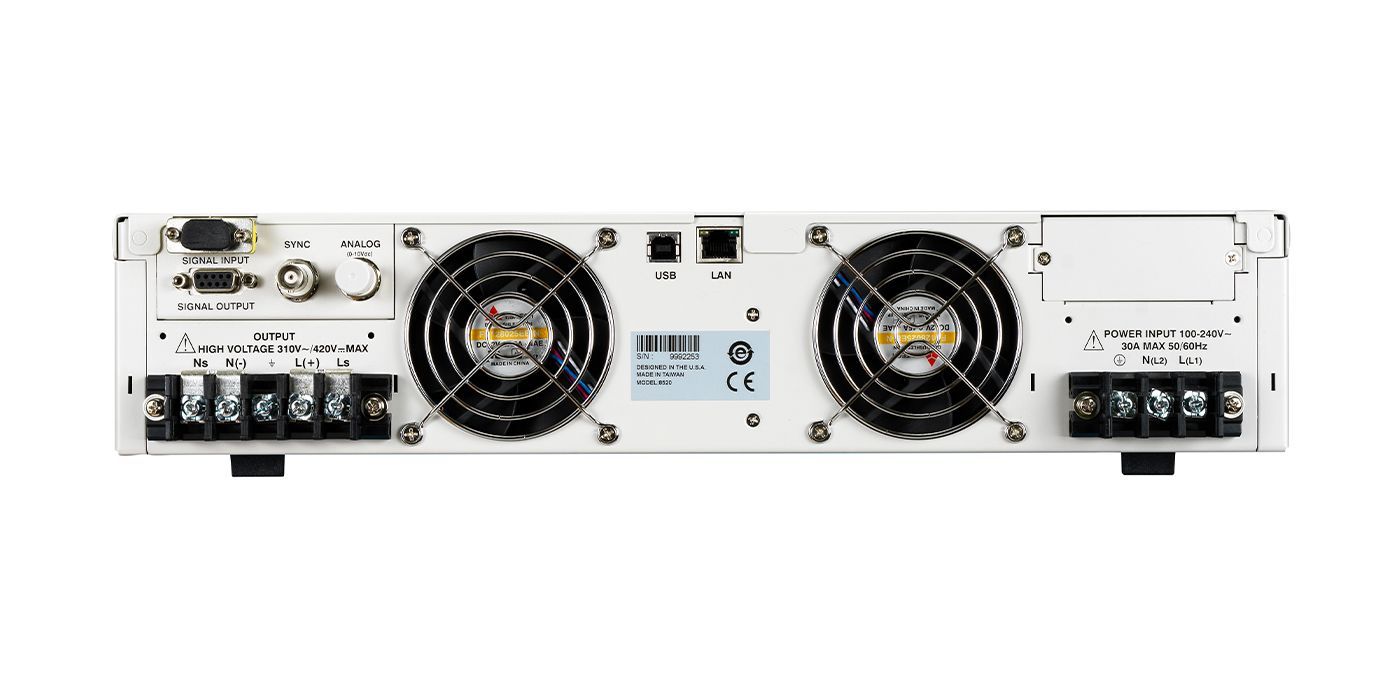

  • USB and LAN interfaces as standard, GPIB and RS-232 optional
  • PowerTRAC software available for free download on the manufacturer's website
  • ADVANCED version features preset Triangle/Square/Clipped sine waveforms and the option to add a DC component to the AC waveform; Step, List and Pulse mode, waveform database
  • memory with 14 preset most frequently used waveforms
INPUT MANUAL MODE STANDARD MODE ADVANCED MODE
manual control yes yes yes
PC interface: USB, LAN standard, GPIB optional   yes yes
compatibility with PowerTRAC software   yes yes
voltage, frequency, transients, DC signal distortion     yes
