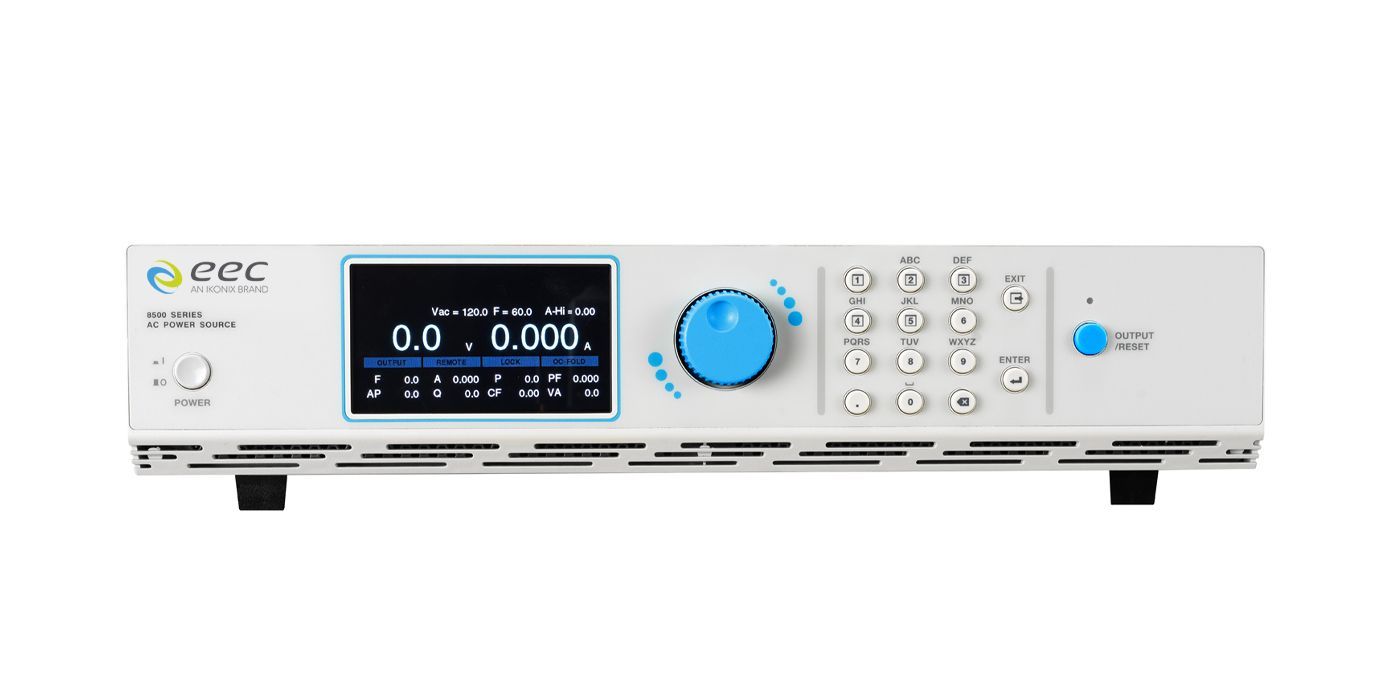

8530 Programmable AC Power Source
- combined AC/DC power supply with three output modes (AC, DC, AC+DC)
- single-phase output 0-310 VAC (L-N); 5-1200 Hz
- two equipment levels (STANDARD x ADVANCED)
- warranty: 5 years
Parameters and specifications
| performance | 3000 VA |
| voltage | 0 - 310 VAC |
| max. current | 30A @ 100V / 15A @ 200V |
| frequency | 5 - 1200 Hz |

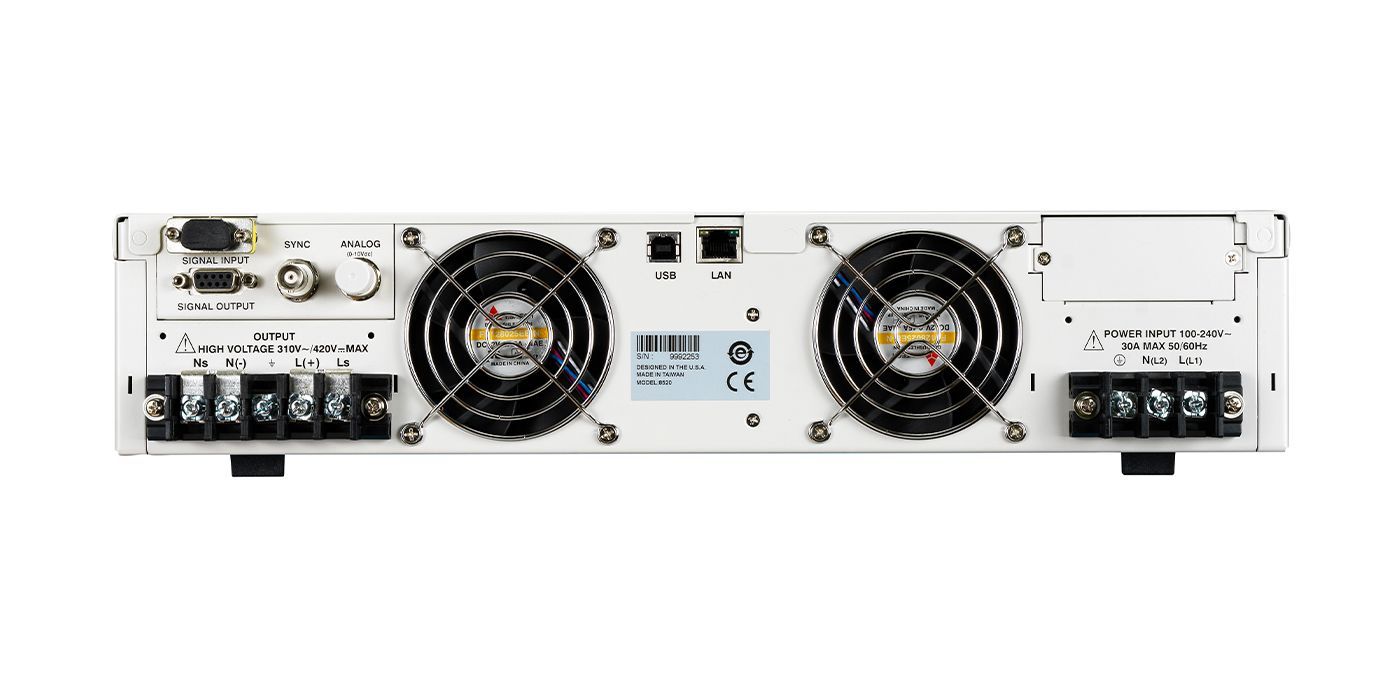

- USB and LAN interfaces included as standard, GPIB and RS-232 optional
- PowerTRAC software available for free download on the manufacturer's website
- ADVANCED version features preset Triangle/Square/Clipped sine waveforms and the ability to add a DC component to the AC waveform; Step, List and Pulse mode, waveform database
- memory with 14 preset most frequently used waveforms
| INPUT | MANUAL MODE | STANDARD MODE | ADVANCED MODE |
| manual control | yes | yes | yes |
| PC interface: USB, LAN standard, GPIB optional | yes | yes | |
| compatibility with PowerTRAC software | yes | yes | |
| voltage, frequency, transients, DC signal distortion | yes |
