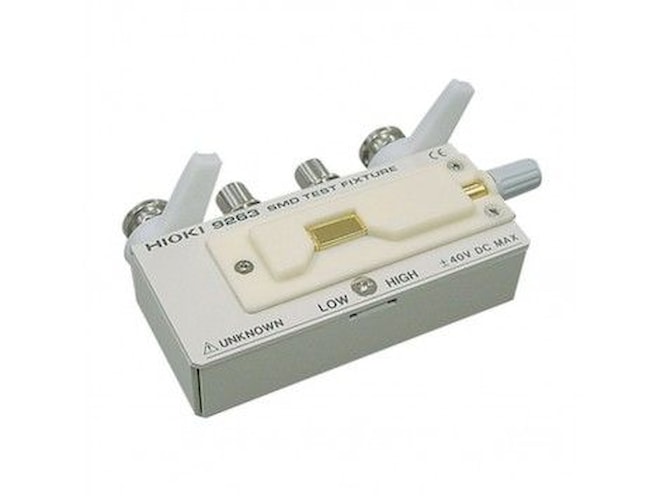

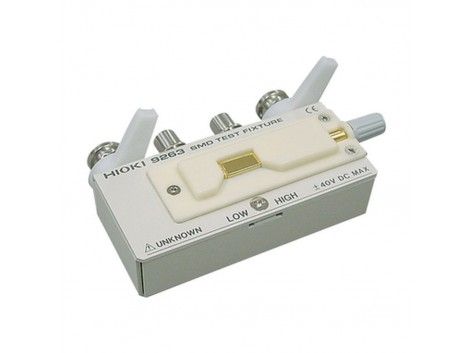

9263 Test Fixture

    • test fixture for precise measurement of surface-mount components (SMD) in conjunction with LCR meters
    • warranty: 3 years
    Hioki
    Other parameters
    €908.00
    €1,098.68 incl. VAT
    Cat. no: 9263
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    The fixture allows easy clamping of the tested sample using a rotary knob, ensuring reliable contact during measurement. It is designed to connect directly to the measurement terminals of compatible instruments, eliminating the need for additional cables.

    frequency range DC to 8 MHz
    sample dimensions 1 to 10 mm (0.04" to 0.39")
    connection type direct
