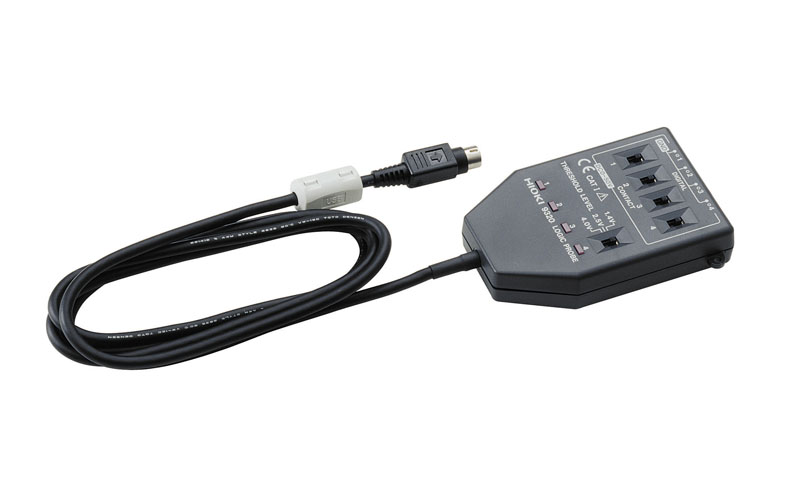

9320-01 Logic Probe

    • logic probe for Hioki HiCorders
    • detection of high and low levels in DC voltage signals or relay contact signals
    • warranty: 1 year
    Hioki
    Other parameters
    €438.00
    €529.98 incl. VAT
    Cat. no: 9320-01
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    channels 4
    input types digital or contact
    input resistance 1 MΩ (0 to +5 V), 500 kΩ (+5 to +50 V)
    threshold 1.4 V, 2.5 V, 4.0 V
    detectable pulse width ≥ 500 ns
    maximum input voltage 0 to +50 V DC
