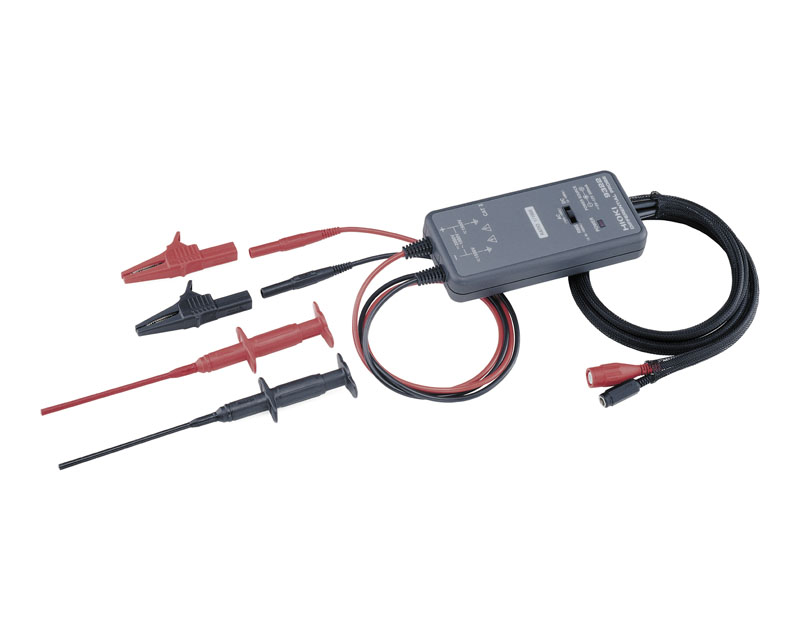

9322 Differential Probe

    • differential probe for measuring HV signals with Hioki HiCorders
    • warranty: 1 year
    Hioki
    Other parameters
    €778.00
    €941.38 incl. VAT
    Cat. no: 9322
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    measurement modes DC mode: monitoring of high voltage DC signals (DC up to 10 MHz ±3 dB)
    AC mode: noise and transient detection in power networks (1 kHz to 10 MHz ±3 dB)
    RMS mode: measurement of the rms value of the AC voltage (DC, 40 Hz to 100 kHz)
    maximum input voltage DC: 2000 V
    AC: 1000 V
    maximum nominal voltage with respect to ground 1000 V AC/DC (CAT II) when used with L9243 grabber clips
    1000 V AC/DC (CAT II), 600 V AC/DC (CAT III) when used with alligator clips
    bandwidth 10 MHz
