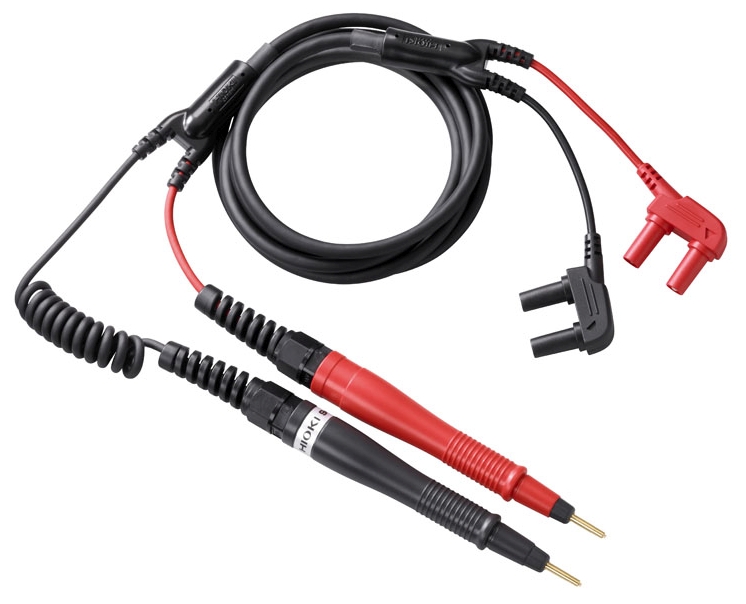

9465-10 Pin Type Lead
- four-wire probe for BT3554-50, BT3554-51, BT3554-52 battery testers and RM3548 resistance meter
- 9465-90 interchangeable tips with retractable centre (contacting perpendicular to the measuring point required)
- warranty: 1 year
Parameters and specifications
The HIOKI 9465-10 test lead with straight pogo-pin tips is designed for use with the portable BT3554 battery testers and RM3548 resistance meters. Rated for a maximum voltage of 60 VDC, it has a total length of approximately 1900 mm, providing ample flexibility to connect the instrument to the test object, even in hard-to-reach areas.
The gold-plated pogo-pin tips, with a coaxial structure featuring a SENSE terminal at the center and a SOURCE terminal on the outer edge, have a diameter of just 2.9 mm. This design makes them ideal for measurements on battery contacts with very limited accessible surface and allows measurements through an inspection hole made in a battery connector cover without requiring the removal of the cover.
The probe tips of the cable are replaceable (replacement tip 9465-90), ensuring a long service life.
