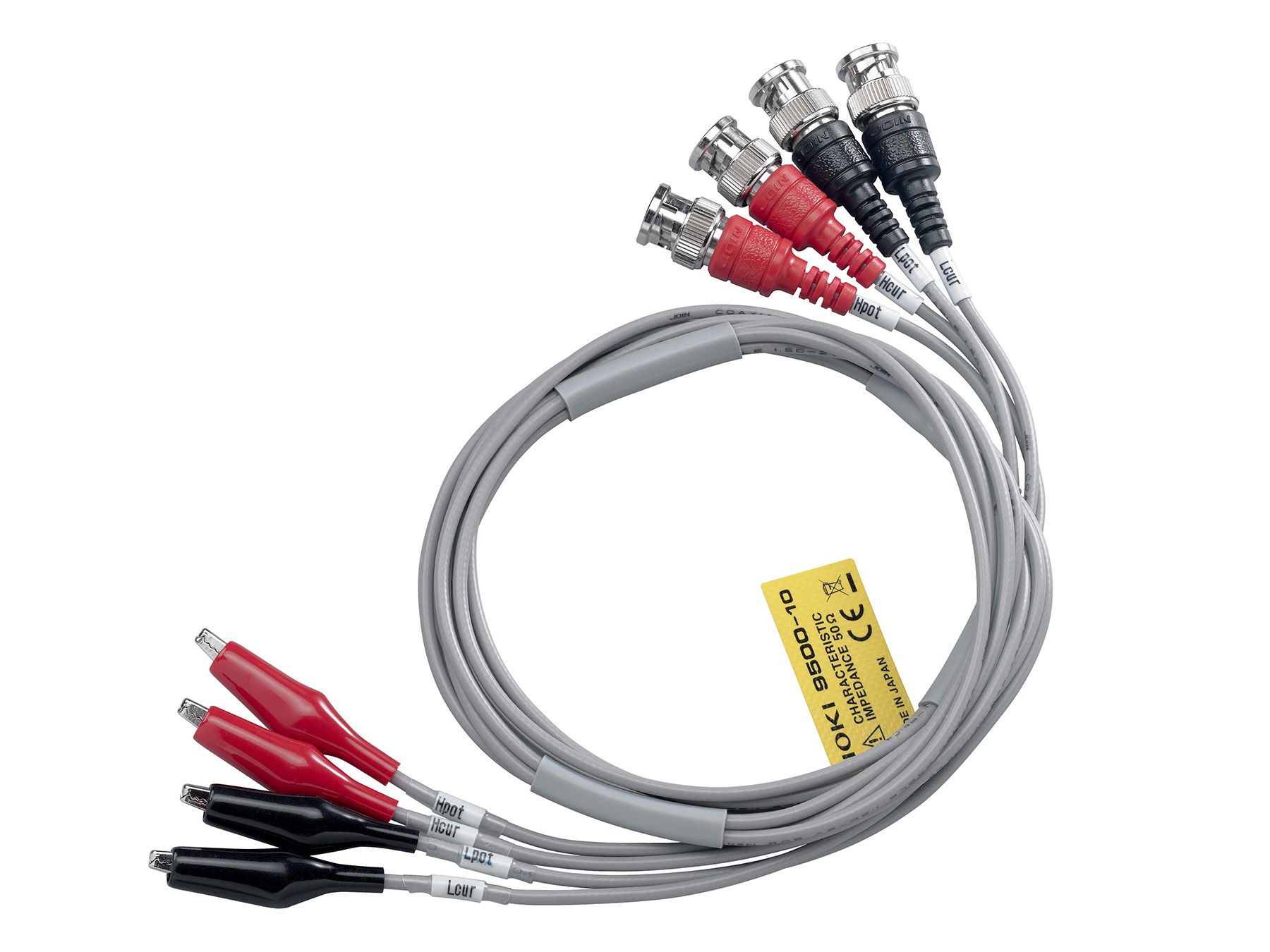

9500-10 4-Terminal Probe

    • four-wire measurement probe for measuring impedance parameters using LCR meters and impedance analyzers
    • warranty: 1 year
    Hioki
    Other parameters
    €338.00
    €408.98 incl. VAT
    Cat. no: 9500-10
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    connection type

    4 BNC connectors on the instrument side

    4 alligator clips on the device under test
    cable length 1 m
    frequency range DC to 200 kHz
    cable impedance 50 Ω
    maximum voltage ±40 V DC
    maximum current 1 A peak (measurement signal + bias current)
    measured wire diameter 0.3 to 2 mm
