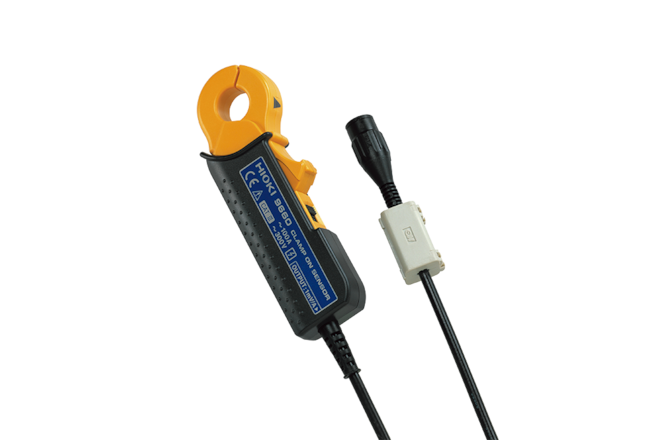

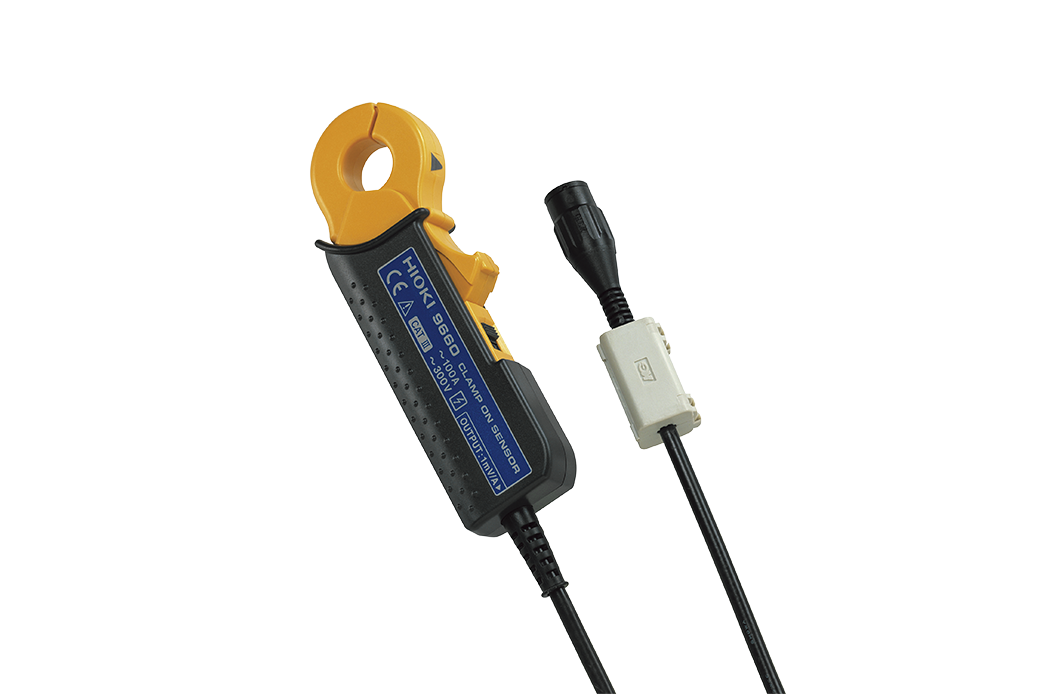

9660 Clamp On Sensor

    • clamp on sensor for measuring load currents up to 100 A AC
    • basic accuracy +/-0.3%rdg. +/-0.02%f.s.
    • 1 year warranty
    Hioki
    Other parameters
    €248.00
    €300.08 incl. VAT
    Cat. no: 9660
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    frequency 40 Hz to 5 kHz
    phase accuracy ±1° (45 Hz to 5 kHz)
    output 1 mV AC/ A
    max. diameter of measuring wire 15 mm
    category CAT III 300V
    conector BNC
