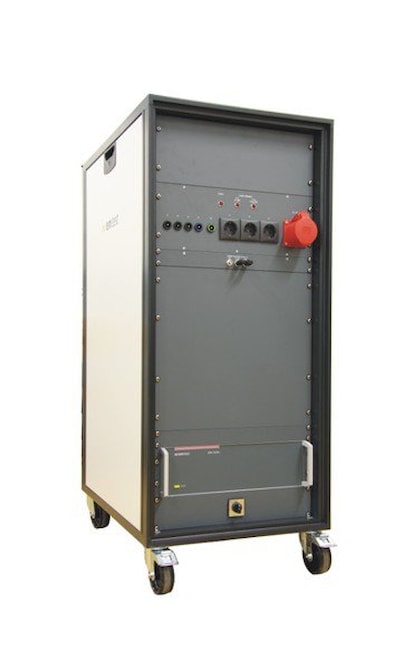

AIF 503N Series Three-Phase Flicker Impedance

    • three-phase impedance for flicker testing up to 75 A
    • non-saturating inductors
    • automatic overcurrent protection
    • LED status indication
    • remotely controlled by DPA 503N
    • warranty: 2 years
    Ametek Compliance Test Solutions
    Other parameters
    Price on request
    Cat. no: AIF503NSeries.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    mains voltage 3 x 400 V
    mains current Up to 75 A per phase (depending on model)
    impedance values according to IEC EN 61000-3-3 and IEC/EN 61000-3-11
    • The three-phase impedance flicker AIF 503N series, with rated currents from 16 A to 75 A per phase, offers two different impedance values.
    • Zref is used as the flicker impedance according to IEC/EN 61000-3-3 and specified in IEC 60726.
    • Ztest is used for equipment intended to be connected to a public low voltage distribution system having a supply capacity of 100 A or more as specified in IEC/EN 61000-3-11.
    • Standards: EN 61000-3-11, EN 61000-3-3, IEC 60725, IEC 61000-3-11, IEC 61000-3-3, JIS C 61000-3-2.
