Asterion DC ASM Series 3-Channel Programmable DC Power Supplies

    • high power 3 channel programmable DC power supply
    • voltage: 40 V - 600 V
    • current: 2.8 A - 42 A
    • power: 3x 1700 W
    • warranty: 5 years
    Sorensen
    Other parameters
    Price on request
    Cat. no: ASM.w
    availability on request

    No item matches your selection.

    Parameters and specifications

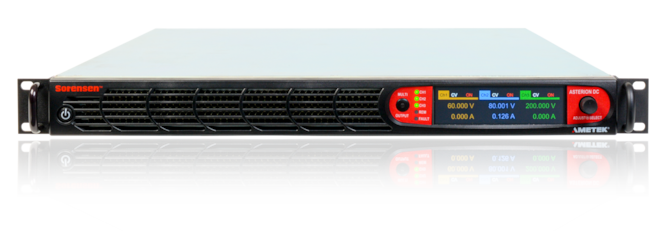

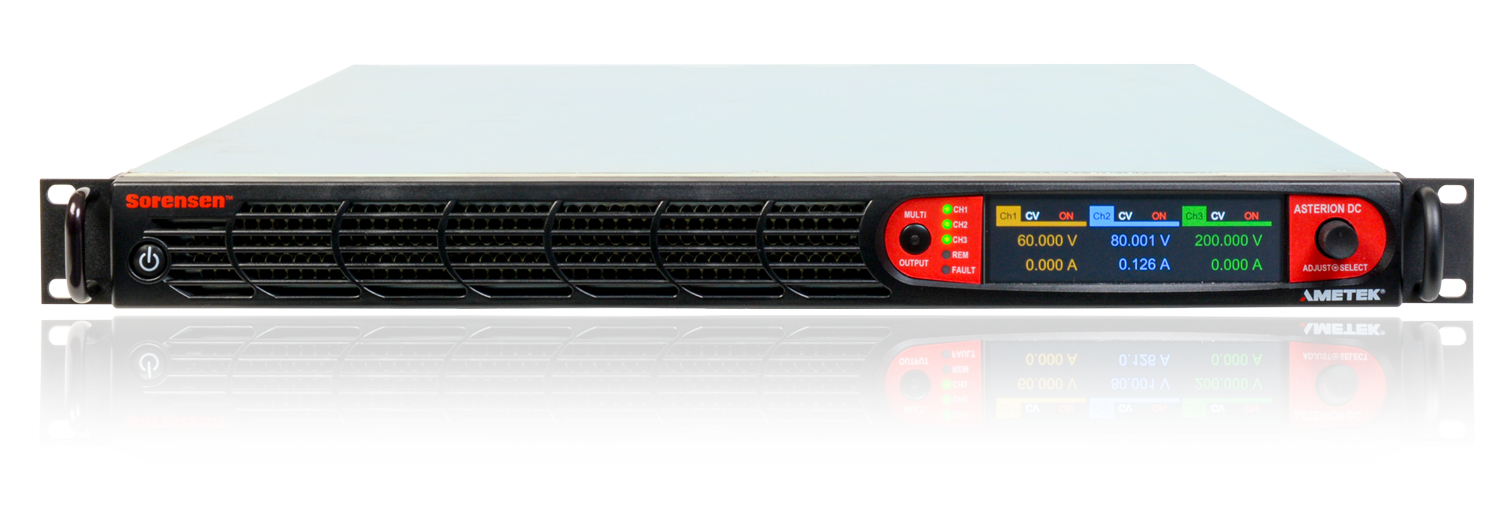

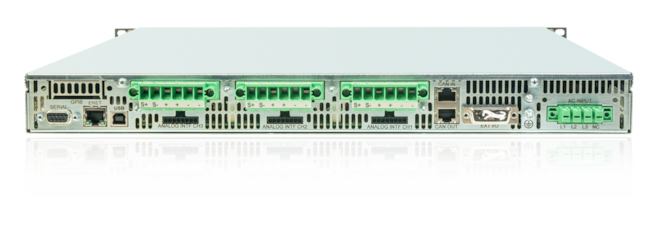

    The ASM series offers up to 3 independently controlled and isolated DC outputs in a 1U chassis. Programming and remote access control is provided via the Virtual Panels™ graphical user interface and intuitive front panel touch screen operation. In addition, the instrument can be controlled via standard LXI Ethernet, USB and RS232 control interfaces, as well as via an optional GPIB control interface or stand-alone analog programming.

    model voltage current power
    ASM40-42 40 V 42 A 1680 W
    ASM60-28 60V 28 A 1680 W
    ASM80-22 80 V 22 A 1700 W
    ASM100-17 100 V 17 A 1700 W
    ASM150-12 150 V 12 A 1700 W
    ASM200-9 200 V 9 A 1700 W
    ASM300-6 300 V 6 A 1700 W
    ASM400-4.3 400 V 4,3 A 1700 W
    ASM600-2.8 600V 2,8 A 1700 W
