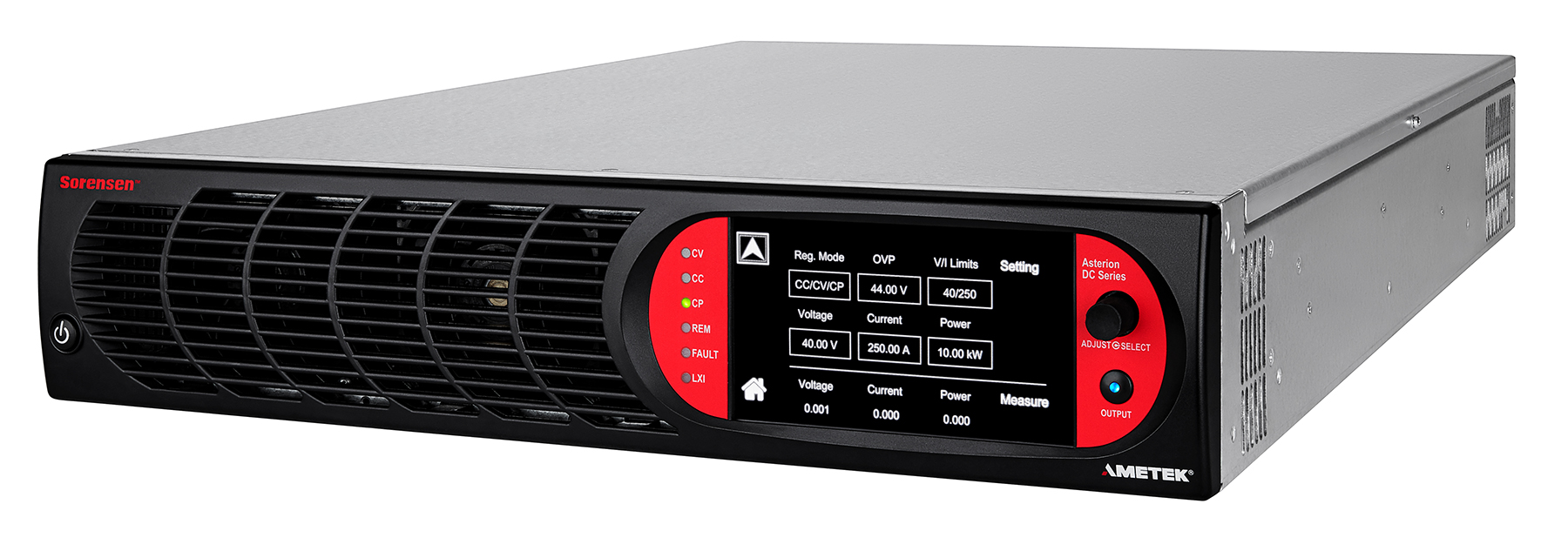

Asterion DC Power Supply Series

    • DC power supplies Sorensen
    • power variants 1,7/3,4/5 kW in 1U and 10 kW in 2U chassis
    • two design alternatives: Fixed Range and Autoranging
    • parallel connection option for higher current/power
    • touch screen display on the front panel
    • Virtual Panels SW (free download here)
    • USB, RS-232 and LAN(LXI) interfaces standard; GPIB and EtherCAT optional
    • 5 year warranty
    Ametek Programmable Power
    Other parameters
    Price on request
    Cat. no: ASTDC.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    Offered power vs max. voltage (max. current 250 A for 10 kW models):

    max. power fixed range autoranging
    1.7 kW

    0-40 V

    0-60 V

    0-100 V

    0-150 V

    0-200 V

    0-300 V

    0-400 V

    0-40 V

    0-60 V

    0-200 V

    0-400 V

    3.4 kW
    5 kW
    10 kW

    Downloads and links
