ATA-1372A Wide Band Amplifier

    • broadband amplifier
    • maximum output voltage: 70 Vp-p (±35 Vp)
    • bandwidth (-3dB): DC~3 MHz
    • warranty: 1 year
    Aigtek
    Other parameters
    Price on request
    Cat. no: ATA1372A
    availability on request

    No item matches your selection.

    Parameters and specifications

    maximum output voltage 70 Vp-p (±35 Vp)
    maximum output current 2 Ap
    bandwidth (-3dB) DC~3 MHz

    The ATA-1372A is an ideal single channel wideband amplifier that can amplify both AC and DC signals. The maximum differential output voltage of 70 Vp-p (±35 Vp), output peak current of 2 A, suitable for use with a conventional signal generator, offers perfect signal amplification.

    Input

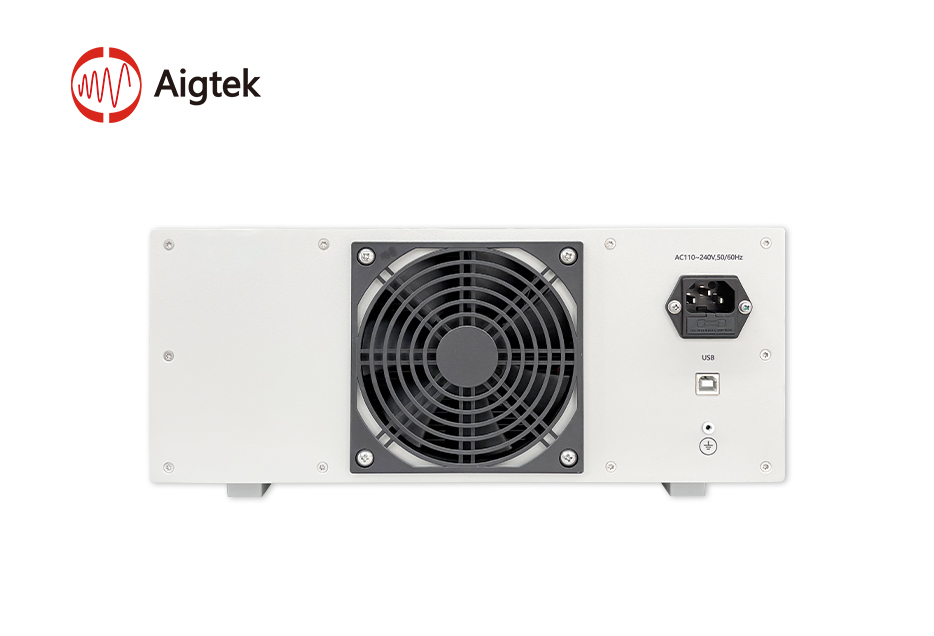

    Input is BNC interface on the rear panel, input signal amplitude 0~10Vp-p (MAX), input resistance 50 Ω and 10 KΩ.

    Output

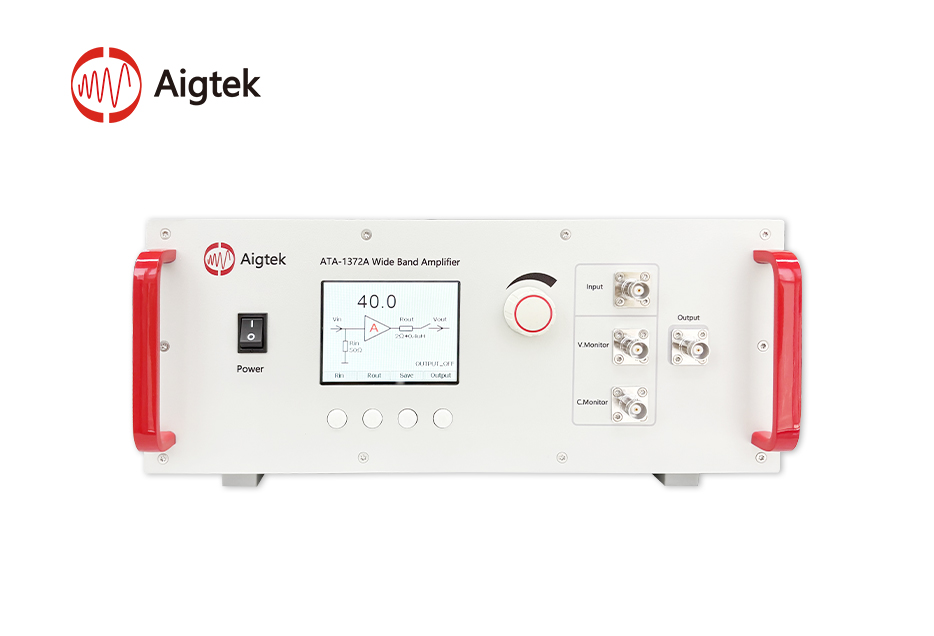

    The output is a BNC interface on the front panel (70Vpp, 2Ap).

    LCD displays

    The ATA-1372A is equipped with an LCD display for dynamic display of device status and parameters, the control interface is clear, concise and easy to understand at a glance.

    Voltage gain

    The voltage gain is digitally adjustable from x0 to x40, with two modes: coarse adjustment (1 step) and fine adjustment (0.1 step).

    Areas of application

    • educational experiments
    • measurement of the magnetization characteristics (B-H curve) of magnetic materials
    • sonar system
    • ultrasonic test
    • injection of EMC signals
