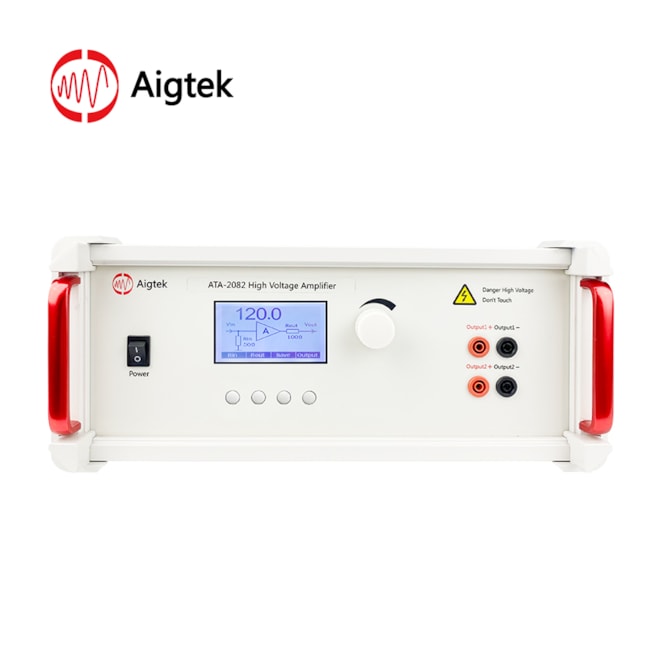

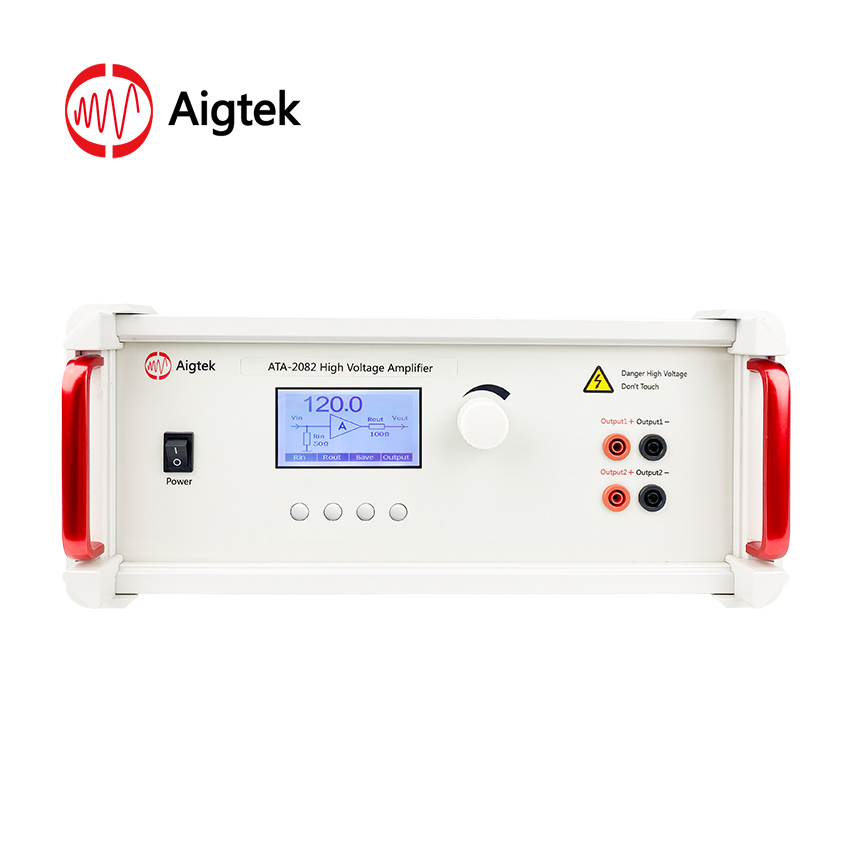

ATA-2082 High Voltage Amplifier

    • two channel high voltage amplifier
    • maximum output voltage: 800 Vp-p (±400 Vp)
    • bandwidth (-3dB): DC~200 kHz
    • warranty: 3 years
    Aigtek
    Other parameters
    Price on request
    Cat. no: ATA-2082.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    maximum output voltage 800 Vp-p (±400 Vp)
    maximum output current 40 mAp
    bandwidth (-3dB) DC~200 kHz
    slew rate 400 V/μs

    The ATA-2082 is an ideal dual channel high voltage amplifier that can amplify both AC and DC signals. The maximum output voltage is 800 Vp-p (±400 Vp); the output peak current of 40 mA, equivalent to a conventional signal generator, realizes perfect signal amplification.

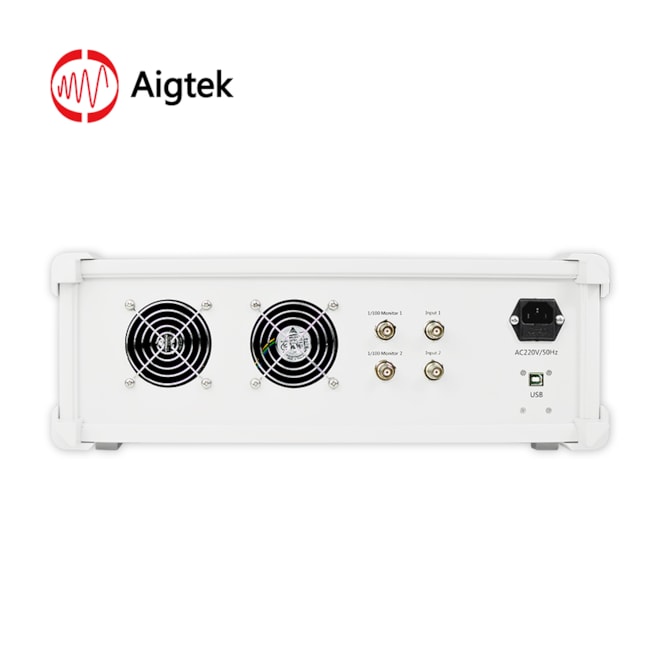

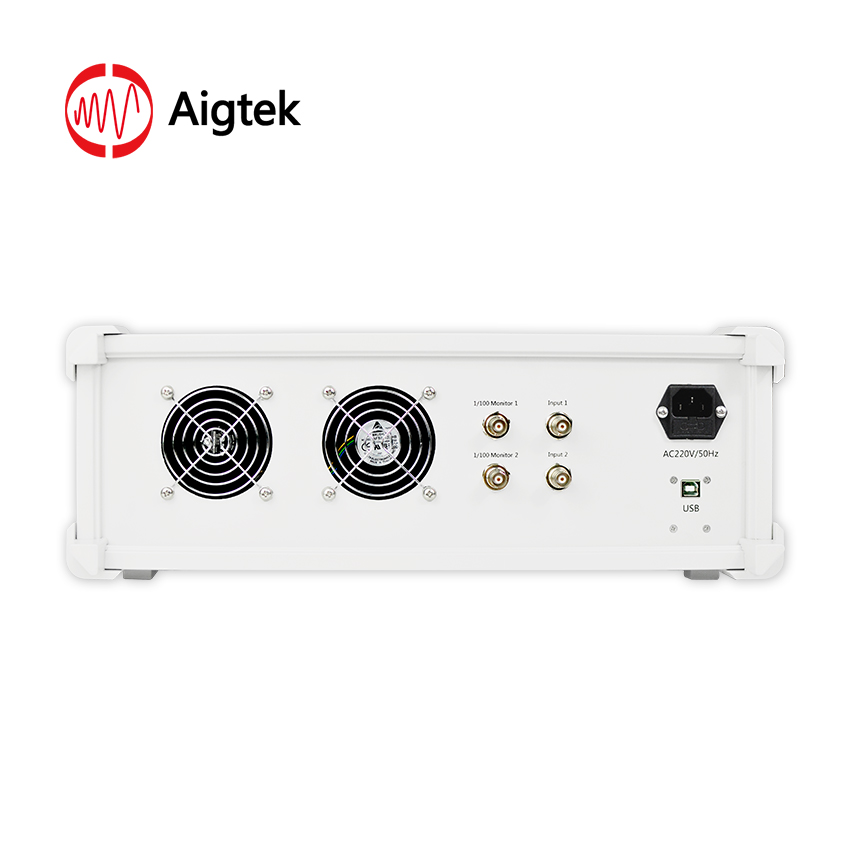

    Input

    Input is with BNC interface, input resistance is 50 Ω and 5 kΩ, offers perfect matching with high and low internal resistance signal source.

    Output

    Output is a 4mm banana, maximum output voltage is 800 Vp-p (±400 Vp), maximum output current is 40 mAp.

    LCD displays

    The ATA-2082 is equipped with an LCD display for dynamic display of device status and parameters, the control interface is clear, concise and easy to understand at a glance.

    Voltage gain

    The voltage gain of the ATA-2082 high voltage amplifier is variable (x0-120, with 0.1 step), the gain is displayed on the LCD display, allowing you to quickly adjust to the desired voltage.

    Monitor

    The monitor port is a 1/100 output port, the monitor port is a BNC connector that can be connected to an oscilloscope to monitor the output voltage in real time.
