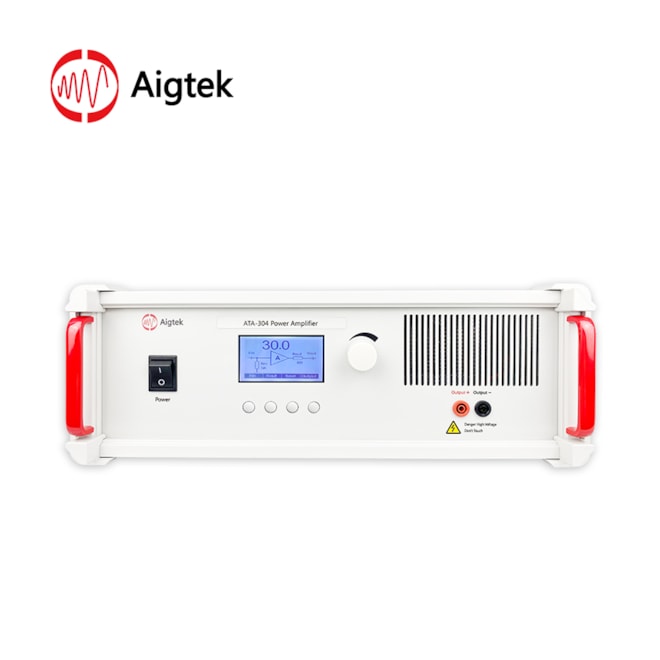

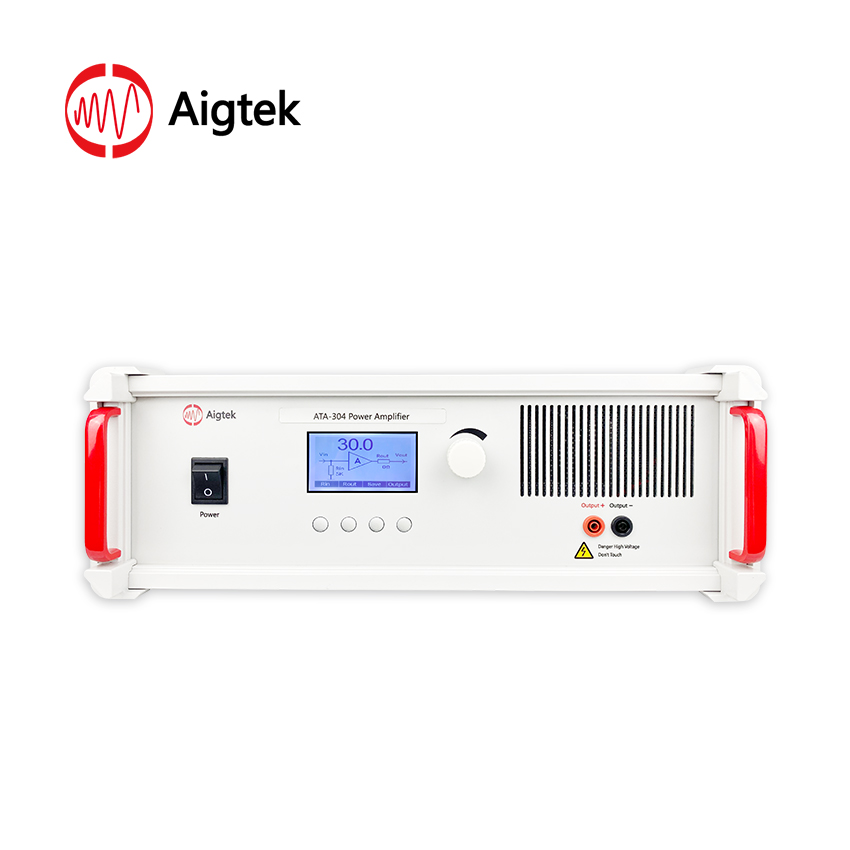

ATA-304 Power Amplifier

    • power amplifier
    • maximum output voltage: 90 Vp-p (±45 Vp)
    • bandwidth (-3dB): up to DC~30 kHz
    • warranty: 3 years
    Aigtek
    Other parameters
    Price on request
    Cat. no: ATA-304.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    maximum output voltage 90 Vp-p (±45 Vp)
    maximum output current 8 Ap
    bandwidth (-3dB) up to DC~30 kHz
    slew rate 10 V/μs

    The ATA-304 is an ideal power amplifier that can amplify both AC and DC signals. The maximum output power is 360 Wp. Voltage gain and DC bias are finely adjustable, providing customers with a wealth of testing options.

    Access

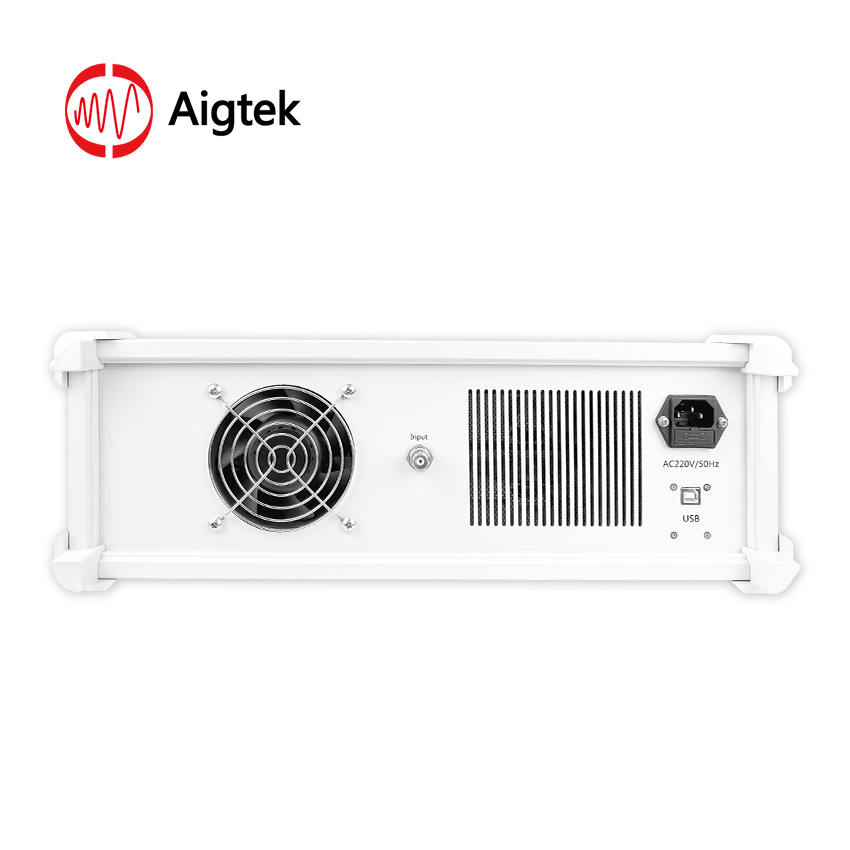

    The input is a BNC interface, the input resistance is 5 KΩ.

    Output

    The output is a 4mm banana and the maximum output voltage is 90 Vp-p (±45 Vp), the output current is 8 Ap.

    LCD displays

    The ATA-304 is equipped with an LCD display for dynamic display of device status and parameters, the control interface is clear, concise and easy to understand at a glance.

    Voltage gain

    The voltage gain of the ATA-304 power amplifier is variable x0~30 (0.1 step / 1 step), the gain is displayed on the LCD display, allowing you to quickly adjust to the desired voltage.

    Scope of application

    • used for MEMS testing
    • used for ultrasonic measurements
    • used for electromagnetic field control
