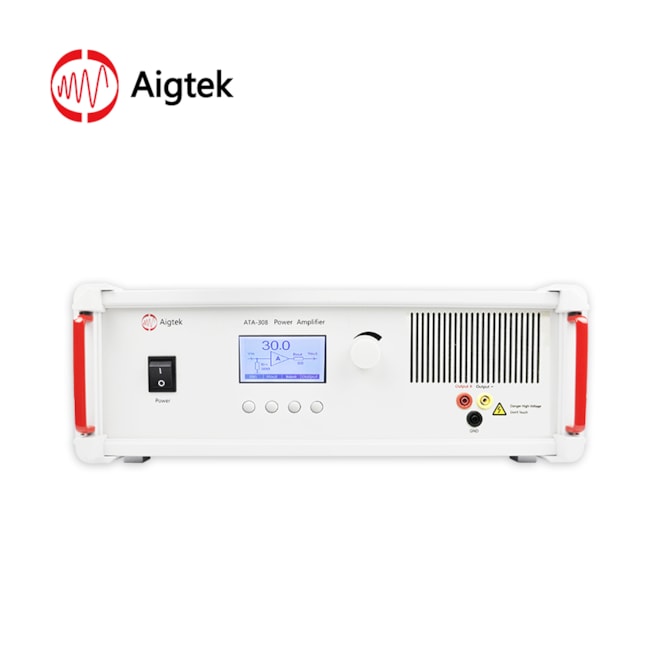

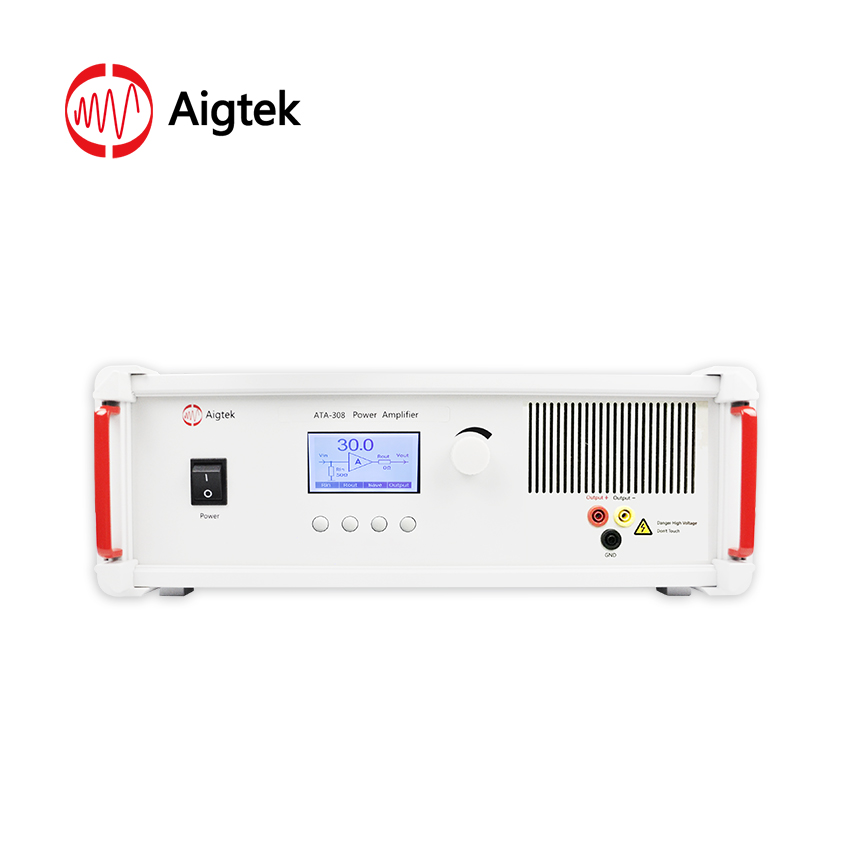

ATA-308 Power Amplifier

    • power amplifier
    • maximum output voltage: 180 Vp-p (±90 Vp)
    • bandwidth (-3dB): up to DC~30 kHz
    • warranty: 3 years
    Aigtek
    Other parameters
    Price on request
    Cat. no: ATA-308.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    maximum output voltage 180 Vp-p (±90 Vp)
    maximum output current 8 Ap
    bandwidth (-3dB) up to DC~30 kHz
    slew rate 20 V/μs

    The ATA-308 is an ideal power amplifier that can amplify both AC and DC signals. The maximum output power is 720 Wp. Voltage gain and DC bias are finely adjustable, providing customers with a wealth of testing options.

    Access

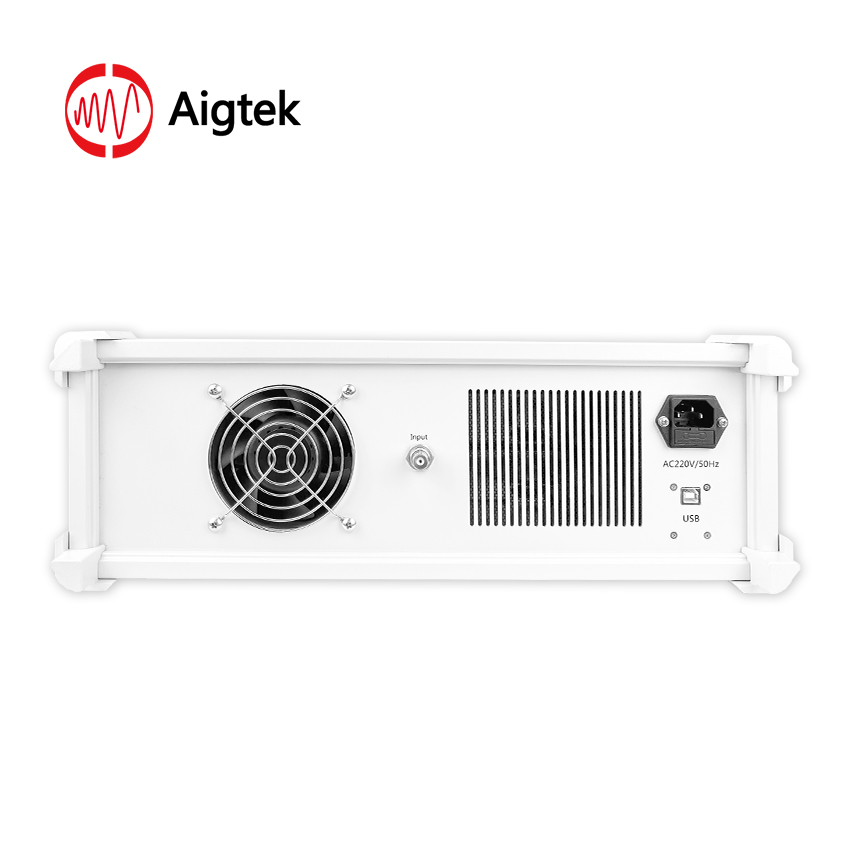

    The input is a BNC interface, the input resistance is 5KΩ.

    Output

    The output is a 4mm banana and the maximum output voltage is 180Vp-p (±90Vp), the output current is 8Ap.

    LCD displays

    ATA-308 is equipped with LCD display for dynamic display of device status and parameters, the control interface is clear, concise and easy to understand at a glance.

    Voltage gain

    The voltage gain of the ATA-308 power amplifier is variable x0~60 (0.1 step / 1 step), the gain is displayed on the LCD display, allowing you to quickly adjust to the desired voltage.

    Scope of application

    • used for MEMS testing
    • used for ultrasonic measurements
    • used for electromagnetic field control
