ATA-4051 High Voltage Power Amplifier

    • high voltage amplifier
    • maximum output voltage: 310 Vp-p (±155 Vp)
    • bandwidth (-3dB): up to DC~500 kHz
    • warranty: 3 years
    Aigtek
    Other parameters
    Price on request
    Cat. no: ATA-4051.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    maximum output voltage 310 Vp-p (±155 Vp)
    maximum output current 1 Arms
    bandwidth (-3dB) up to DC~500 kHz
    slew rate 400 V/μs

    The ATA-4051 is an ideal single channel high voltage amplifier that can amplify both AC and DC signals. The maximum output voltage is 310 Vp-p (±155 Vp), and the output peak current of 1 Arms, suitable for use with a conventional signal generator, offers perfect signal amplification.

    Input

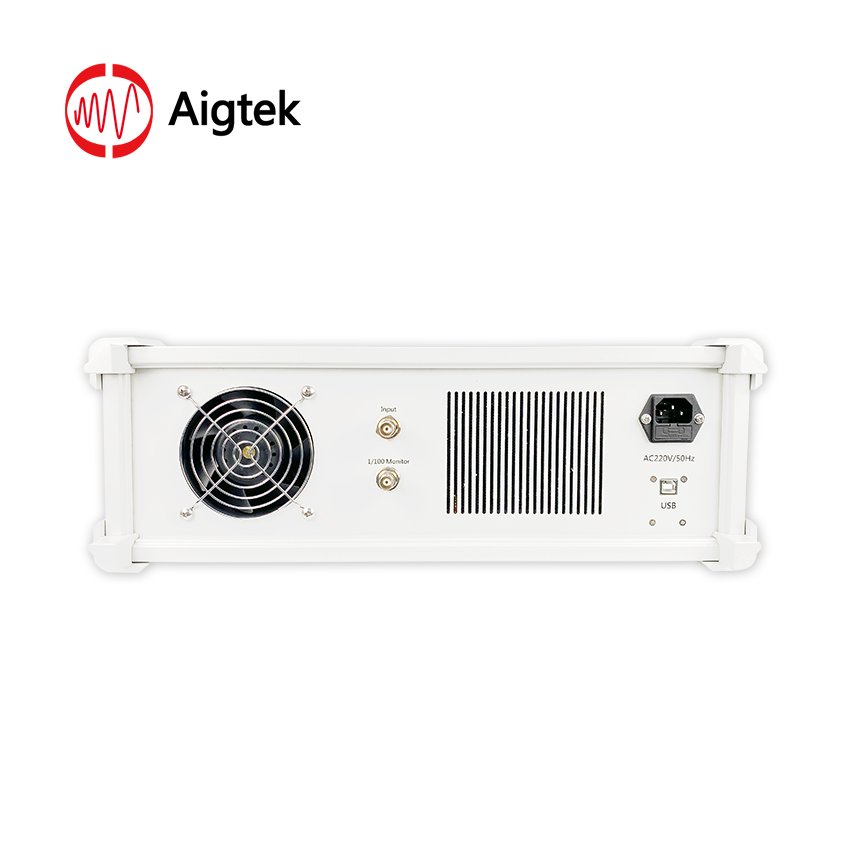

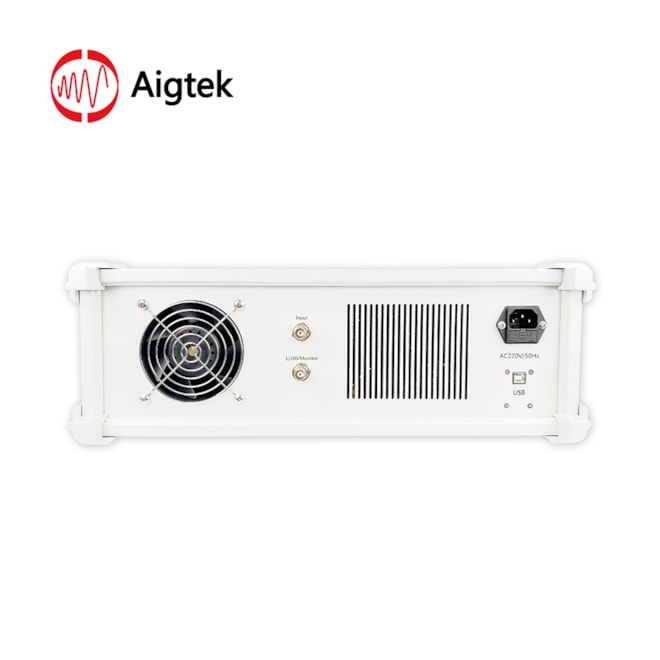

    Input is with BNC interface, input resistance is 50 Ω and 5 kΩ, perfect matching with high/low internal resistance signal source.

    Output

    The output is a 4mm banana and the maximum output voltage is 310 Vp-p (±155 Vp), the maximum output current is 1 Arms.

    LCD displays

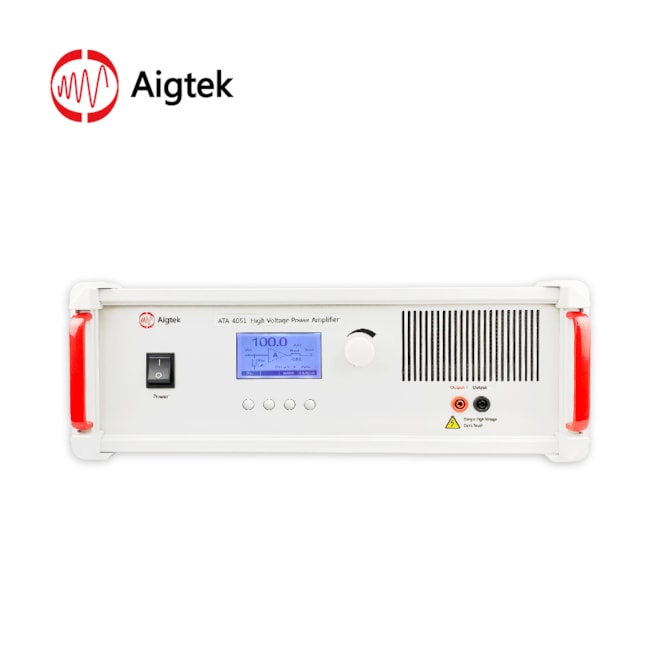

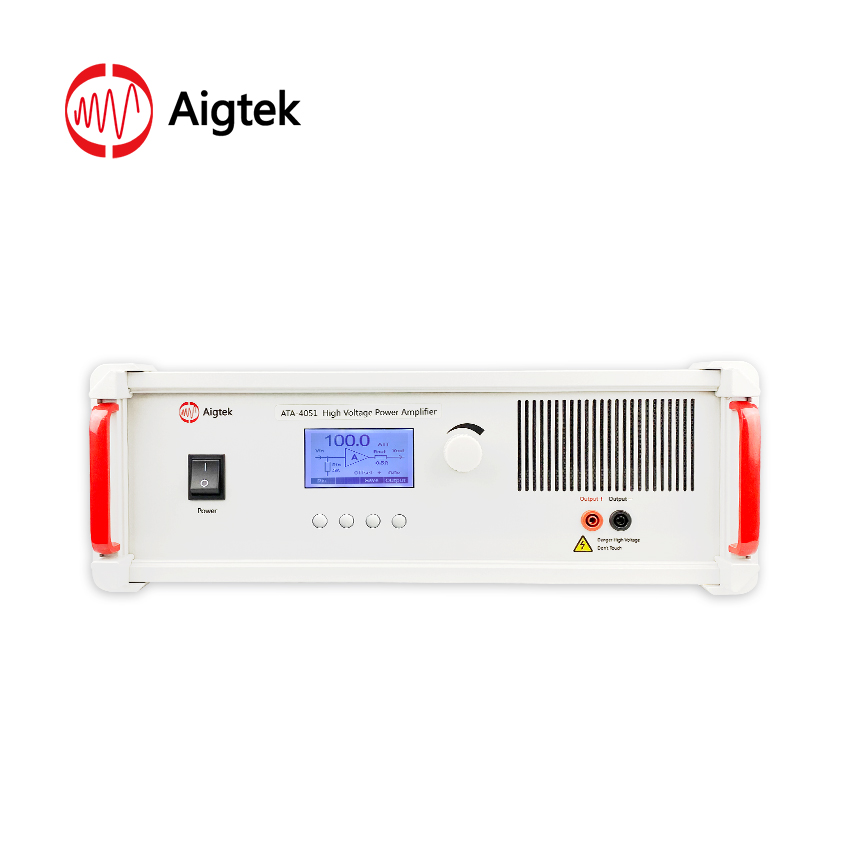

    The ATA-4051 is equipped with an LCD display for dynamic display of device status and parameters, the control interface is clear, concise and easy to understand at a glance.

    Voltage gain

    The voltage gain of the ATA-4051 power amplifier is variable x0~100 (step 0.1), the gain is displayed on the LCD display, allowing you to quickly adjust to the desired voltage.

    Monitor

    The monitor port is a 1/100 output port, the monitor port is a BNC connector that can be connected to an oscilloscope to monitor the output voltage in real time.
