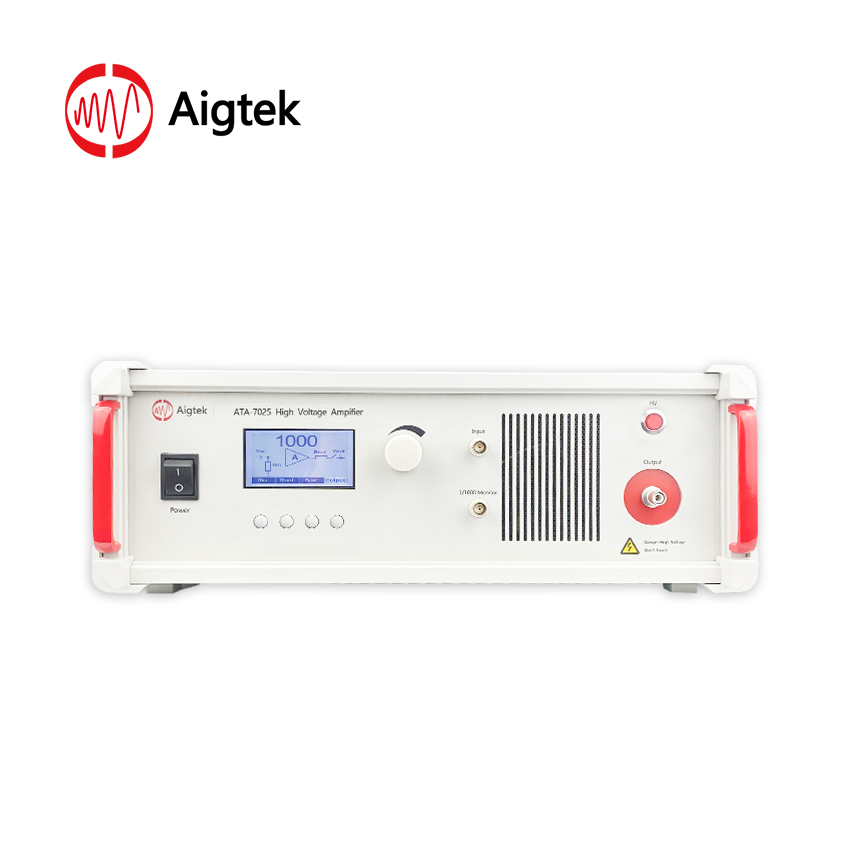

ATA-7025 High Voltage Amplifier

The ATA-7025 is an ideal single channel high voltage amplifier that can amplify both AC and DC signals. Maximum output voltage 5 kVp-p (±2.5 kVp); output peak current 30 mAp, suitable for use with a conventional signal generator, offers perfect signal amplification.

Input
The input is a BNC interface, the input resistance is 10 kΩ.

Output
Output interface is HF connector SHV, maximum output voltage is 5kvp-p (±2.5kvp), maximum output current is 30mAp.

LCD display
ATA-7025 is equipped with LCD display for dynamic display of device status and parameters, the control interface is clear, concise and easy to understand at a glance.

Voltage gain
The voltage gain can be adjusted in the range of 0~1000 times (1 step/10 steps). Combined with the gain display on the LCD panel, the desired voltage value can be quickly set.

Monitor
The output monitoring voltage goes through a 1/1000 divider, the port connector is BNC, which can be connected to an oscilloscope to monitor the output voltage in real time.
