ATA-L6 Power Amplifier

  • single channel power amplifier
  • overload and overtemperature protection
  • maximum output voltage: 1020 Vrms
  • bandwidth (-3dB): 200 Hz~120 kHz
  • warranty: 3 years
Aigtek
Other parameters
Price on request
Cat. no: ATA-L6.w
availability on request

No item matches your selection.

Parameters and specifications

maximum output voltage 1020 Vrms
bandwidth (-3dB) 200 Hz~120 kHz
input voltage at full power 1 Vrms (1 kHz)
maximum output power 600 VA

The ATA-L6 is an ideal single channel power amplifier. Maximum output voltage 1020 Vrms ; maximum output power 600VA, matched with the main signal generator, realizes perfect signal amplification.

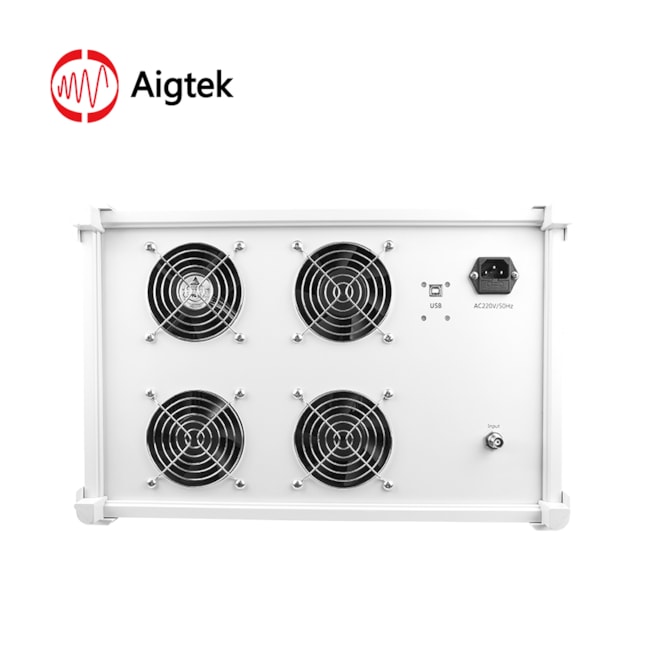

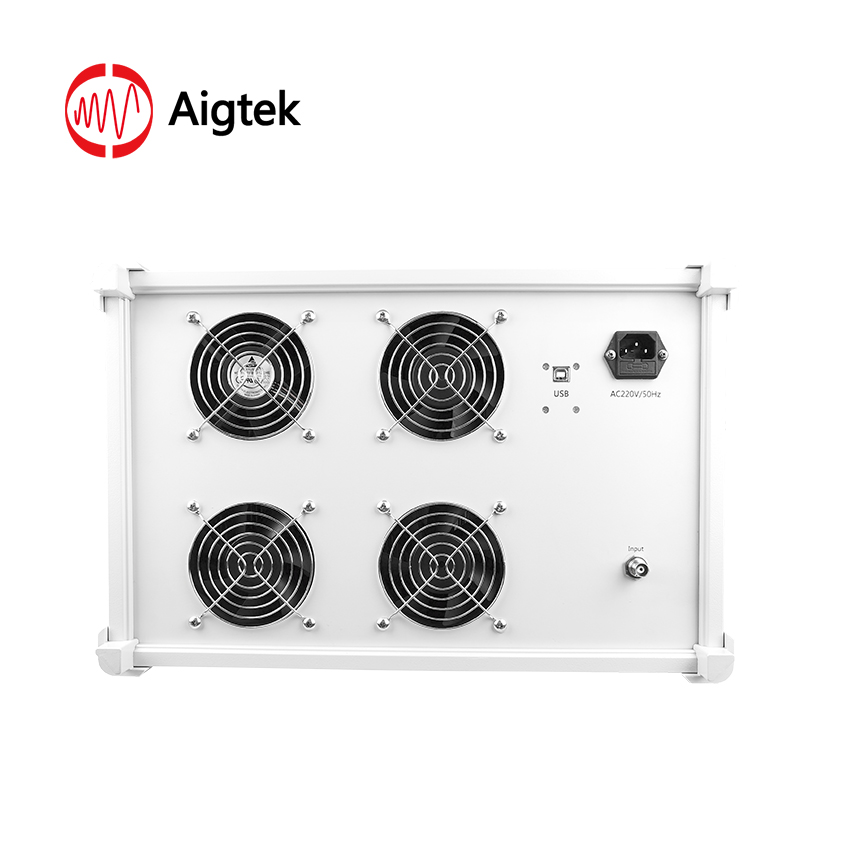

Input

Input is BNC interface, single-sided input.

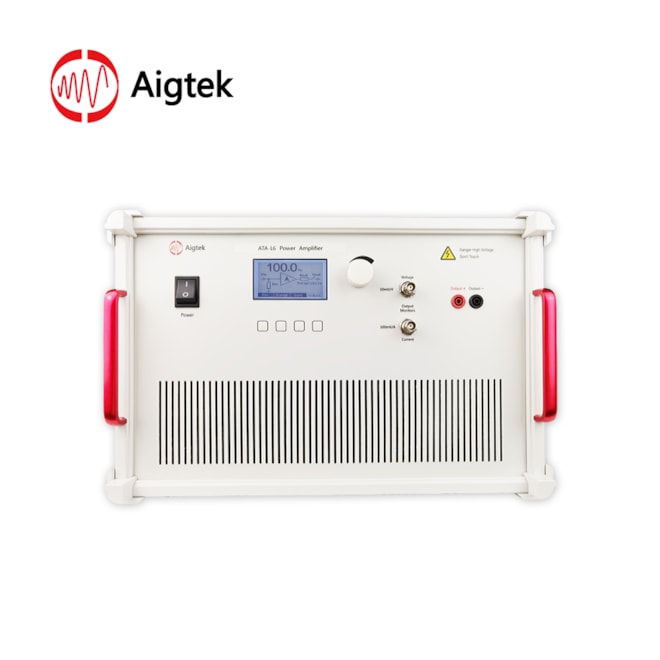

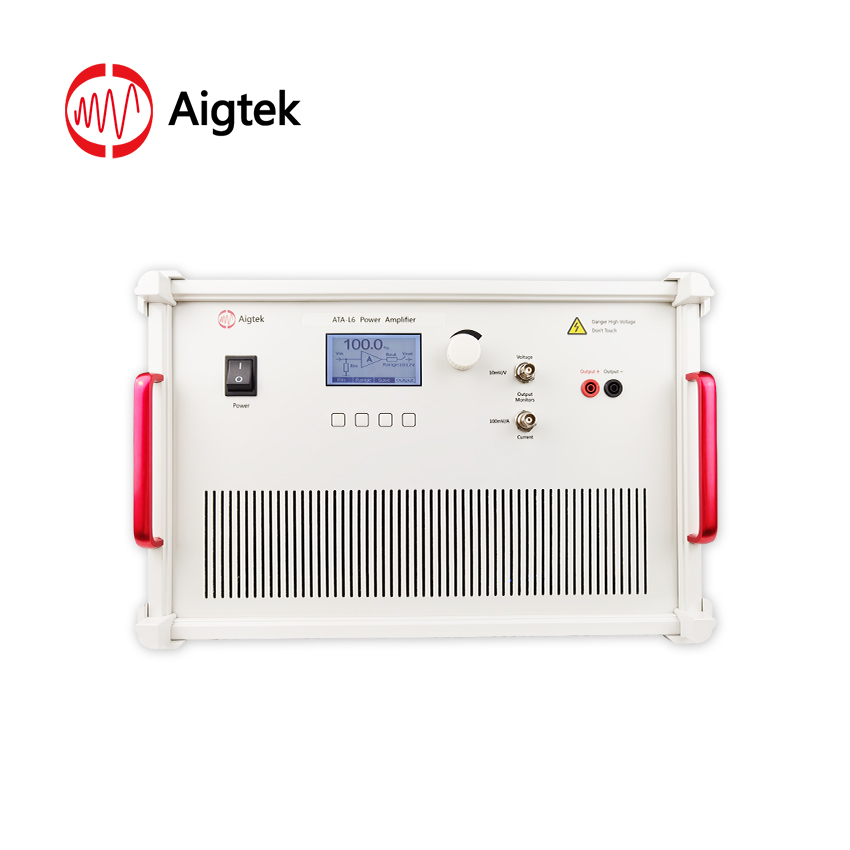

LCD display

ATA-L6 is equipped with LCD display for dynamic display of device status and parameters, the control interface is clear, concise and easy to understand at a glance.

Monitor

Output current monitor: 100 mV/A

Output Voltage Monitor: 10 mV/V

The output interface is BNC, which can be directly connected to the oscilloscope for real-time monitoring.
