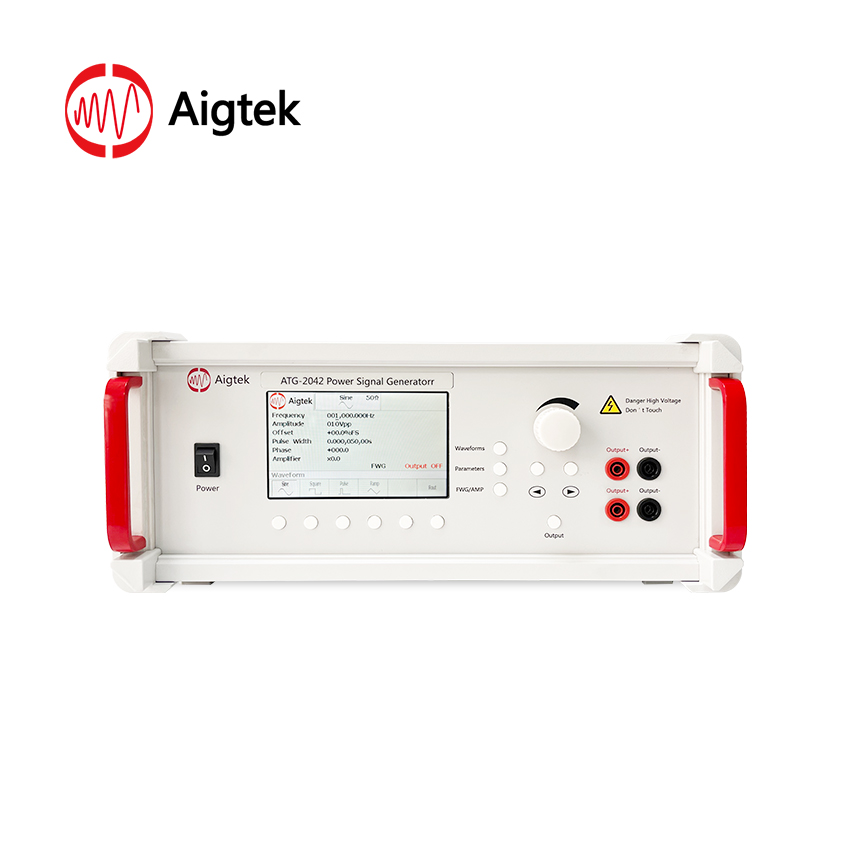

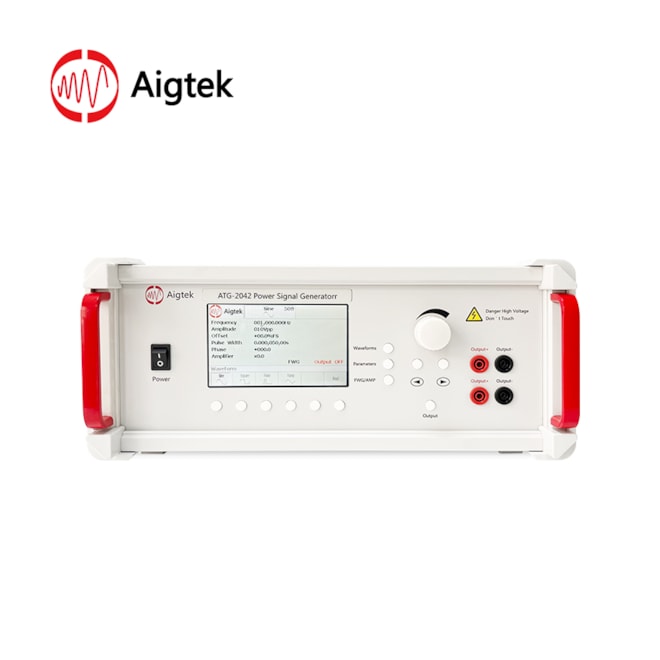

ATG-2042 Power Signal Generator

  • power signal generator
  • two channels
  • output is a sine, square, triangle or pulse wave
  • built-in or external signal input
  • warranty: 3 years
Aigtek
Other parameters
Price on request
Cat. no: ATG-2042.w
availability on request

No item matches your selection.

Parameters and specifications

maximum output voltage 400Vp-p (±200Vp)
maximum output current 100 mAp
bandwidth (-3dB) DC~500kHz

The ATG-2042 is an ideal dual channel power signal generator that can output sine, square, triangle and pulse wave. Customer can choose built-in or external signal input according to the application conditions. Maximum output voltage: 400 Vp-p (±200 Vp); drives high voltage loads. Digital control and variable voltage gain, one button to save general setting, convenient and concise operation.

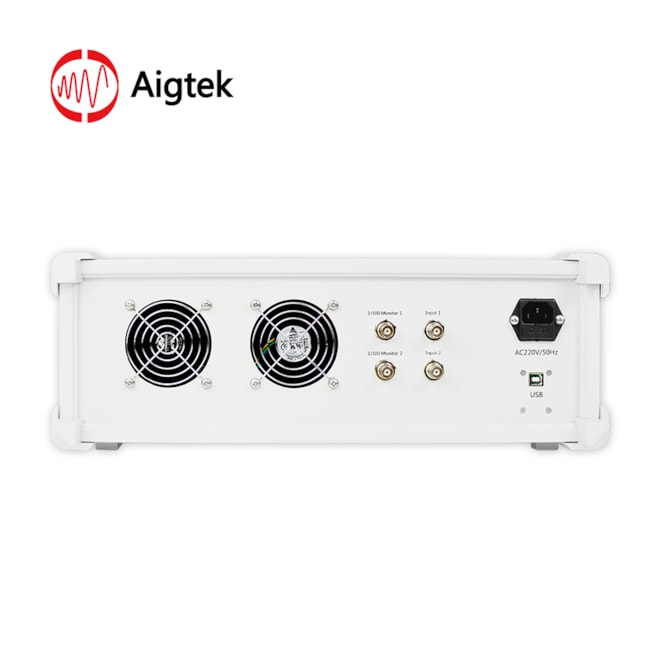

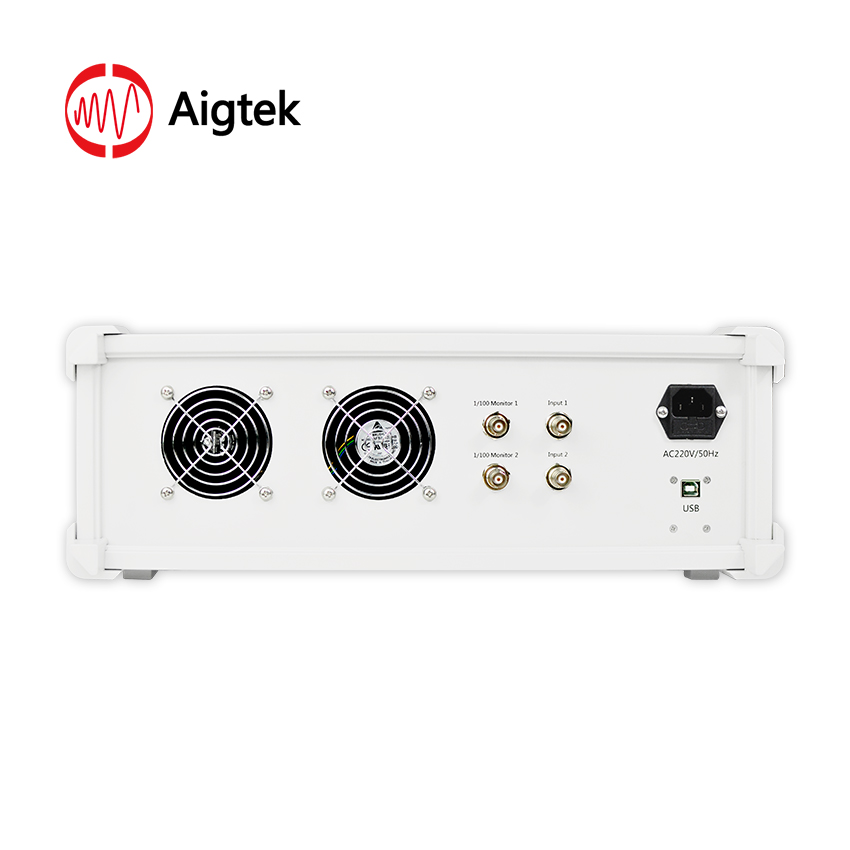

Input

The input end of the external signal is BNC interface. When the signal input is built-in, it is power signal generator mode, just set the parameters such as waveform, frequency and voltage; when the signal is accessed externally, it is amplifier mode, the input resistance is 5 kΩ, the output resistance can be switched, and the signal can be amplified by voltage gain control.

Output

Output is a 4 mm banana; output voltage is 0-400 Vp-p (±200 Vp); maximum output current is 100 mAp.

LCD displays

LCD control panel for dynamic display of device status and parameters, the interactive interface is clear, concise and easy to understand at a glance.

Voltage gain

Amplifier mode for external input signal, voltage gain is 0-60 times (1step,) digitally controlled and variable. Gain is displayed on the LCD, it can be quickly adjusted to the desired voltage.

Monitor

The monitor port is a 1/100 output port, the monitor port is a BNC connector that can be connected to an oscilloscope for real-time monitoring of the output voltage.
