ATG-2081 Power Signal Generator

ATG-2081 is an ideal single channel power signal generator which can output sine, square, triangle and pulse wave. The customer can choose built-in or external signal input according to the application conditions. Maximum output voltage: 800 Vp-p (±400 Vp); drives high voltage loads. Digital control and variable voltage gain, one button to save general setting, convenient and concise operation.

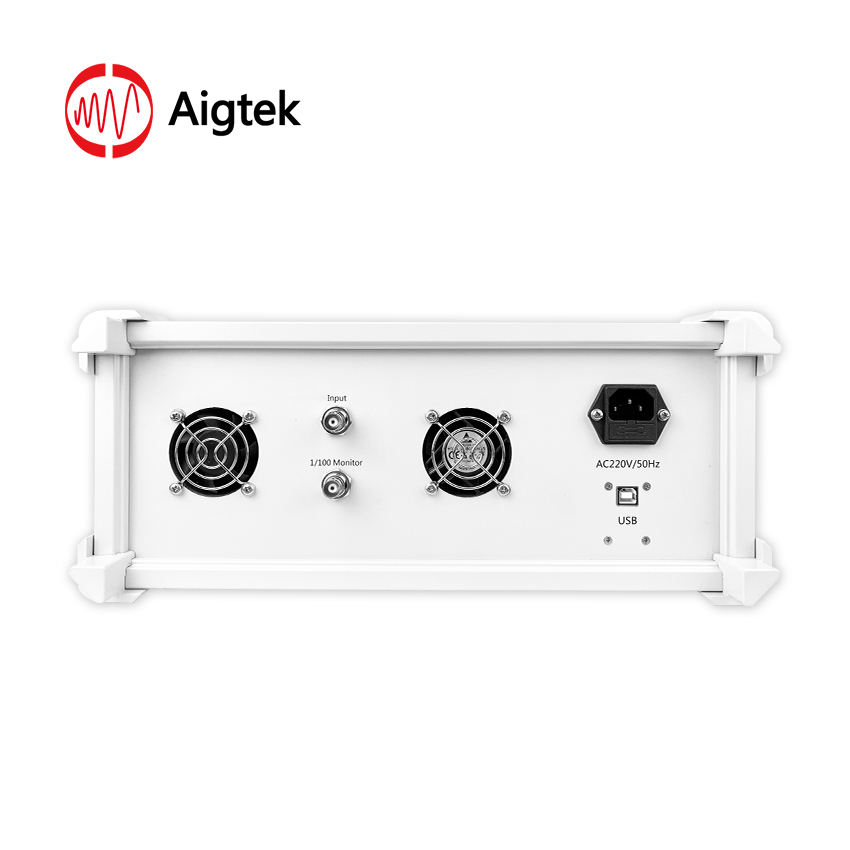

Input

The input end of the external signal is BNC interface. When the signal input is built-in, it is power signal generator mode, just set the parameters such as waveform, frequency and voltage; when the signal is accessed externally, it is amplifier mode, the input resistance is 5 kΩ, the output resistance can be switched, and the signal can be amplified by voltage gain control.

Output

Output is a 4 mm banana; output voltage is 0-800 Vp-p (±400 Vp); maximum output current is 40 mAp.

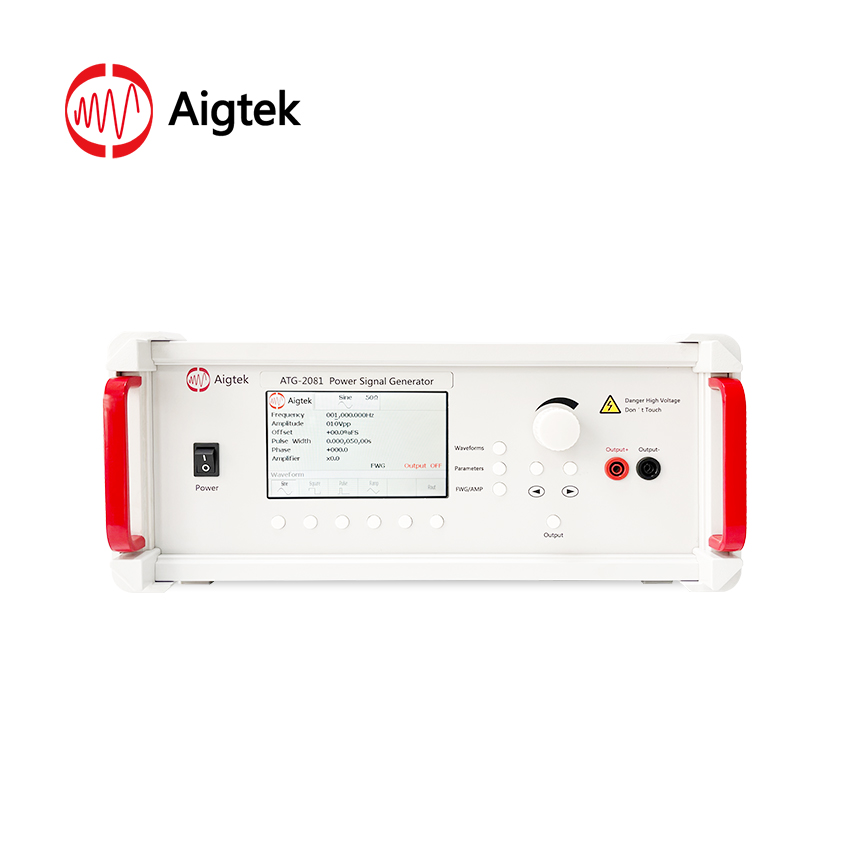

LCD displays

LCD control panel for dynamic display of device status and parameters, the interactive interface is clear, concise and easy to understand at a glance.

Voltage gain

Amplifier mode for external input signal, voltage gain is 0-120 times (1step,) digitally controlled and variable. Gain is displayed on the LCD, it can be quickly adjusted to the desired voltage.

Monitor

The monitor port is a 1/100 output port, the monitor port is a BNC connector that can be connected to the oscilloscope to monitor the output voltage in real time.
