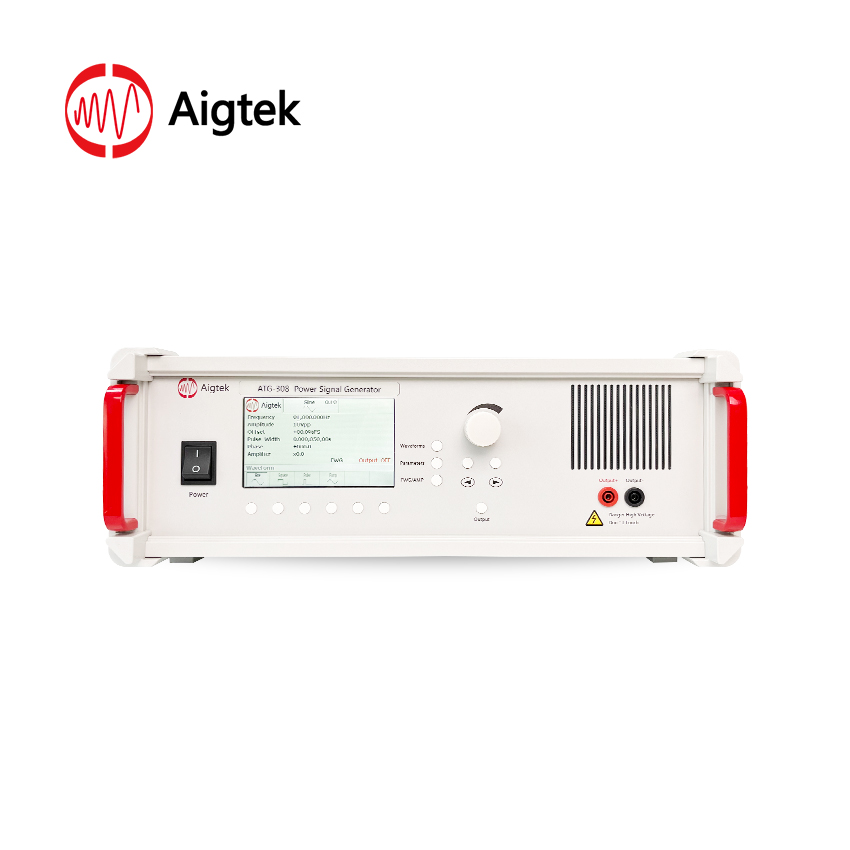

ATG-308 Power Signal Generator

The ATG-308 is an ideal power signal generator that can output sine, square, triangle and pulse waves. Maximum output voltage 180 Vp-p (±90 V), output peak current 8 Ap, maximum output power 720 Wp. Input signal can be built-in signal source and external signal source to realize perfect signal amplification.

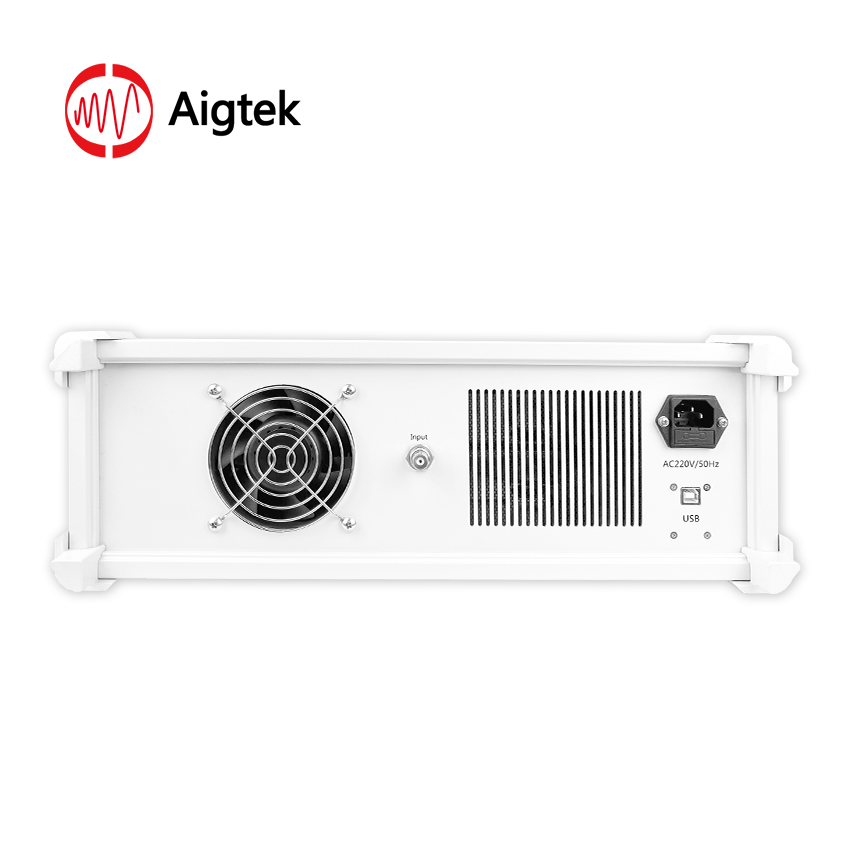

Input

The input end of the external signal is BNC interface. When the built-in signal input is the power signal generator mode, just set the parameters such as waveform, frequency and voltage; when the external signal input is the amplifier mode, the input resistance is 5 kΩ, the output resistance can be switched, and the signal can be amplified by adjusting the voltage gain.

Output

Output is a 4 mm banana; output voltage is 0-180 Vp-p (±90 Vp); maximum output current is 8 Ap.

LCD displays

LCD control panel for dynamic display of device status and parameters, the interactive interface is clear, concise and easy to understand at a glance.

Voltage gain

Amplifier mode for external input signal, voltage gain is 0-30 times (1step,) digitally controlled and variable. Gain is displayed on the LCD, it can be quickly adjusted to the desired voltage.

Monitor

The monitor port is a 1/100 output port, the monitor port is a BNC connector that can be connected to the oscilloscope to monitor the output voltage in real time.
