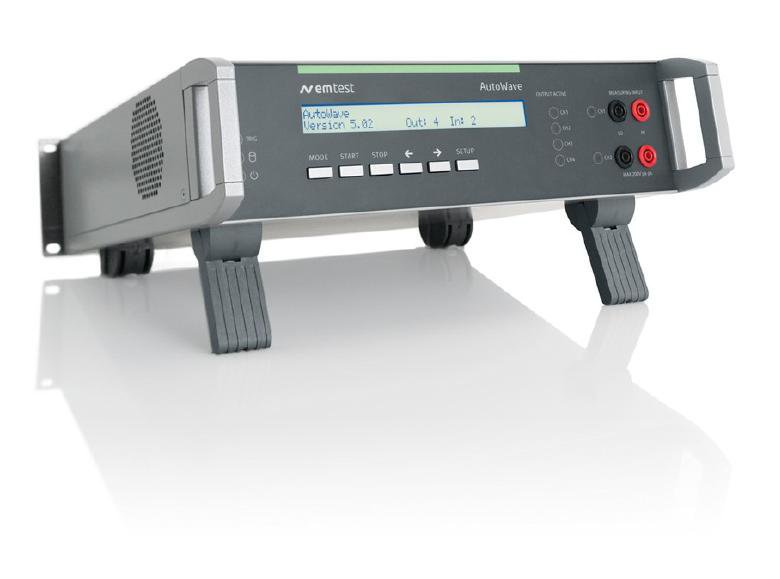

AutoWave Arbitrary Generator

    • arbitrary waveform generator (up to 4 channels)
    • dual processor technology, sampling rate 500 kS/s
    • optional 2-channel transient recorder
    • simultaneous recording/generation
    • library of test standards
    • pseudo-random function
    • 60 GB built-in hard drive
    • multiple interfaces
    • warranty: 2 years
    Ametek Compliance Test Solutions
    Other parameters
    Price on request
    Cat. no: 102330.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    output channels

    2 standard, 2 additional as an option

    output voltage

    10 V, unipolar or bipolar

    resolution

    16 Bit

    frequency range

    DC - 50kHz

    optional segment types

    DC voltage, sine, sine sweep, square, triangle, sawtooth, rise up / fall down, exponential wave

    segment duration

    unlimited

    number of segments

    100 per waveform

    DUT monitoring

    2 inputs

    Battery simulation is becoming increasingly important in today's automotive testing. The waveforms are becoming more and more complex. Standardized stand-alone phenomena such as starting are still tested, but more attention in testing vehicles, or their components, is now focused on testing under real-world conditions. Conventional arbitrary waveform generators often fail in testing these requirements, especially when iterations of different test parameters are required within a single test.

    AutoWave unifies a 4-channel arbitrary waveform generator and a 2-channel transient recorder in a small and practical unit.

    AutoWave is the best alternative for generating and recording any waveform in automotive testing.

    ISO 7637-2 ISO 16750-2 SAE J1113-11 SAE J1113-12.

    Individual manufacturer standards covered by AutoWave: BMW GS 95002, BMW GS 95003-2, Chrylser CS-11979, Fiat 9.90110, Ford EMC-CS-2009.1, GMW 3097, GMW 3172, Honda 3910Z-TVA-0000, Hyundai Kia ES 95400-10, Hyundai Kia ES 96100-02, IVECO 16-2103, Mack Trucks 606GS15, Mercedes MBN 10284-2, Mitsubishi ES-X82010, Nissan 28401 NDS 02, Porsche PSA B21 7110, Renault 36-00.808/ -N, Scania TB1901, Volvo STD 515-003, VW TL 801 01, LV 124, LV 148, Ford FMC 1278, BMW GS 95024-2-2, Jaguar JLR-EMC-CS, Hyundai Kia ES 96200-00, Mitsubishi ES-X82115, VW 80000, Tesla TS-0000048-06, Mercedes MBN 10567, FCA CS.00054, Case New Holland ENS0310, Harley-Davidson EG-812-22613, Mercedes MBN 10284-4, Tesla TS-0000425-05
