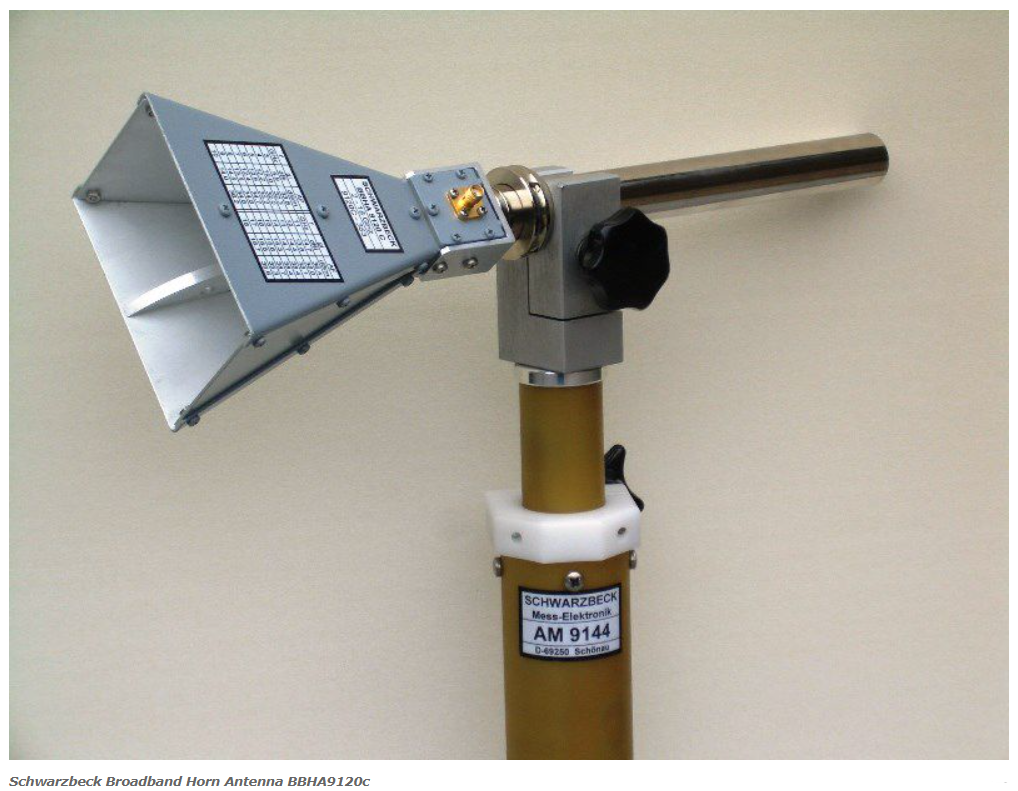

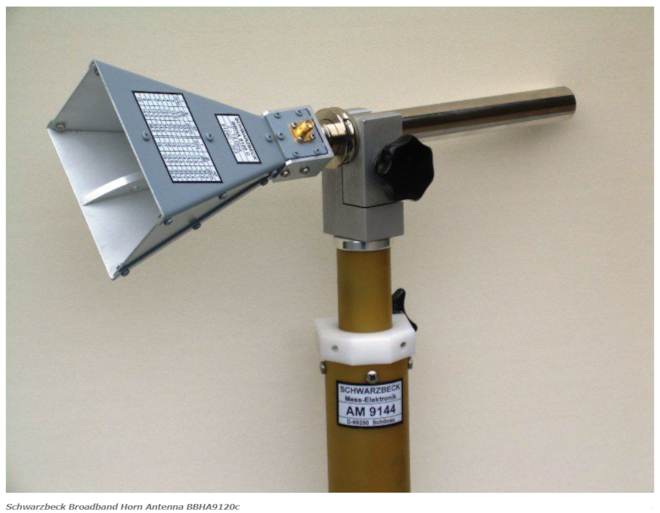

BBHA 9120 C Double Ridged Broadband Horn Antenna
- broadband double horn antenna
- linearly polarized
- frequency range 2 GHz to 18 (20) GHz
- warranty: 2 years
- Type of Device: Radiated Emissions
Parameters and specifications
| frequency range, nominal | 2 GHz - 18 GHz |
| usable frequency range | 2 GHz - 20 GHz |
| polarization | linear |
| radiation (Pattern Type) | directional |
| material | aluminum |
| max power | 100 W intermittent 50 W continuous |
| connector | SMA - female |
| impedance | 50 Ω nominal |
| length | 140 (345) mm |
| width | 98 mm |
| height | 69 mm |
| weight | 0,5 kg |
| attachment | tube 22 mm |
| recommended adapters | AA 9202, AA9202 POM, AA 9203, RA9215 |
Downloads and links
- Radiation Pattern - BBHA9120C.pdf (422.9kB)
- Datasheet - BBHA9120C.pdf (714.6kB)
- Further information on the manufacturer's website
