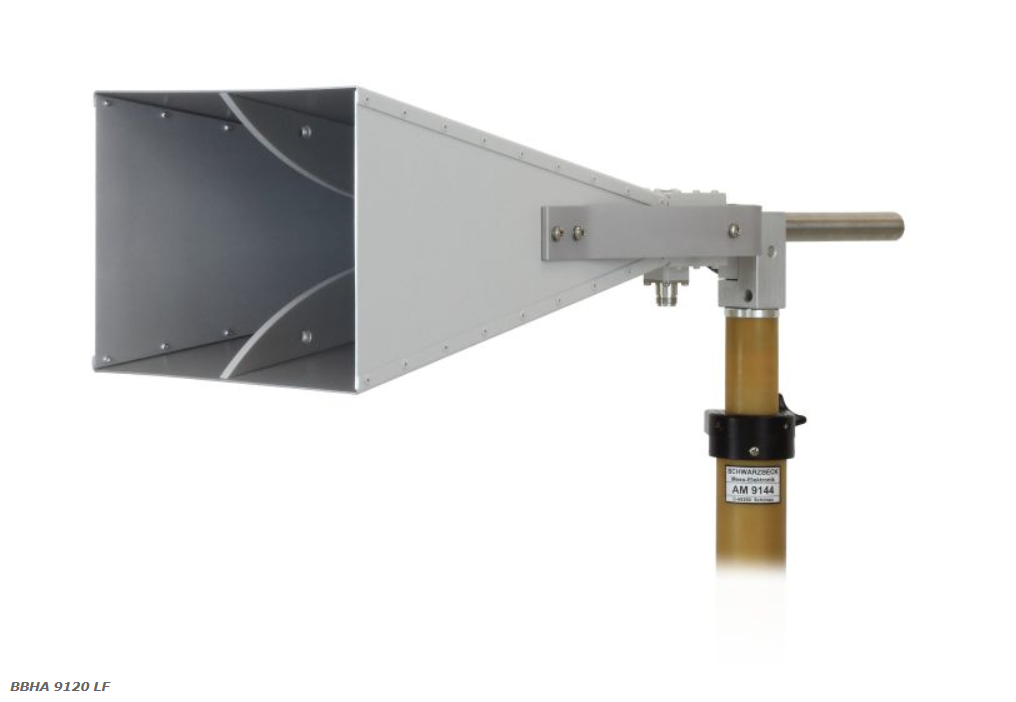

BBHA 9120 LF Double Ridged Broadband Horn Antenna
- broadband double horn antenna
- linearly polarized
- frequency range 0.7 GHz to 6 GHz
- warranty: 2 years
- Type of Device: Radiated Emissions
Parameters and specifications
| frequency range, nominal | 0.7 GHz - 6 GHz |
| polarization | linear |
| radiation (Pattern Type) | directional |
| material | aluminum |

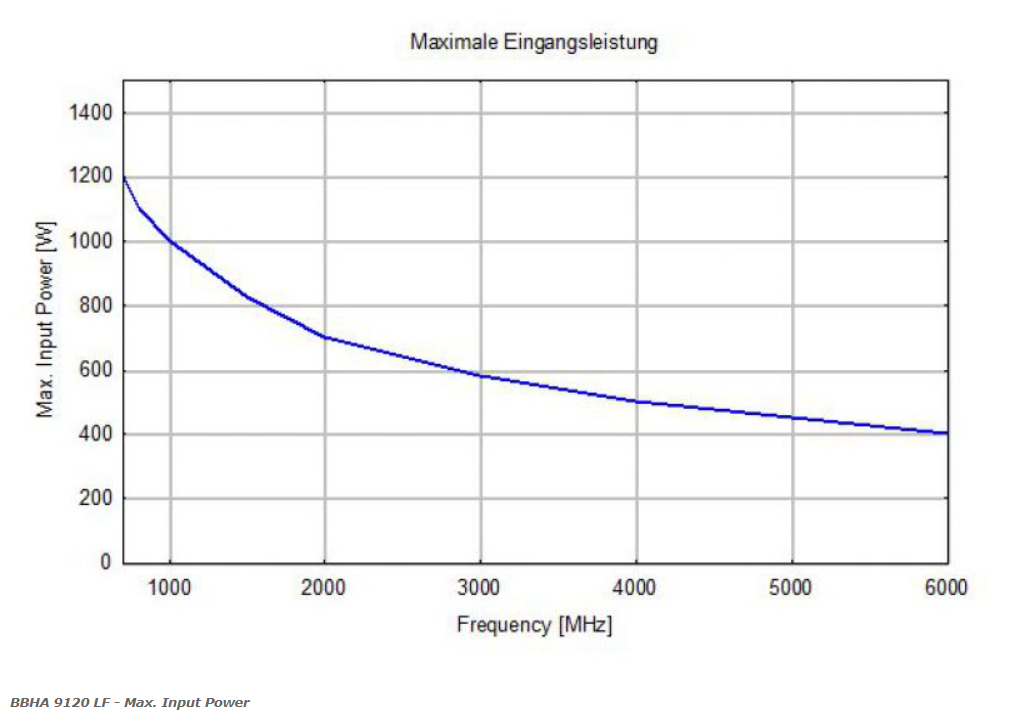

| max power | see graph Max. Input Power |
| connector | N - female |
| impedance | 50 Ω nominal |
| length | 420 mm (620 mm) |
| width | 270 mm |
| height | 185 mm |
| weight | 2.3 kg |
| mounting | pipe 22 mm |
Downloads and links
- Radiation Pattern - BBHA9120LF.pdf (271.7kB)
- Datasheet - BBHA9120LF.pdf (494.1kB)
- Further information on the manufacturer's website
