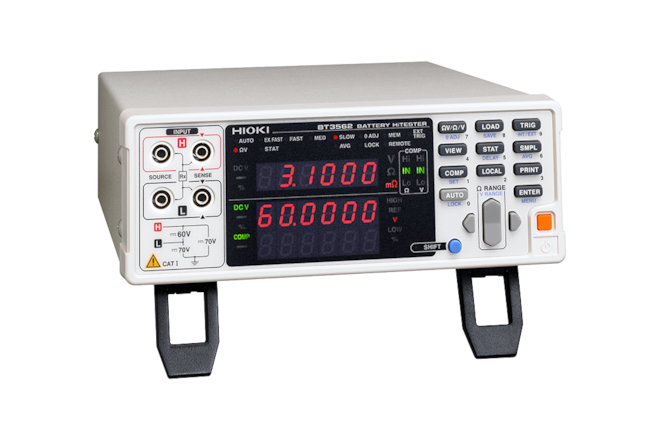

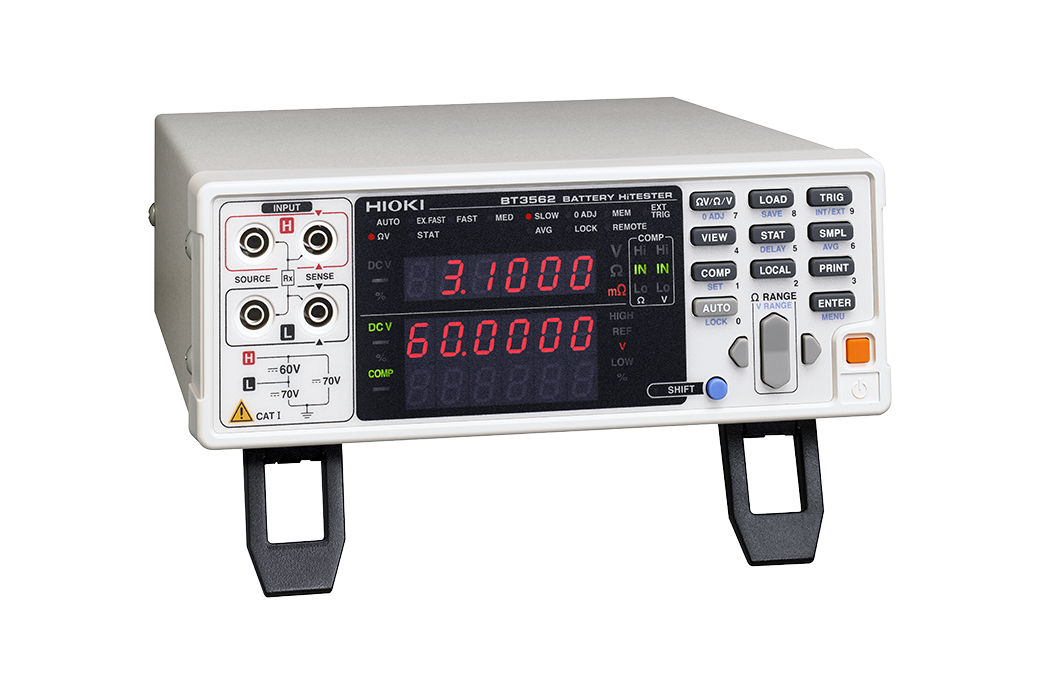

BT3562-01 Battery HiTester

    • battery tester up to a maximum voltage of 60 V DC
    • simultaneous high-speed measurement of internal resistance and battery voltage
    • GPIB interface and analogue output
    • warranty: 3 years
    Hioki
    Other parameters
    €3,178.00
    €3,845.38 incl. VAT
    Cat. no: BT3562-01
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    measured parameters voltage (±6 to 60 V DC, 2 ranges)
    resistance (3 mΩ to 3 kΩ, 7 ranges)
    measuring current 10 µA to 100 mA
    sample rate 4 to 150 ms (EXTRA FAST to SLOW)
    • analogue output
    • four-wire method of measurement using AC current at 1kHz (±0.2 Hz)
    • compatible with SW1001 and SW1002 switching systems
    • supplied without measuring probes; please contact us to select the appropriate type
