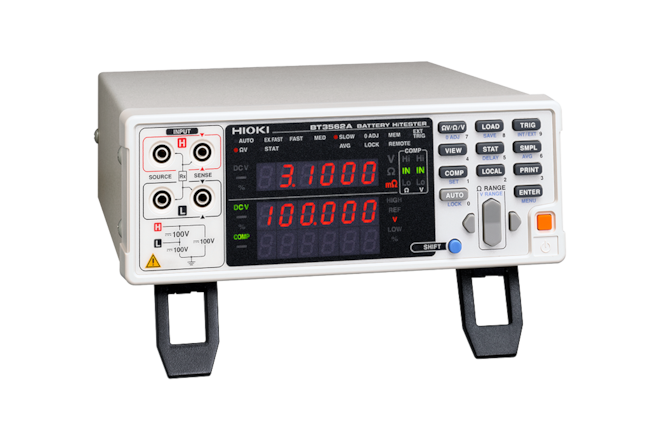

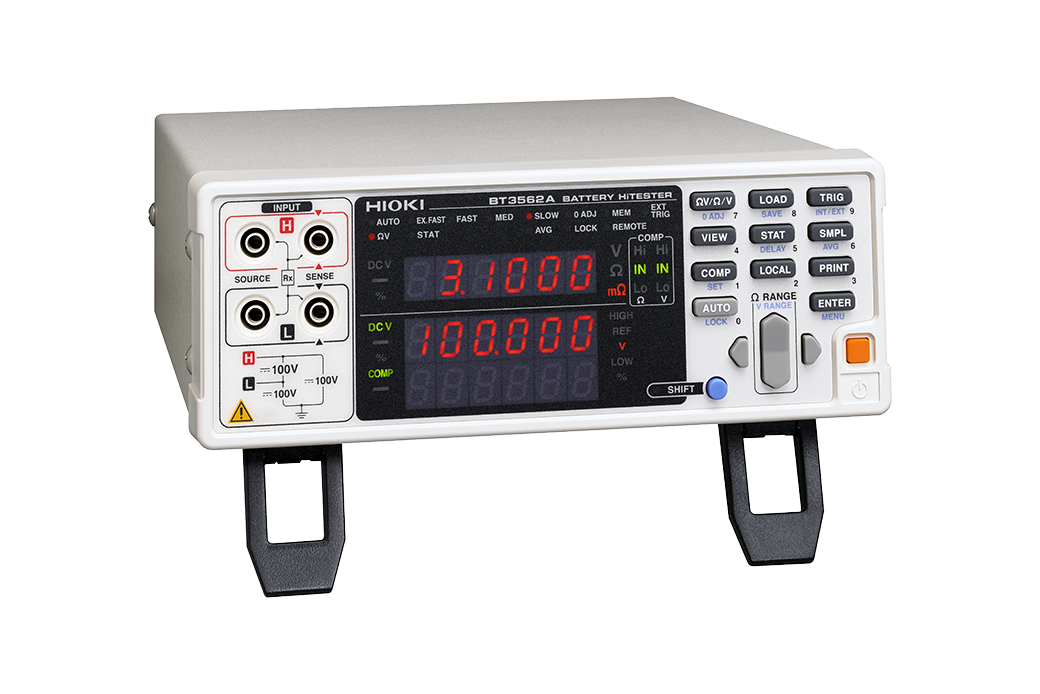

BT3562A Battery HiTester
- tester for larger battery cells and mid-size sets up to a maximum total voltage of 100 V
- simultaneous measurement of internal resistance and no-load voltage

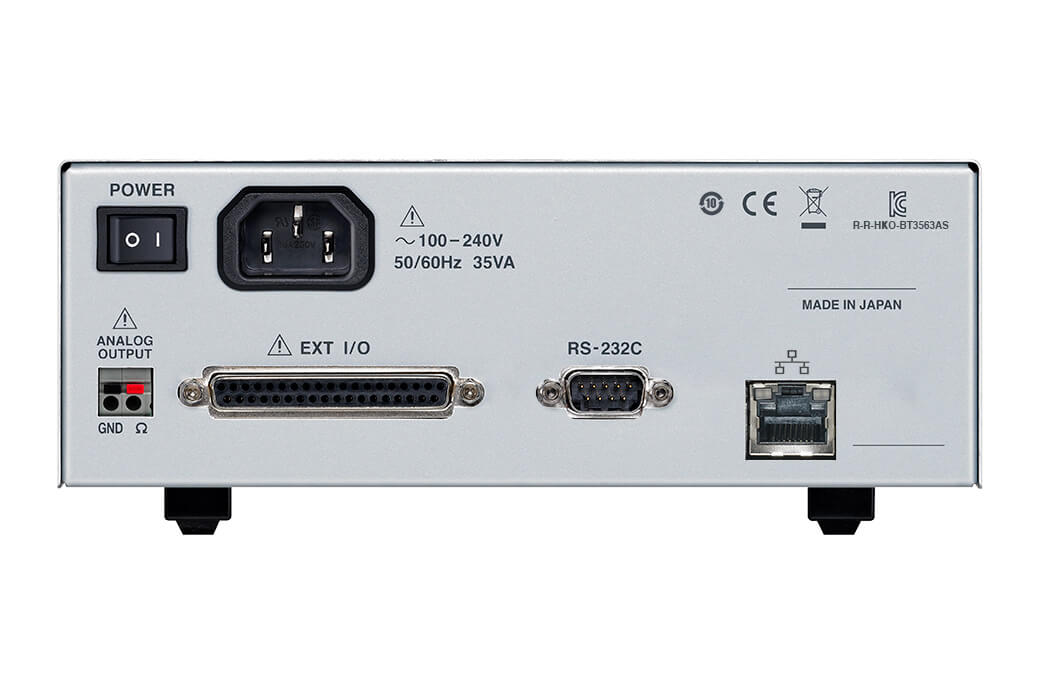

- LAN and RS-232 communication interfaces as standard for complete production automation
- warranty: 3 years
- Type of Device: Testers for Battery Producers
Parameters and specifications
| measured parameters | internal resistance (3 mΩ - 3 kΩ; 7 ranges), voltage (±6/60/100 V DC; 3 ranges) |
| test current | 10 µA - 100 mA AC |
| sampling rate | 4 ms - 157 ms (resistance or voltage; FAST to SLOW range) 8 ms - 259 ms (resistance and voltage simultaneously; FAST to SLOW range) |
- analog output
- four-wire method of measurement using AC current at 1kHz (±0.2 Hz)
- typically suitable for automotive battery testing
- resistant to static electricity discharges up to 30 kV
- compatible with SW1001 and SW1002 switching systems
- supplied without measuring probes; please contact us to select the appropriate type
