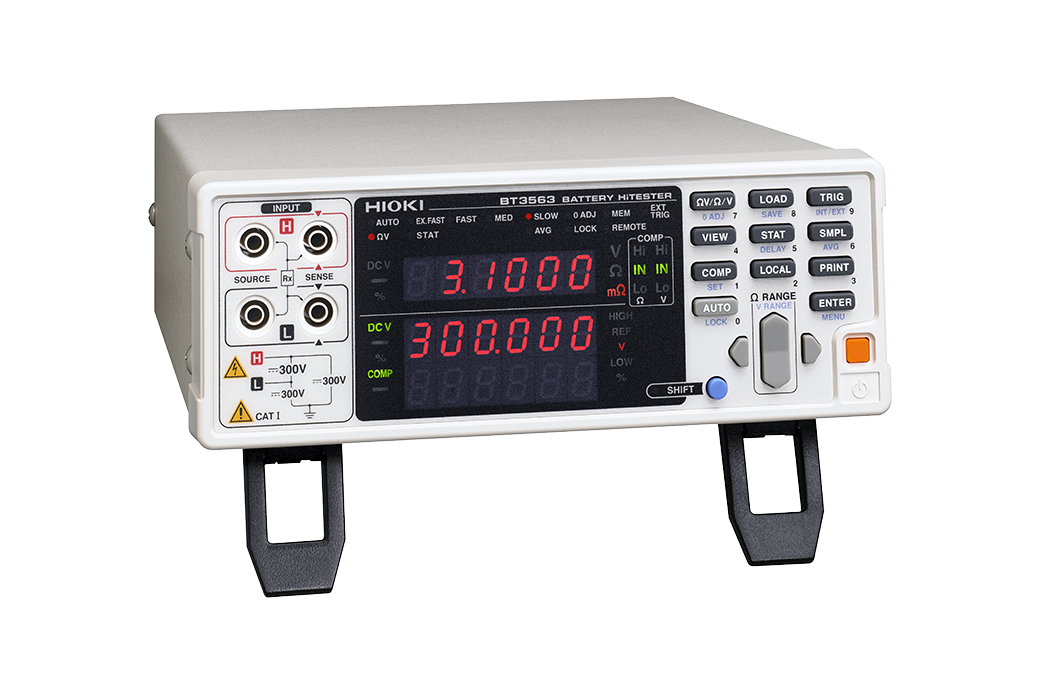

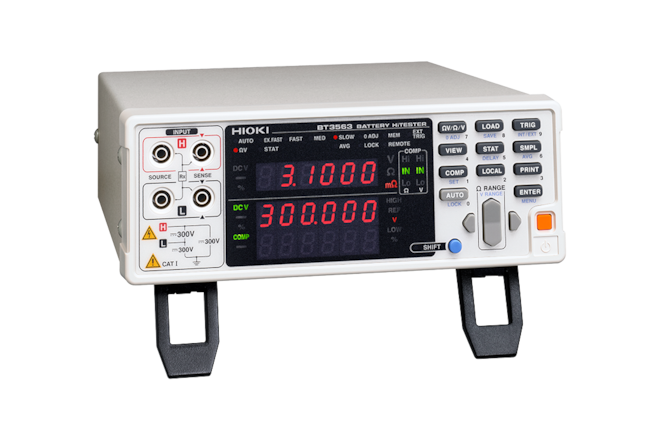

BT3563-01 Battery HiTester

    • tester for HV battery packs up to a maximum voltage of 300 V DC
    • simultaneous measurement of internal resistance and open-circuit voltage
    • GPIB interface and analogue output
    • warranty: 3 years
    Hioki
    Other parameters
    €3,398.00
    €4,111.58 incl. VAT
    Cat. no: BT3563-01
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    measured parameters voltage (±6 to 300 V DC, 3 ranges)
    resistance (3 mΩ to 3 kΩ, 7 ranges)
    measuring current 10 µA to 100 mA
    sample rate 4 to 150 ms (EXTRA FAST až SLOW)
    • analogue output
    • four-wire method of measurement using AC current at 1kHz (±0.2 Hz)
    • supplied without measuring probes; please contact us to select the appropriate type
