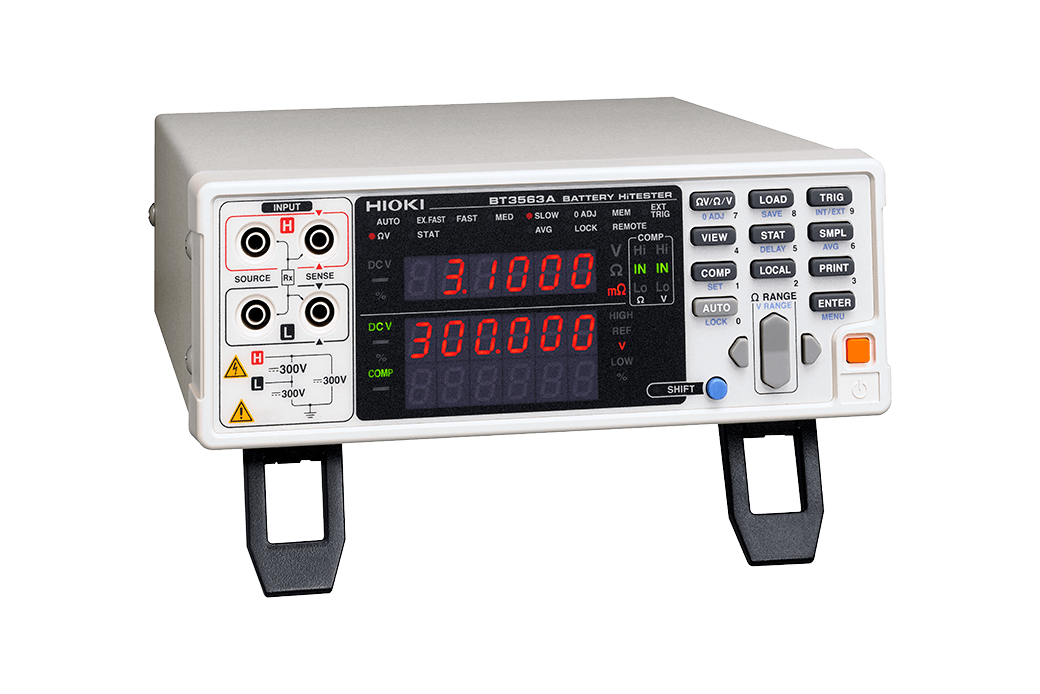

BT3563A Battery HiTester

    • tester for larger battery packs up to a maximum total voltage of 300 V
    • simultaneous measurement of internal resistance and no-load voltage

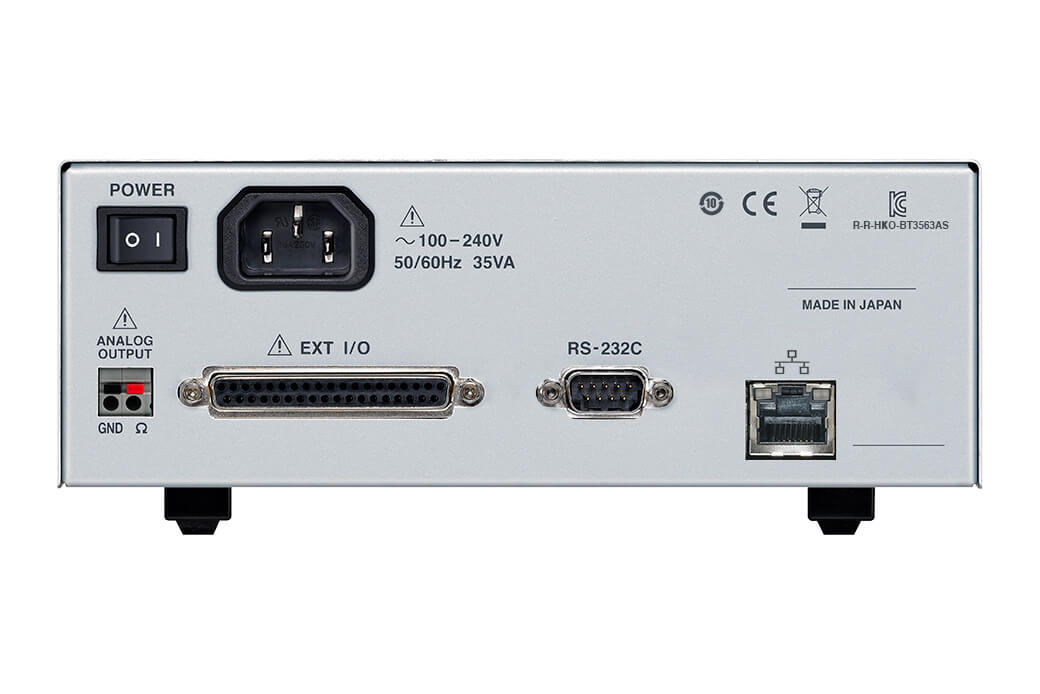

    • LAN and RS-232 communication interfaces as standard for complete production automation
    • warranty: 3 years
    Hioki
    Other parameters
    €3,178.00
    €3,845.38 incl. VAT
    Cat. no: BT3563A
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    measured parameters internal resistance (3 mΩ - 3 kΩ; 7 ranges), voltage (±6/60/300 V DC; 3 ranges)
    test current 10 µA - 100 mA AC
    sampling rate 4 ms - 157 ms (resistance or voltage; FAST to SLOW range)
    8 ms - 259 ms (resistance and voltage simultaneously; FAST to SLOW range)
    • analog output
    • four-wire method of measurement using AC current at 1kHz (±0.2 Hz)
    • particularly suitable for EV and HEV battery testing
    • resistant to static electricity discharges up to 30 kV
    • compatible with SW1001 and SW1002 switching systems
    • supplied without measuring probes; please contact us to select the appropriate type
