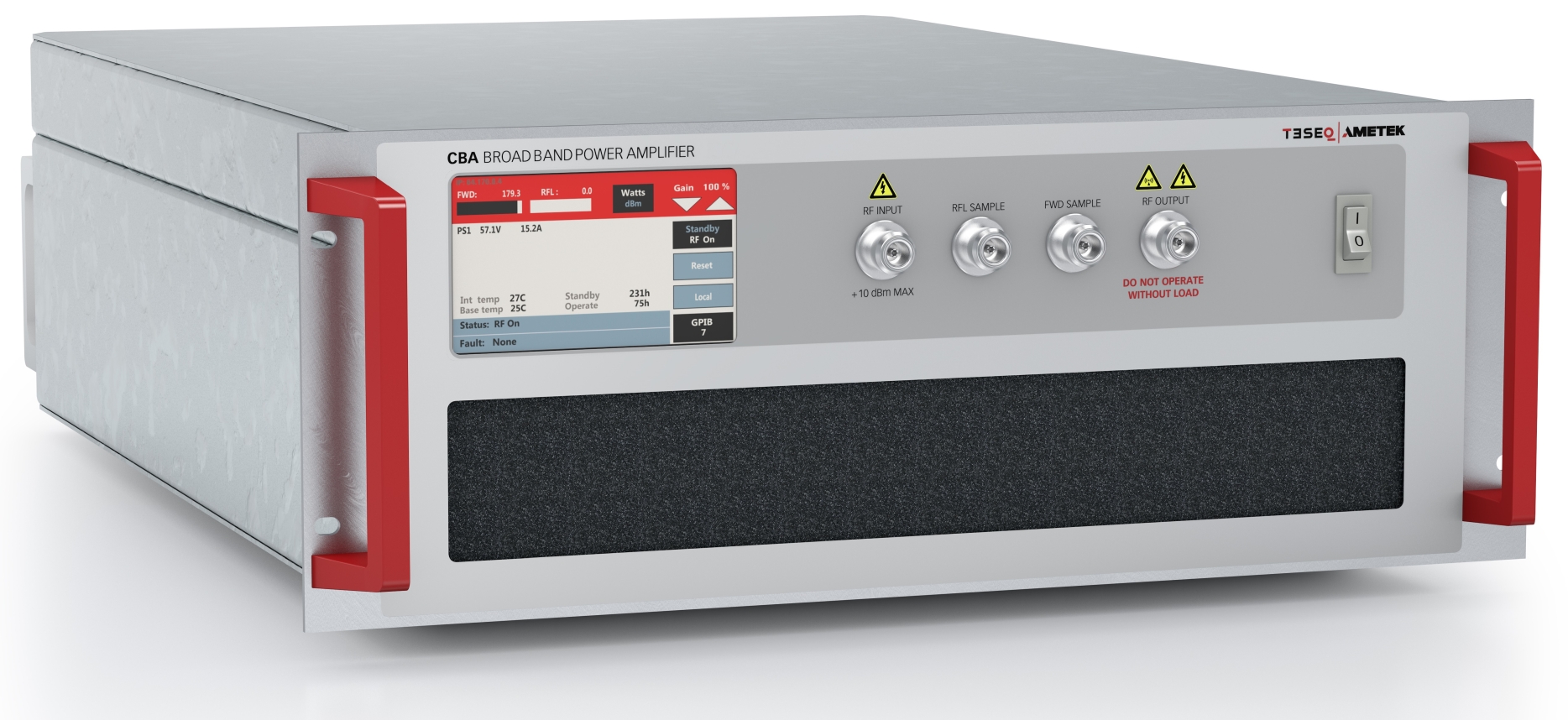

CBA 1G-150D Broadband Power Amplifier

    • broadband amplifier, 80 MHz to 1 GHz, 150 Watt
    • compact design
    • colour touch screen
    • input overload protection
    • Interfaces USB, Ethernet, GPIB, RS232
    • built-in calibrated directional coupler
    • warranty: 3 years
    Ametek Compliance Test Solutions
    Other parameters
    Price on request
    Cat. no: 3-342443.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    frequency range 80 to 1000 MHz
    rated output power 150 W guaranteed (230 W nominal)
    output power at 1 db compression 125 W guaranteed (170 W rated)
    amplification 52 dB minimum
    harmonics at P1 dB -18 dBc
    supply Voltage 90-264 VAC, single phase
    • new high power density design has made it possible to produce a 150 W 80 MHz to 1 GHz amplifier in a compact 4U size. With a minimum linear power of 125 W, this amplifier is ideal for RF field immunity testing to various industry standards such as IEC 61000-4-3, MIL-STD 461, ISO 11452 and RTCA DO160. With compatibility with a wide range of available antennas, such as the TESEQ CBL series, and test systems, such as the Teseq NSG 4070 and ITS 6006, these amplifiers can be easily incorporated into integrated test systems
    • new color touchscreen display provides instant visual indication of forward and reverse power along with the current operating status of the amplifier and access to diagnostic information such as gate current and heat sink temperature
    • most commonly used for standards IEC/EN 61000-4-3, IEC/EN 61000-4-6, IEC/EN 61000-4-20, IEC/EN 61000-4-21, CISPR 24, EN 61000-6-1, EN 61000-6-2, IEC 60533. IEC 60601-1-2, IEC 61326, MIL STD 461, RTCA/DO 160, ISO 11452-3, ISO 11452-5, ISO 11452-11, SAE J1113-24, SAE J1113-27
