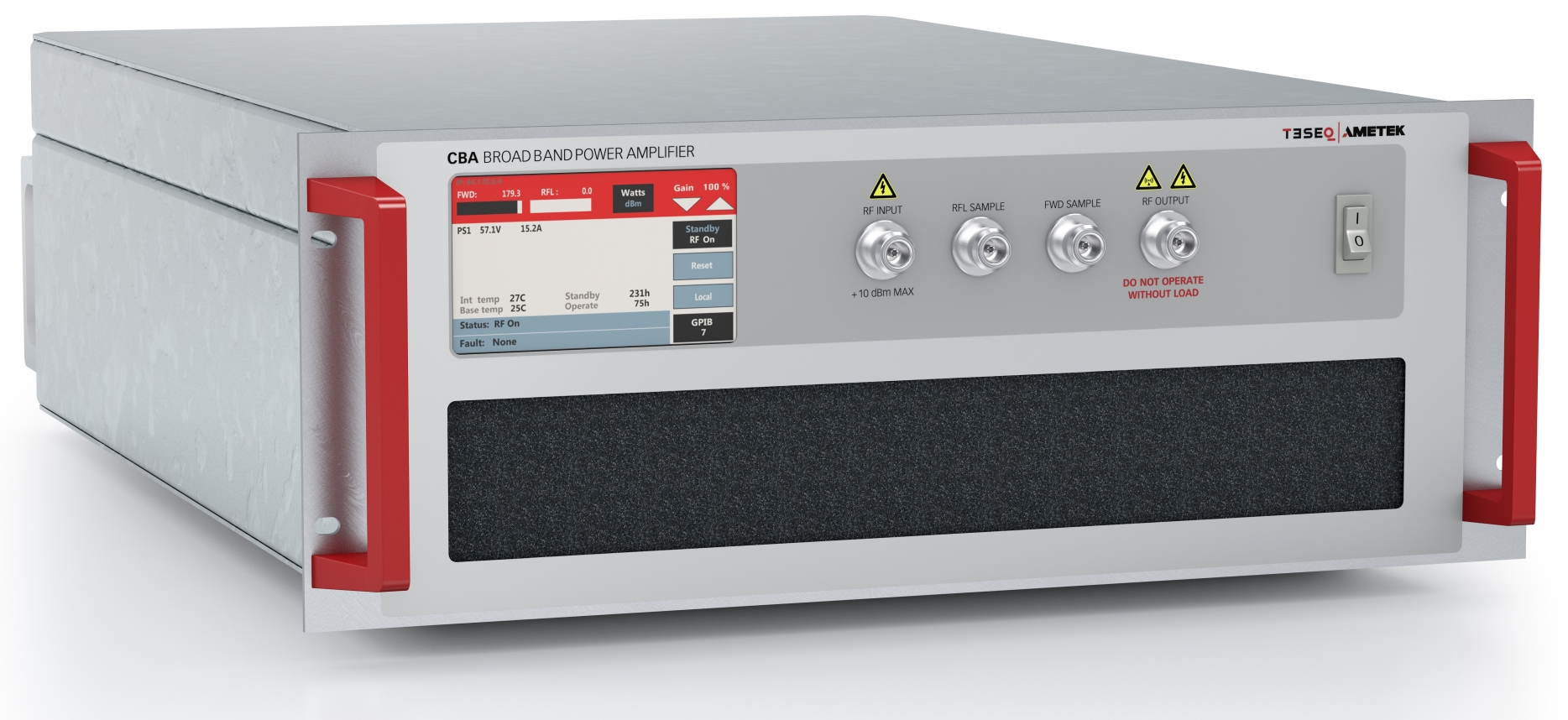

CBA 1G-300D Broadband Power Amplifier

    • broadband amplifier, 80 MHz to 1 GHz, 300 Watt
    • compact design
    • colour touch screen
    • input overload protection
    • Interfaces USB, Ethernet, GPIB, RS232
    • built-in calibrated directional coupler
    • warranty: 3 years
    Ametek Compliance Test Solutions
    Other parameters
    Price on request
    Cat. no: 3-342445.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    frequency range 80 to 1000 MHz
    rated output power 300 W guaranteed (370 W nominal)
    output power at 1 db compression 250 W guaranteed (300 W rated)
    amplification 54 dB minimum
    harmonics at P1 dB -18 dBc
    supply voltage 90-264 VAC, single phase
    • new high power density design has made it possible to produce an amplifier with a frequency range of 80 MHz to 1 GHz and 300 W of power in a compact 4U chassis, with a minimum linear power of 250 W, this amplifier is ideal for RF field immunity testing to various industry standards such as IEC 61000-4-3, MIL-STD 461, ISO 11452 and RTCA DO160, with compatibility with a wide range of available antennas such as the TESEQ CBL series and test systems such as the Teseq NSG 4070 and ITS 6006, these amplifiers can be easily incorporated into integrated test systems
    • new color touchscreen display provides instant visual indication of forward and reverse power along with the current operating status of the amplifier and access to diagnostic information such as gate current and heat sink temperature
    • most commonly used for standards IEC/EN 61000-4-3, IEC/EN 61000-4-6, IEC/EN 61000-4-20, IEC/EN 61000-4-21, CISPR 24, EN 61000-6-1, EN 61000-6-2, IEC 60533, IEC 60601-1-2, IEC 61326, MIL STD 461, RTCA/DO 160, ISO 11452-3, ISO 11452-5, ISO 11452-11, SAE J1113-24, SAE J1113-27
