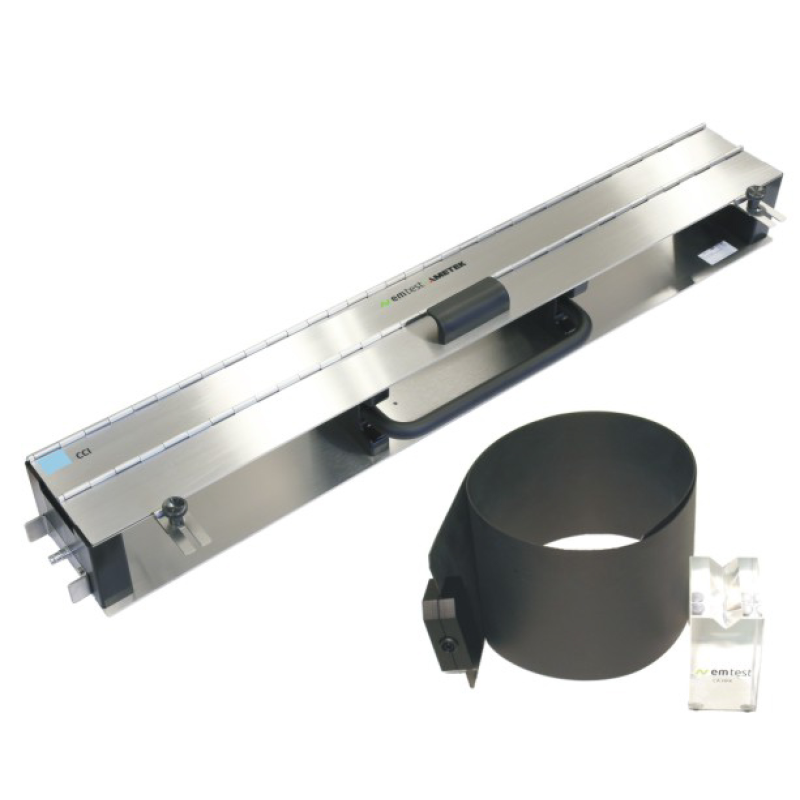

CCI Capacitive Coupling Clamp

capacitive clamping clamp
construction according to IEC 61000-4-4 Ed.3
EFT/Burst testing of signal and data lines
active bond length 1 m
permissible shock voltage (burst) 7 kV
for cable diameters up to 40 mm
calibration kit for capacitive coupling clamps according to IEC 61000-4-4 Ed.3 (as optional accessory)
extension for PVF BKIT 1 for calibration of capacitive coupling clamp with EFT/burst
flexible sensor plate 1050 x 120 mm (optional accessory)
warranty: 2 years

Parameters and specifications

maximum test voltage	7 kV
dimension of bonding area	140 mm x 1000 mm
height	grounding plate - bonding surface, 100 mm
connector	HV coaxial connector
ground wire connection	4 mm banana plug
dimension of cable under test	max. 40 mm
weight	10.6 kg

CCI is used to transfer EFT/burst pulses to I/O conductors as required by various European and international standards for immunity testing

The coupling of EFT/burst electrical transients to signal conductors cannot usually be achieved by discrete capacitive coupling without disturbing the signal flow. It is often not possible to connect directly to the circuit under test, e.g. with coaxial or shielded cables. In this case, the coupling is realized by a capacitive coupling clamp

The interference simulator can be connected on both sides of the coupling clamp. The IEC 61000-4-4 ed. 3.0 standard issued in 2012 recommends calibrating the capacitive coupling clamp to a 50ohm coaxial load using the CCI PVKIT 1 normative calibration kit
