Parameters and specifications
AC current | 600,0/2000,0 A |
DC current | 600,0/2000,0 A |
AC voltage | 6,000/60,00/600,0/1000 V |
DC voltage | 600.0 m/6,000/60.00/600.0/1000 V; 2000 V* |
DC power | 4000 kVA* |
frequency | 9.999/99.99/999.9 Hz |
resistance | 600.0 Ω/6,000/60.00/600.0 kΩ/6,000 MΩ |
capacity | 1,000/10,00/100,0/1000 µF |
temperature | -40 °C to 400.0 °C (using a DT4910 thermocouple) |
* with HV probe P2000
- simple harmonic analysis up to 30th order using the GENNECT Cross mobile app
- TrueRMS measurement
- non-contact voltage detection
- guaranteed operating ambient temperature range -25 to 65 °C
- capture of inrush currents simultaneously in RMS and peak values
- optional HV probe P2000 available for higher DC voltages

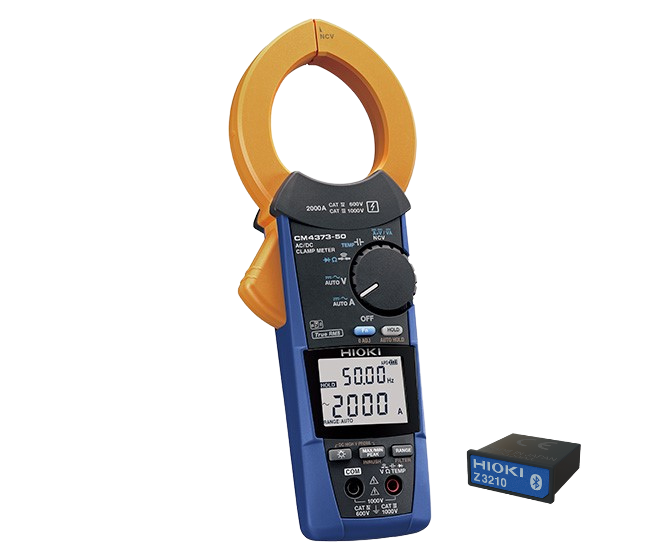

- optional Z3210 adapter for communication with smart devices via Bluetooth and GENNECT Cross app
- direct export of measurement data to Excel with the Z3210 adapter
Simple harmonic + THD analysis
Installation of the Z3210 adapter and pairing with the GENNECT Cross app:
Direct export of measured data to Excel:
