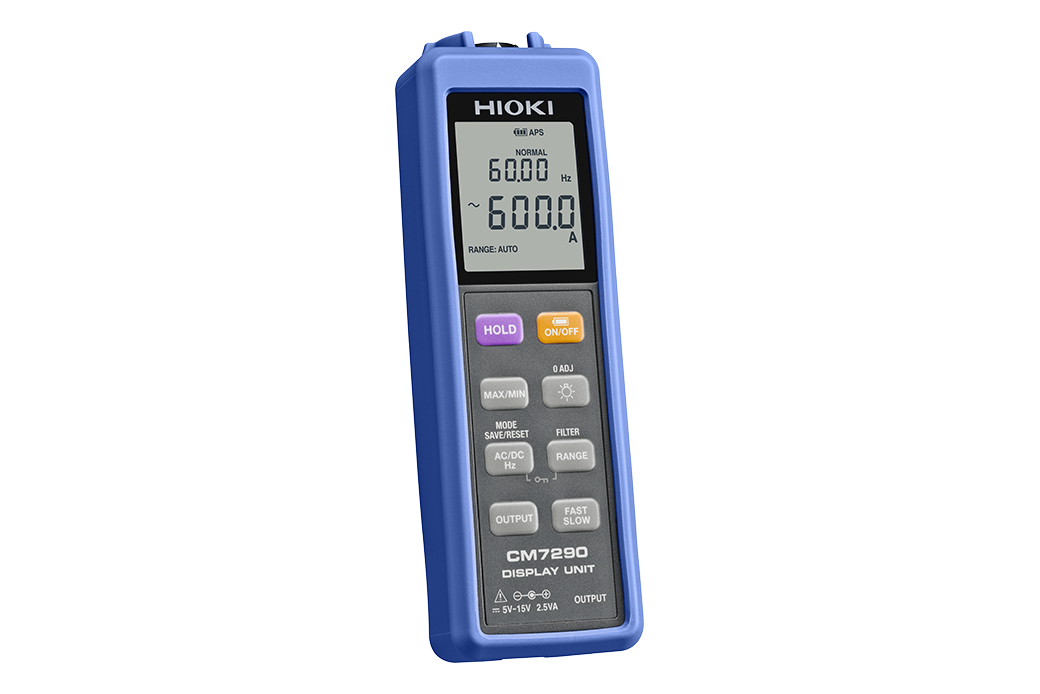

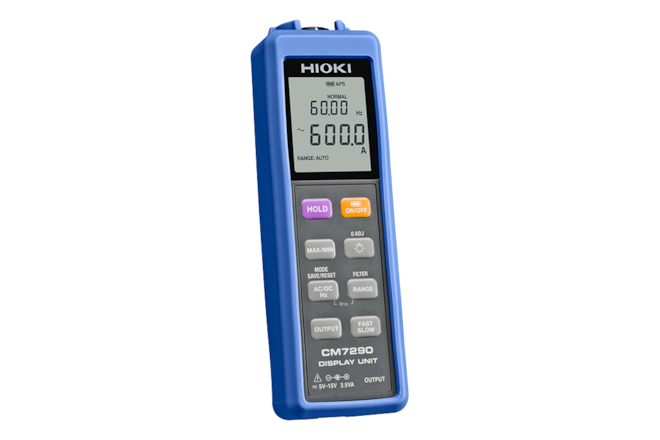

CM7290 Display Unit

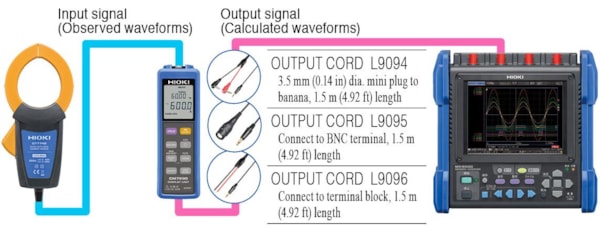

- multifunctional display unit/power supply for CT7000 series current probes and output unit for data loggers and similar devices
- simultaneous display of measured values, frequency and output speed
- four different types of output format
- warranty: 3 years
- Type of Device: Probes for Dataloggers
Parameters and specifications
| CT7642, CT7742 | CT7636, CT7736 | CT7631, CT7731 | |
| measured parameters | DC, AC, DC+AC, Hz | ||
| output methods | WAVE, RMS, PEAK, FREQ | ||
| accuracy (WAVE output DC) | ±2.0% rdg. ±10.8 mV (rozsah 60.00 A) |
±2.5% rdg. ±30.8 mV (rozsah 60.00 A) |
±1.5% rdg. ±5.8 mV (rozsah 60.00 A) |
| accuracy (RMS output DC) | ±2.3% rdg. ±10.8 mV (rozsah 60.00 A) |
±2.8% rdg. ±30.8 mV (rozsah 60.00 A) |
±1.8% rdg. ±5.8 mV (rozsah 60.00 A) |
| resistance | IP54 | ||
