CN 200N1 Coupling Network

    • transformer and 0.5 ohm load assembly in one box
    • frequency response 10 Hz to 250 kHz
    • secondary saturation 50 A per transformer
    • 2 x 200 W audio output
    • freely configurable on primary/secondary side; serial, parallel, single
    • 2:1 speed ratio
    • built-in non-inductive load resistor 0.5 ohm, 250 W
    • warranty: 2 years
    Ametek Compliance Test Solutions
    Other parameters
    Price on request
    Cat. no: CN200N1.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    For testing according to standards

    • AIRBUS
    • BMW GS 95023
    • Chrysler CS-11809 (2009)
    • DaimlerChrysler DC-10615
    • DO 160 Section 16
    • DO 160 Section 18
    • Ford FMC1278
    • GLloyd VI-7-2
    • ISO 11452-10
    • Jaguar EMC-CS-2010JLR V1.1 (2011-01)
    • Jaguar JLR-EMC-CS V1.0 Amd 4 > LV 123
    • MIL STD 461 G CS 101
    • MIL STD 461 G CS 109
    • MIL-STD-704
    • Mitsubishi ES-X82115
    • SAE J1113-2
    • Tata TST/TS/WI/257
    • VW 80300
    • VW 80303

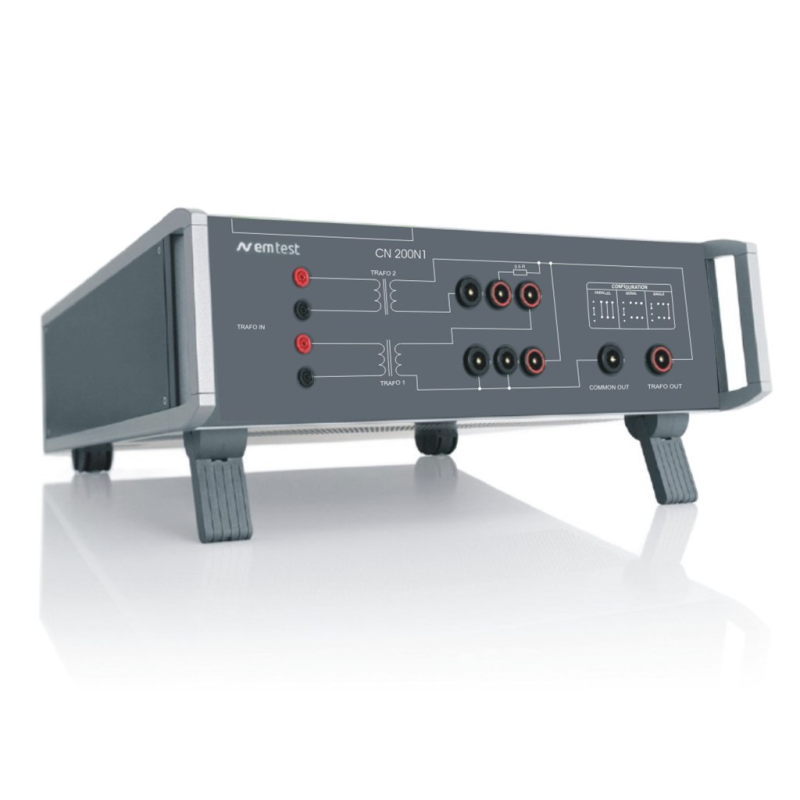

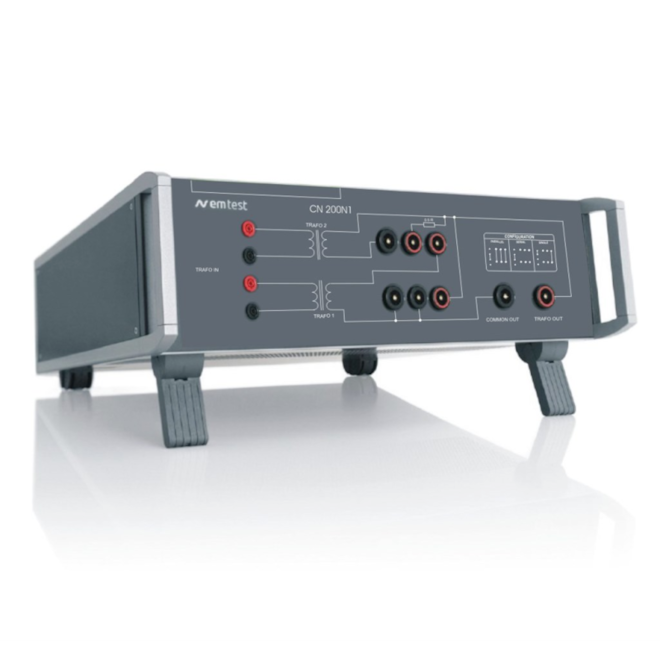

    The CN 200N1 is a separate coupling network that connects two audio transformers that are individually configurable for different testing requirements. The CN 200N1 network is used to feed test signals to the lines under test via the audio transformer to perform voltage ripple tests and continuous or transient conductivity tests.

    Areas of application

    • automotive
    • military
    • aerospace
