CN 200Nxxx Family Transformer for HV Applications

  • frequency response 10 Hz to 500 kHz
  • secondary saturation up to 300 A
  • 200 W audio power per transformer
  • 2:1 speed ratio
  • warranty: 2 years
Ametek Compliance Test Solutions
Other parameters
Price on request
Cat. no: CN200N.w
availability on request

No item matches your selection.

Parameters and specifications

For testing according to standards

  • ISO 7637-4
  • LV 123
  • MIL STD 461 D CS 101
  • MIL STD 461 E CS 101
  • MIL STD 461 E RS 101
  • MIL STD 461 G CS 101
  • VW 80300
  • VW 80303

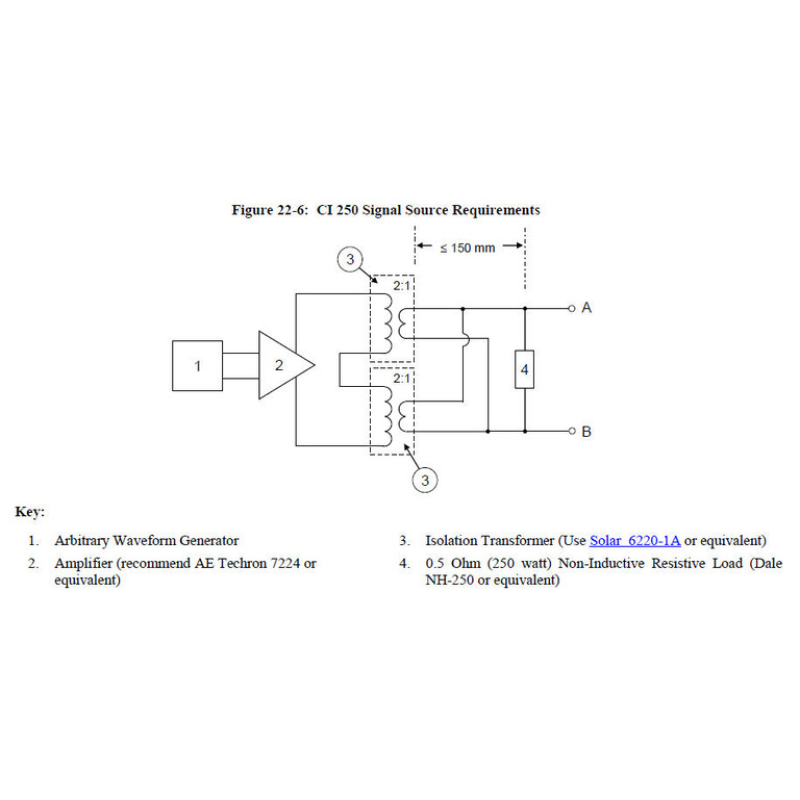

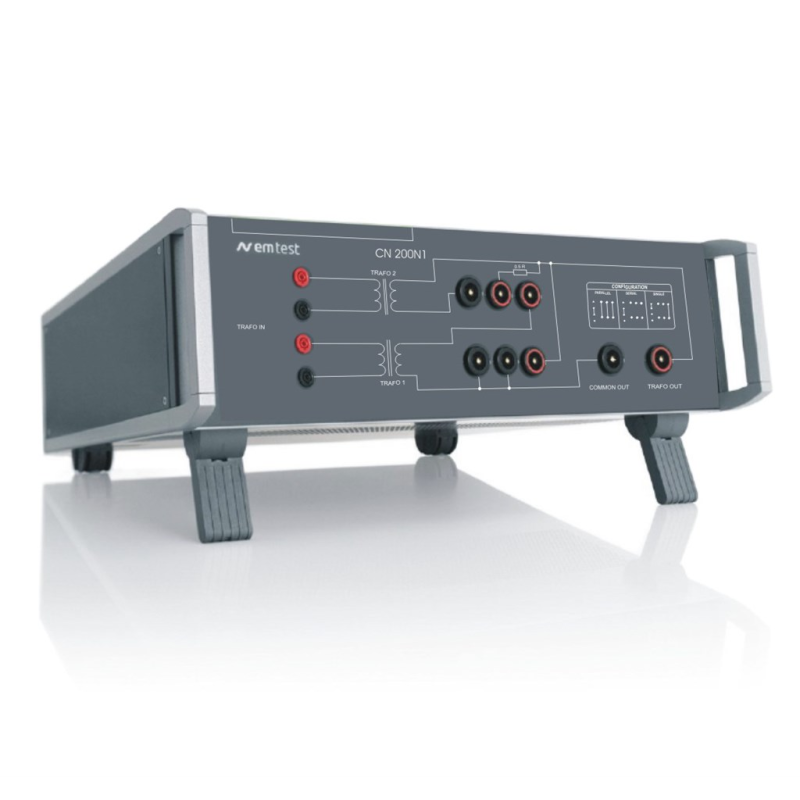

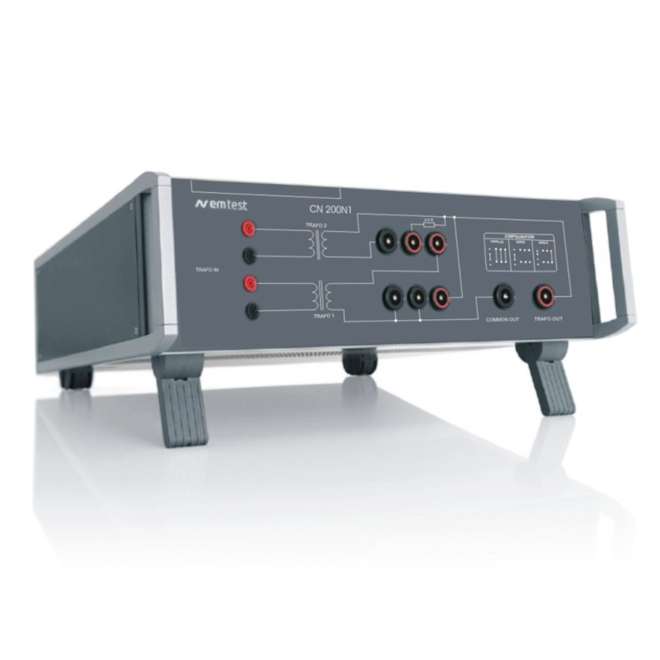

The CN 200N series is a stand-alone coupling network that combines up to three audio transformers, each with a 100 A capacity, and can be configured for a variety of test requirements. The CN 200N series is used to apply test signals to the lines under test via the audio transformer to perform voltage ripple tests and continuous or transient conductivity tests.

Areas of application

  • automotive
