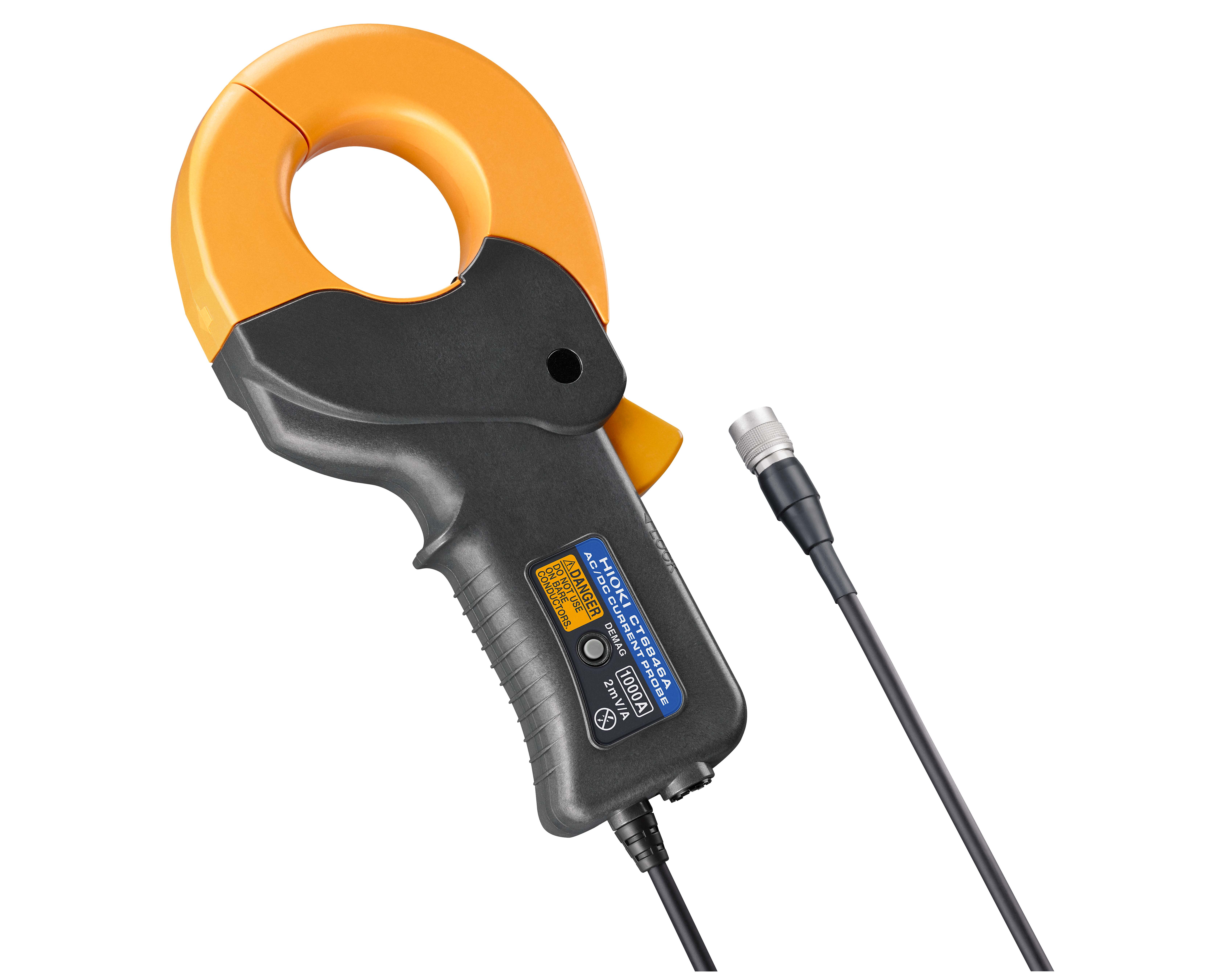

CT6846A AC/DC Current Probe

    • high accuracy clamp-on current probe; basic accuracy ±0.2% rdg. ±0.01% f.s.
    • designed especially for HIOKI PW8001, PW6001 and PW3390 analyzers; can also be used with PW3335, PW3336 and PW3337 wattmeters with lower accuracy class or HIOKI memory loggers
    • 1000 A AC/DC or DC - 100 kHz
    • longer cables can be supplied on request (3 m length as standard), however, a deterioration in measurement accuracy must be taken into account (HIOKI guarantees defined accuracy values in this case as well)
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    CT6841A
    in the supplier's stock
    CT6843A
    in the supplier's stock
    CT6844A
    in the supplier's stock
    CT6845A
    in the supplier's stock
    CT6846A
    in the supplier's stock
    detail
    €1,818.00
    €2,199.78 incl. VAT
    Cat. no: CT6841A
    in the supplier's stock
    detail
    €1,878.00
    €2,272.38 incl. VAT
    Cat. no: CT6843A
    in the supplier's stock
    detail
    €1,988.00
    €2,405.48 incl. VAT
    Cat. no: CT6844A
    in the supplier's stock
    detail
    €1,988.00
    €2,405.48 incl. VAT
    Cat. no: CT6845A
    in the supplier's stock
    €2,328.00
    €2,816.88 incl. VAT
    Cat. no: CT6846A
    in the supplier's stock
    more variants
    od €2,328.00
    od €2,816.88 incl. VAT

    No item matches your selection.

    Parameters and specifications



    CT6846A

    frequency range

    DC - 100 kHz

    max. input current

    1000 A

    output

    2 mV/A

    max. diameter of measuring wire

    50 mm

    interface

    ME15W
