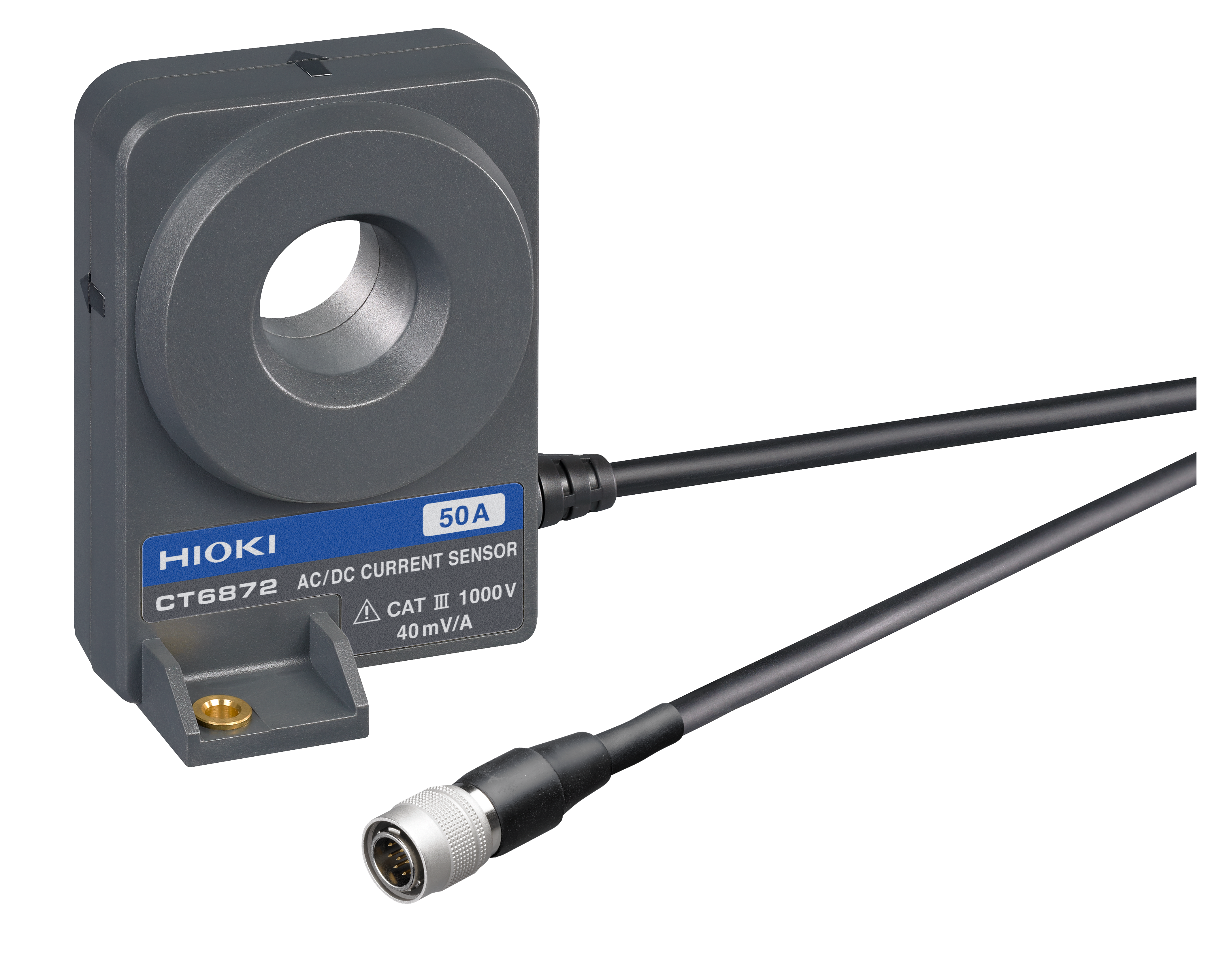

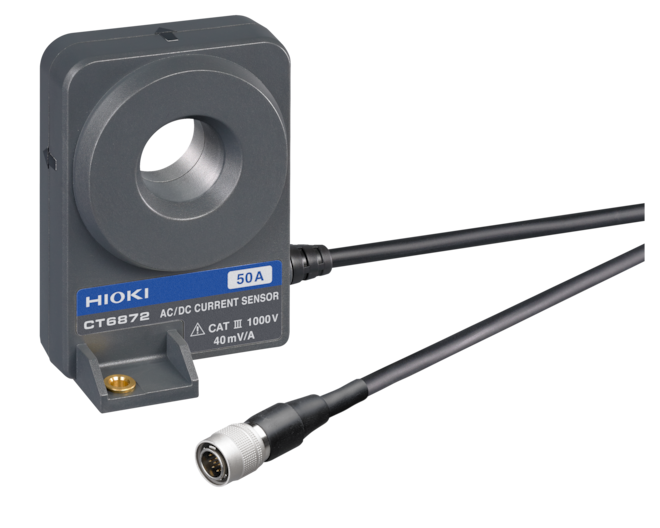

CT6872-01 AC/DC Current Sensor

    • high accuracy pass-through current probe; basic accuracy ±0.03 % rdg. ±0.002% f.s. and frequency range up to 10 MHz
    • designed especially for HIOKI PW8001, PW6001 and PW3390 analyzers; can also be used with PW3335, PW3336 and PW3337 wattmeters with lower accuracy class or HIOKI memory loggers
    • 50 A AC/DC, length of the cable 10 m
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    CT6872
    in the supplier's stock
    CT6872-01
    in the supplier's stock
    CT6873
    in the supplier's stock
    CT6873-01
    in the supplier's stock
    detail
    €1,698.00
    €2,054.58 incl. VAT
    Cat. no: CT6872
    in the supplier's stock
    €1,928.00
    €2,332.88 incl. VAT
    Cat. no: CT6872-01
    in the supplier's stock
    detail
    €1,698.00
    €2,054.58 incl. VAT
    Cat. no: CT6873
    in the supplier's stock
    detail
    €1,928.00
    €2,332.88 incl. VAT
    Cat. no: CT6873-01
    in the supplier's stock
    more variants
    od €1,928.00
    od €2,332.88 incl. VAT

    No item matches your selection.

    Parameters and specifications

      CT6872-01

    frequency range

    DC - 10 MHz

    max. input current

    50 A AC/DC

    output

    40 mV/A

    max. diameter of measuring wire

    24 mm

    interface

    ME15W
