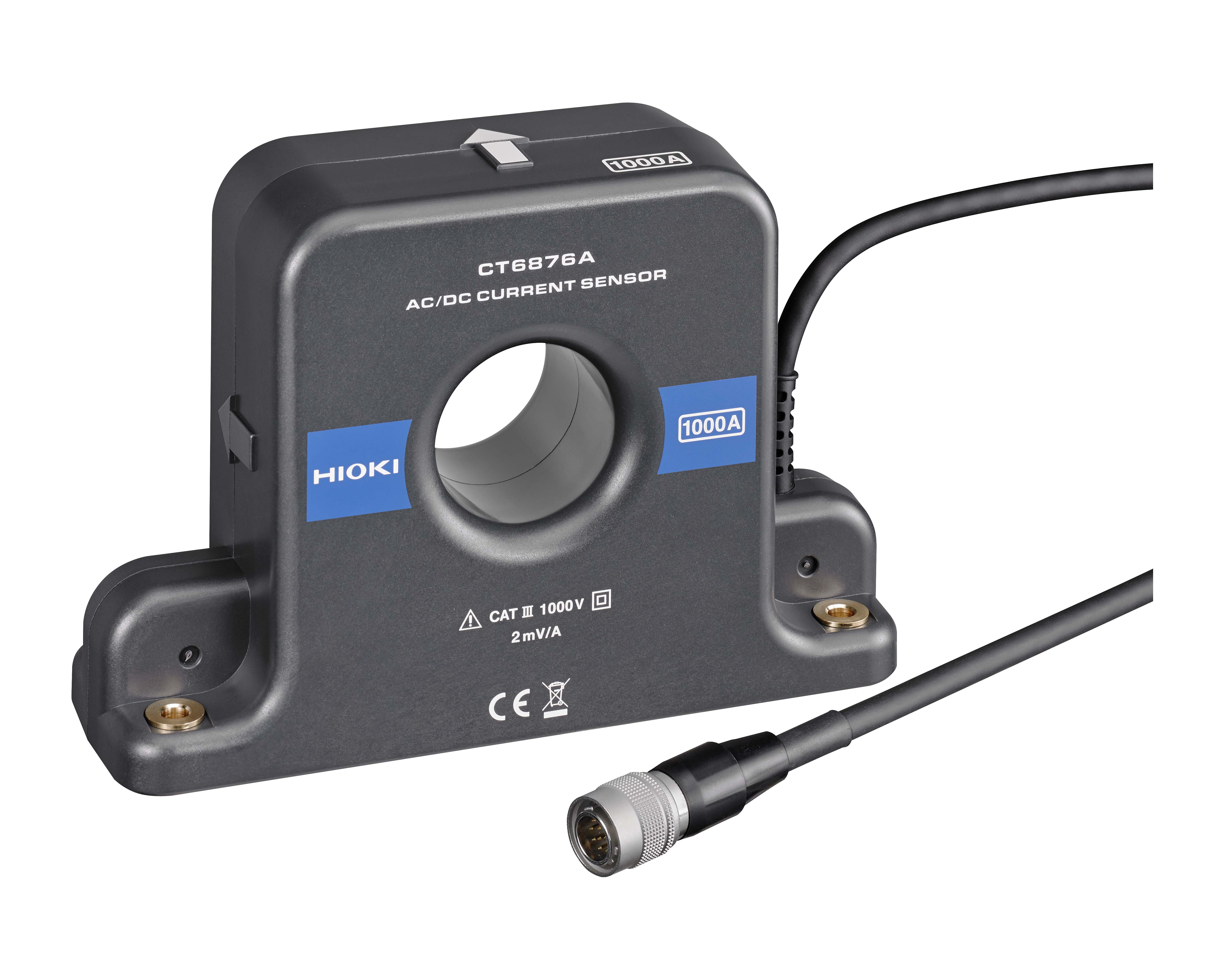

CT6876A AC/DC Current Sensor

    • high accuracy pass-through current probe; basic accuracy ±0.04 % rdg. ±0.008 % f.s.
    • designed especially for HIOKI PW8001, PW6001 and PW3390 analyzers; can also be used with PW3335, PW3336 and PW3337 wattmeters with lower accuracy class or HIOKI memory loggers
    • 1000 A AC/DC, length of the cable: 3 m
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    CT6875A
    availability on request
    CT6875A-1
    availability on request
    CT6876A
    availability on request
    CT6876A-1
    availability on request
    CT6877A
    in the supplier's stock
    CT6877A-1
    in the supplier's stock
    detail
    €1,788.00
    €2,163.48 incl. VAT
    Cat. no: CT6875A
    availability on request
    detail
    €2,028.00
    €2,453.88 incl. VAT
    Cat. no: CT6875A-1
    availability on request
    €2,388.00
    €2,889.48 incl. VAT
    Cat. no: CT6876A
    availability on request
    detail
    €2,628.00
    €3,179.88 incl. VAT
    Cat. no: CT6876A-1
    availability on request
    detail
    €7,208.00
    €8,721.68 incl. VAT
    Cat. no: CT6877A
    in the supplier's stock
    detail
    €7,388.00
    €8,939.48 incl. VAT
    Cat. no: CT6877A-1
    in the supplier's stock
    more variants
    od €2,388.00
    od €2,889.48 incl. VAT

    No item matches your selection.

    Parameters and specifications



    CT6876A

    frequency range

    DC - 1.5 MHz

    max. input current

    1000 A

    output

    2 mV/A

    max. diameter of measuring wire

    36 mm

    Interface

    ME15W
