CT7046 AC Flexible Current Sensor

    • AC flexible current probe
    • warranty: 1 year

    Hioki
    Other parameters

    Choose: Variant.

    Variant
    CT7044
    in the supplier's stock
    CT7045
    in the supplier's stock
    CT7046
    in the supplier's stock
    detail
    €358.00
    €433.18 incl. VAT
    Cat. no: CT7044
    in the supplier's stock
    detail
    €408.00
    €493.68 incl. VAT
    Cat. no: CT7045
    in the supplier's stock
    €438.00
    €529.98 incl. VAT
    Cat. no: CT7046
    in the supplier's stock
    more variants
    od €438.00
    od €529.98 incl. VAT

    No item matches your selection.

    Parameters and specifications

    rated measuring current 6000 A AC
    internal measuring range 600 A AC/ 6000 A AC
    maximum input current 10000 A
    bandwidth 10 Hz to 50 kHz (±3dB)
    amplitude accuracy ±1.5% rdg. ±0.25% f.s.
    phase accuracy ±1 deg
    output 1 mV/A (600 A*), 0.1 mV/A (6000 A)

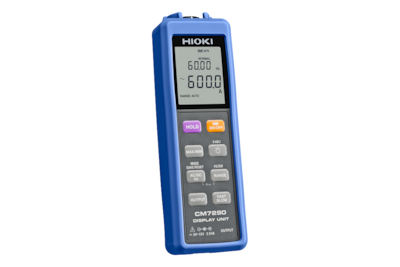

    *only with CM7290, CM7291, PQ3100
    loop diameter 254 mm
    resistance IP54
    connector Hioki PL 14
    operating temperature -25 °C to 65 °C
