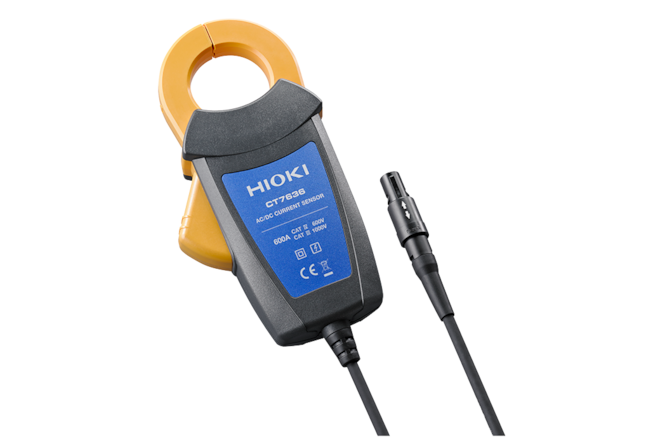

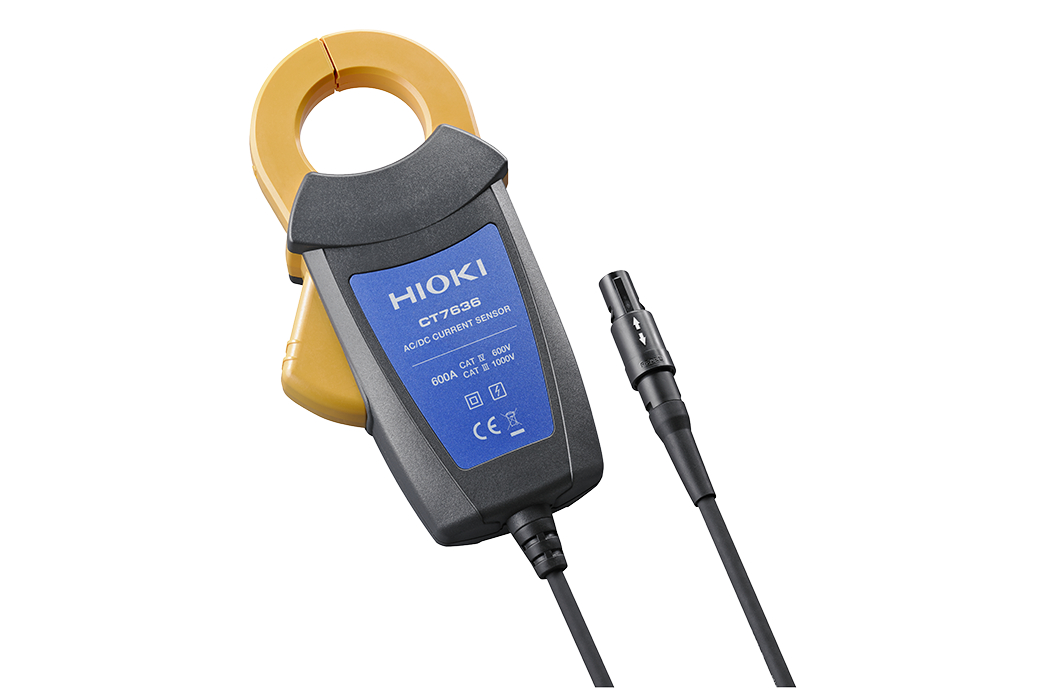

CT7636 AC/DC Current Sensor

    • AC/DC current sensor
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    CT7631
    in the supplier's stock
    CT7636
    in the supplier's stock
    CT7642
    in the supplier's stock
    detail
    €328.00
    €396.88 incl. VAT
    Cat. no: CT7631
    in the supplier's stock
    €408.00
    €493.68 incl. VAT
    Cat. no: CT7636
    in the supplier's stock
    detail
    €408.00
    €493.68 incl. VAT
    Cat. no: CT7642
    in the supplier's stock
    more variants
    od €408.00
    od €493.68 incl. VAT

    No item matches your selection.

    Parameters and specifications

    rated measurement current 600 A AC/DC
    maximum allowable input current 900 Ap
    bandwidth DC to 10 kHz (-3dB)
    typical phase accuracy ±1.8 deg (DC < f ≤ 66 Hz)
    output rate 1 mV/A
    core diameter 33 mm
    output connector Hioki PL 14
    operating temperature -25 °C to 65 °C
    cable length 2.5 m
