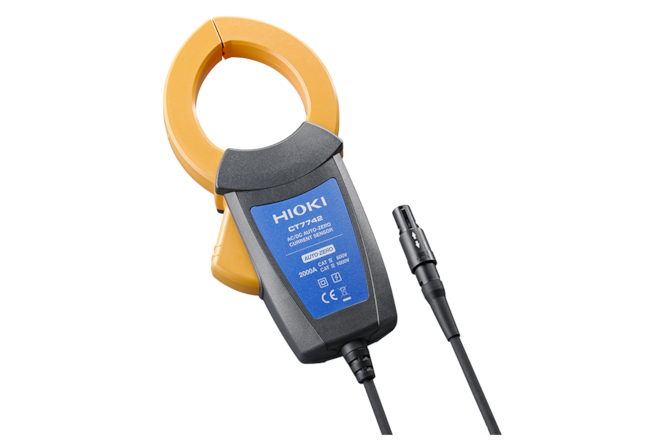

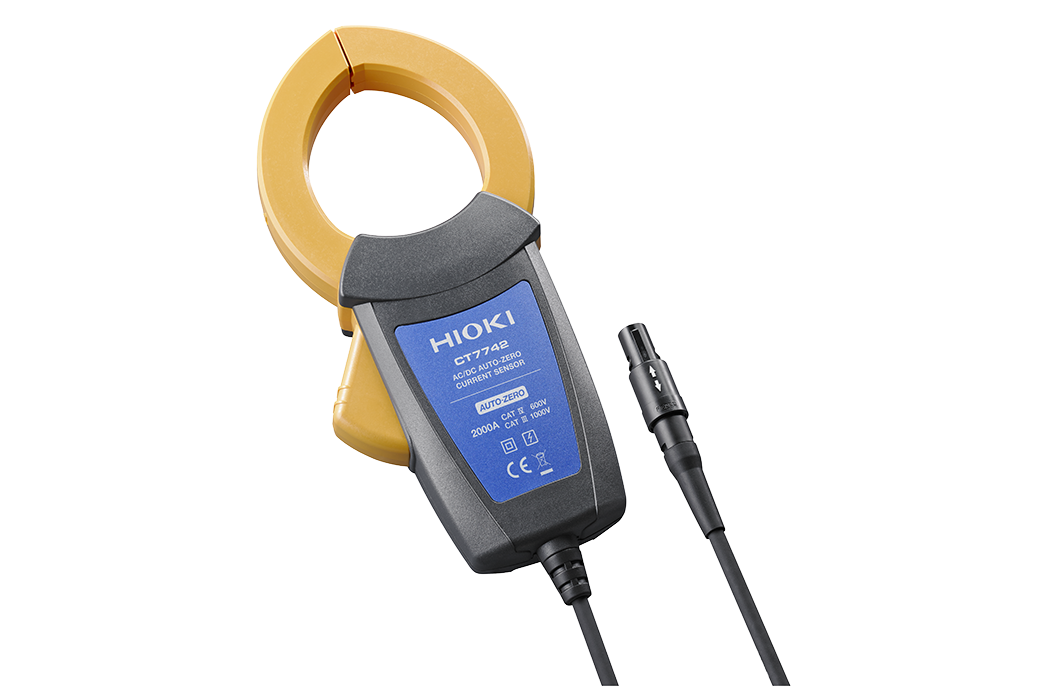

CT7742 AC/DC Auto-Zero Current Sensor

    • AC/DC Auto-Zero current sensor
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    CT7731
    in the supplier's stock
    CT7736
    in the supplier's stock
    CT7742
    in the supplier's stock
    detail
    €498.00
    €602.58 incl. VAT
    Cat. no: CT7731
    in the supplier's stock
    detail
    €568.00
    €687.28 incl. VAT
    Cat. no: CT7736
    in the supplier's stock
    €568.00
    €687.28 incl. VAT
    Cat. no: CT7742
    in the supplier's stock
    more variants
    od €568.00
    od €687.28 incl. VAT

    No item matches your selection.

    Parameters and specifications

    rated measurement current 2000 A AC/DC
    maximum allowable input current 2840 Ap
    bandwidth DC to 5 kHz (-3dB)
    typical phase accuracy ±2.3 deg (DC < f ≤ 66 Hz)
    output rate 0.1 mV/A
    core diameter 55 mm
    output connector Hioki PL 14
    operating temperature -25 °C to 65 °C
    cable length 2.5 m

    *Current clamps with Auto-Zero function do not require regular manual zero adjustment even for prolonged measurements with fluctuating ambient temperatures. The accuracy of long-term measurements is thus ensured even without the presence of an operator.

    Auto-Zero Function
