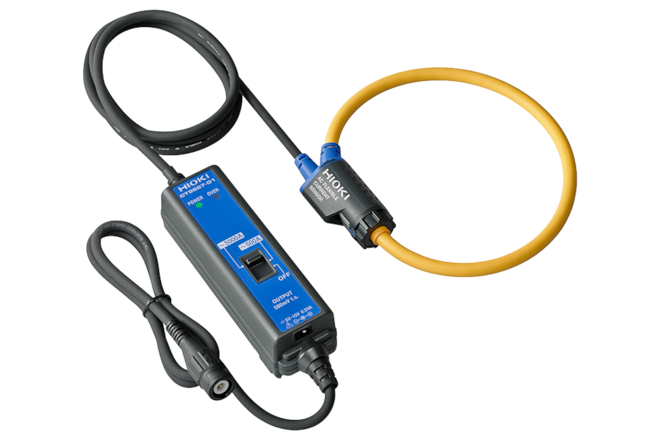

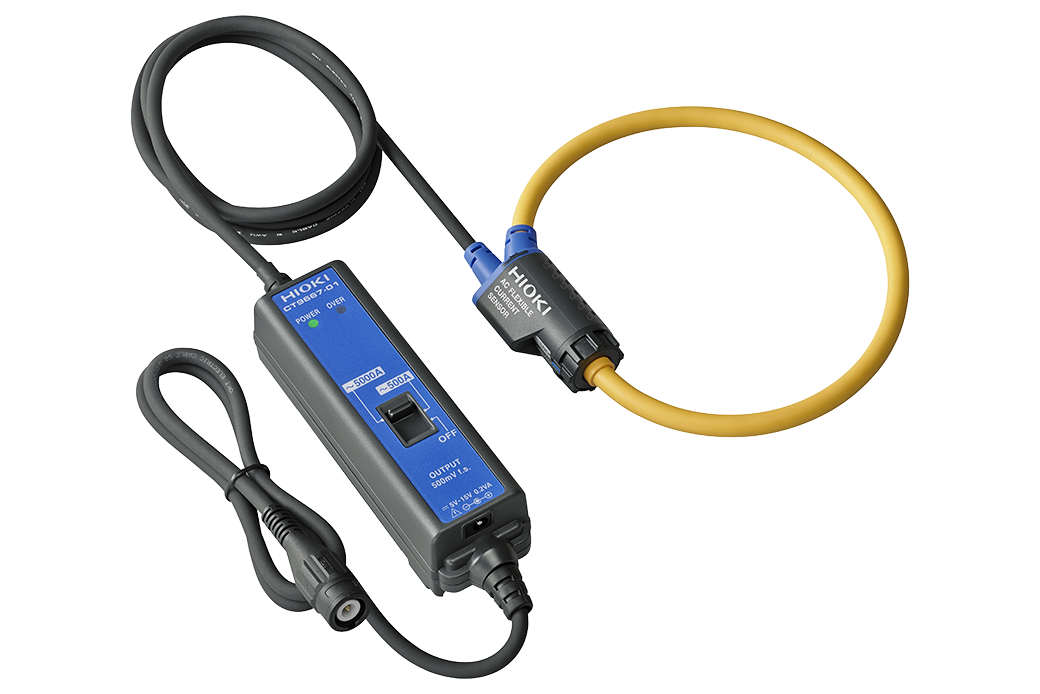

CT9667 Series AC Flexible Current Sensor

    • AC flexible current probe
    • current measurement up to 5000 A AC
    • warranty: 1 year
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    CT9667-01
    in the supplier's stock
    CT9667-02
    availability on request
    CT9667-03
    in the supplier's stock
    detail
    €528.00
    €638.88 incl. VAT
    Cat. no: CT9667-01
    in the supplier's stock
    detail
    €538.00
    €650.98 incl. VAT
    Cat. no: CT9667-02
    availability on request
    detail
    €548.00
    €663.08 incl. VAT
    Cat. no: CT9667-03
    in the supplier's stock
    more variants
    od €528.00
    od €638.88 incl. VAT

    No item matches your selection.

    Parameters and specifications

    rated input current 5000 A AC/ 500 A AC
    max. allowable input 10000 A
    bandwidth 10 Hz to 20 kHz (±3dB)
    amplitude accuracy ±2 % rdg. ±0.3 % f.s. (45 to 66 Hz at center of flexible loop)
    phase accuracy ±1 deg (45 to 66 Hz)
    output voltage

    500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range
    500 mV AC/f.s. (1 mV AC/A) at 500 A range
    core diameter 100, 180 or 254 mm
    output terminal BNC
