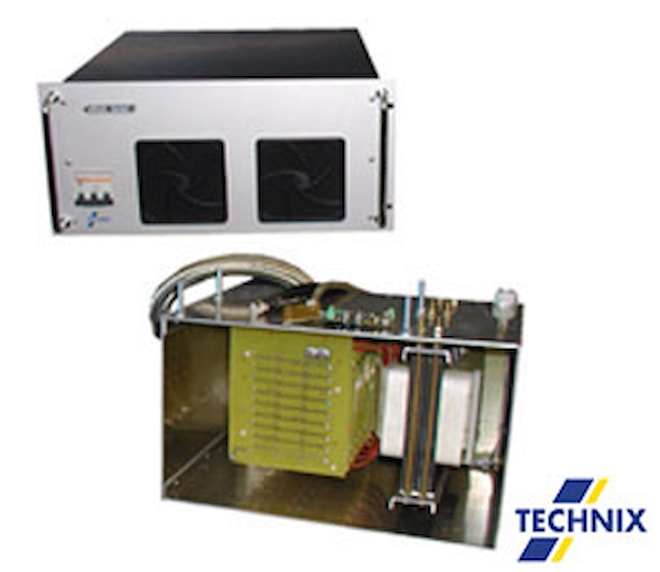

Electron Beam Series Separated Models 6 kW - 80 kW

    • voltage and current values continuously adjustable from 0 to full range
    • non-standard I x U values can be configured on request
    • very precise calibration
    • low noise, less than 0.1% RMS
    • HV block is immersed in its own oil tank(separate Electron Beam series models are offered for customers who have their own oil tank and are looking for the most economical solution)
    • warranty: 2 years
    Technix
    Other parameters
    Price on request
    Cat. no: Separatedmodels.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    Overview of standard models:

      6 kW 15 kW 20 kW 40 kW 60 kW 80 kW
    max. output voltage 70 kV 70 kV 70 kV 70 kV 70 kV 70 kV
    max. output current 110 mA 260 mA 340 mA 680 mA 1050 mA 1340 mA
    available power 6 kW 15 kW 20 kW 40 kW 60 kW 80 kW
    stored energy < 6 J < 15 J < 20 J < 40 J < 60 J < 80 J
