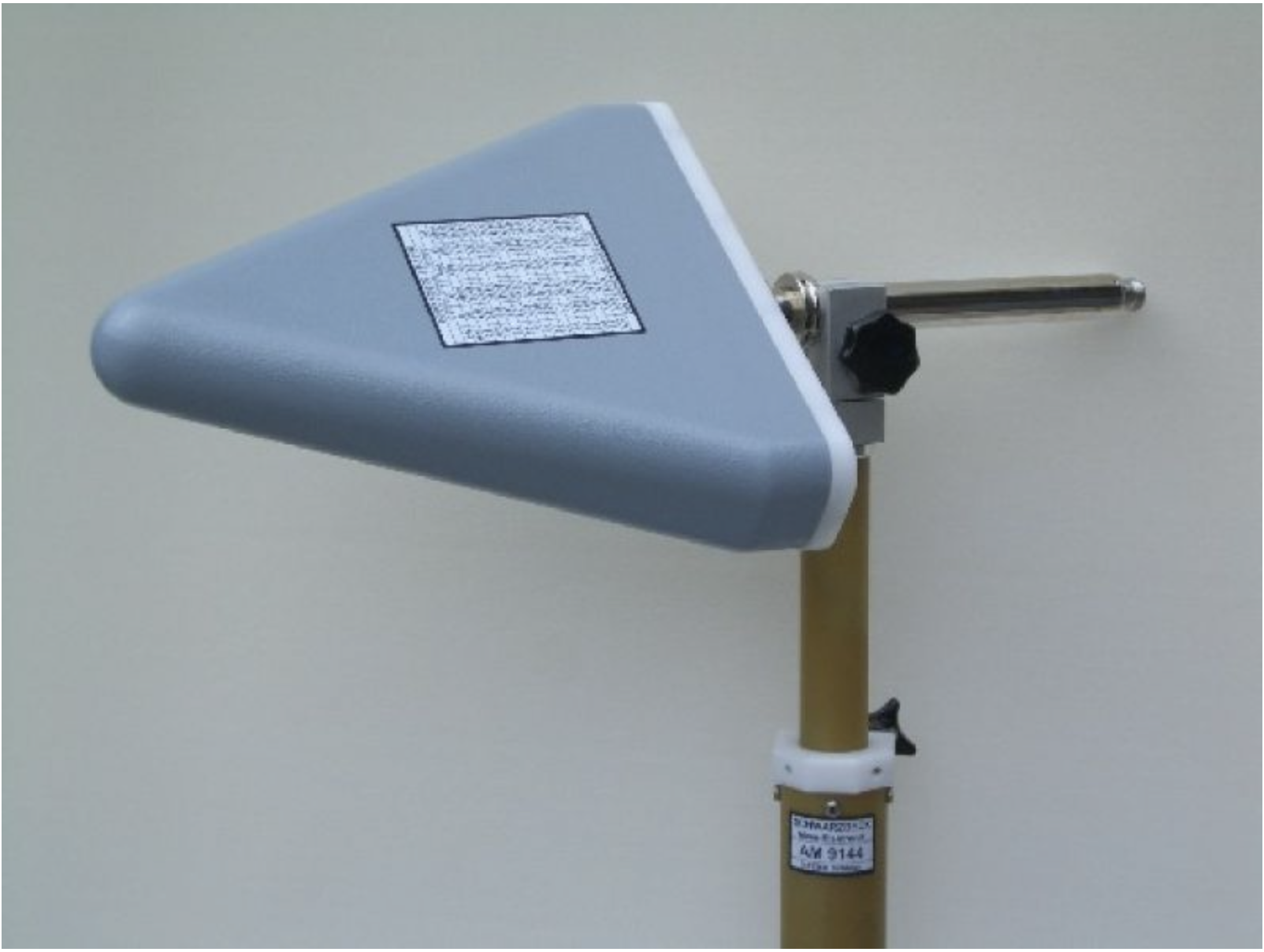

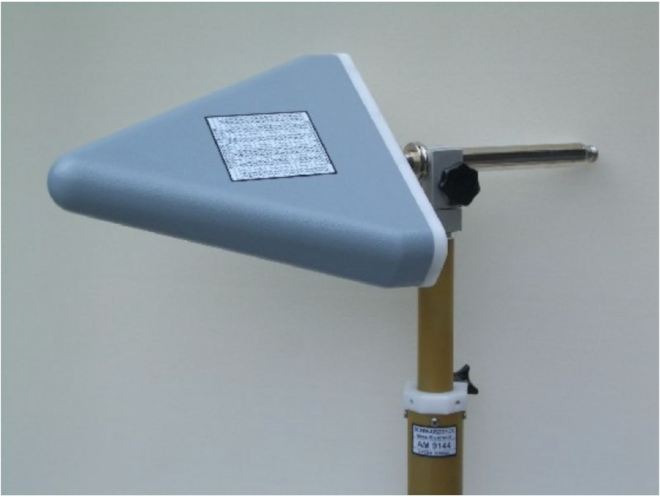

ESLP 9145 Microwave Log Periodic Antenna

    • logarithmic-periodic antenna
    • linearly polarized
    • (0,7) 1 - 18 (20) GHz
    • warranty: 2 years
    Schwarzbeck
    Other parameters
    Price on request
    Cat. no: ESLP9145.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    frequency range, nominal (0.7) 1 - 18 (20) GHz
    polarization linear
    radiation (Pattern Type) directional
    max power 20 W
    connector N - female
    impedance 50 Ω nominal
    length 0,5 m
    width 0,24 m
    height 0,04 m
    weight 0,9 kg
    mounting pipe 22 mm
    recommended adapter AA 9203 / AA 9202
