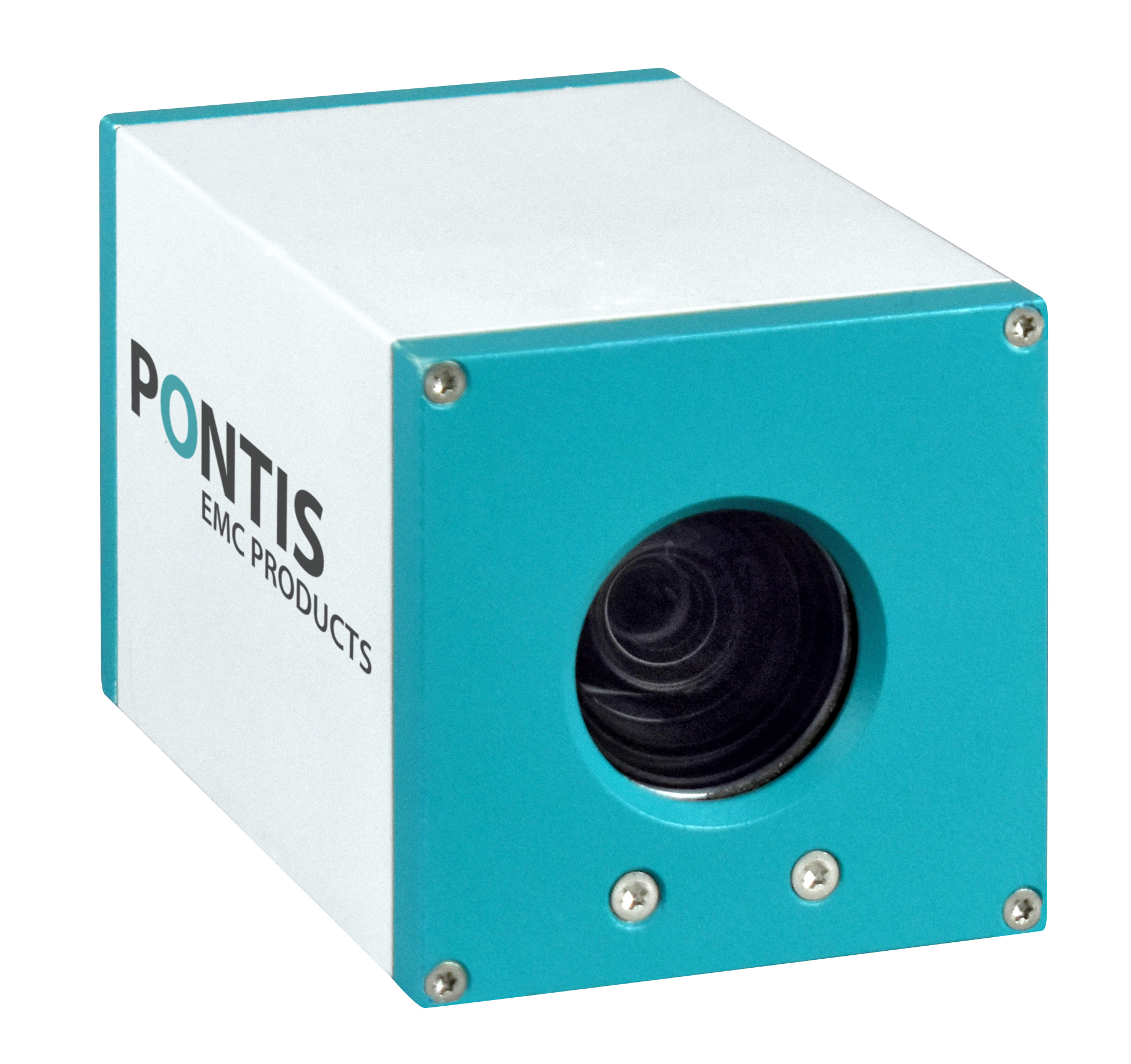

HDCam5 - High Resolution EMC Hardened Colour Camera

    • compact small size and economical solution
    • small size makes it suitable for GTEM chambers
    • for in-vehicle monitoring
    • image stabilizer / wide dynamic range
    • warranty: 2 years
    Audivo
    Other parameters
    Price on request
    Cat. no: HDCAM5.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    VF immunity resistant up to 200 V/m up to 18 GHz, 600 V/m for stripline
    RF radiation CISPR 25 Class 5, -10 dB
    focusing automatic/manual
    aperture IRIS control (manual for low light conditions)
    zoom triple optical zoom
    size compact design (60 x 60 x 90 mm)
    image Full HD 1080
    viewing angle 88,4°

    The HDCam5 camera is shielded up to 200 V/m at a resolution of 2 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme zoom is needed (3 times optical zoom).

    The wide viewing angle of 88° (horizontally) makes it suitable for viewing complete dashboards.

    The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Thus it is ideal for optical post processing e.g for automatic change or error detection during immunity testing. The camera can be operated remotely by the PONTIS EMC HD camera controllers.

    A mini monitor and control pad can be connected to set up the camera locally without a controller.
