Free shipping

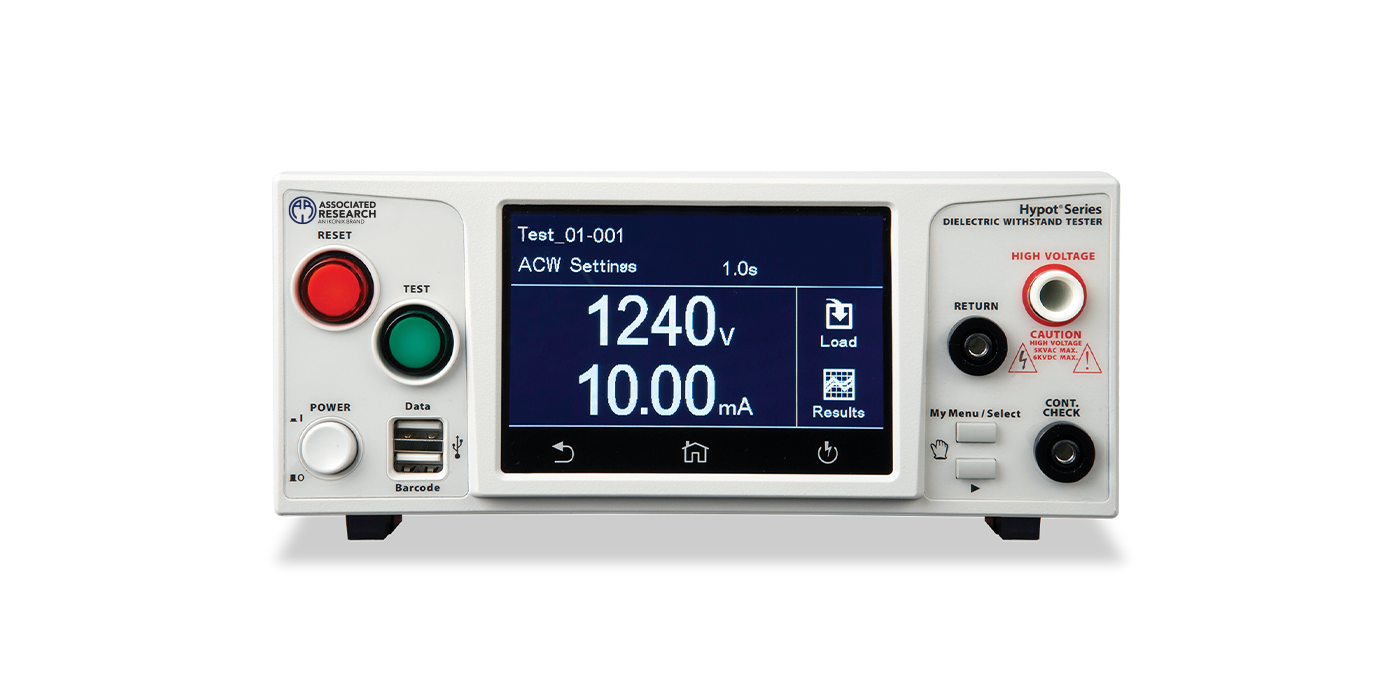

    Hypot® Series Hipot Testers

    • hipot testers
    • large-format touchscreen display
    • storage of settings and test results on USB memory
    • significantly lower weight compared to the previous generation
    • warranty: 5 years
    Associated Research
    Other parameters

    Choose: Variant.

    Variant
    3805
    in the supplier's stock
    3855
    in the supplier's stock
    3865
    in the supplier's stock
    3870
    in the supplier's stock
    detail
    €2,213.00
    €2,677.73 incl. VAT
    Cat. no: 3805
    in the supplier's stock
    detail
    €2,744.00
    €3,320.24 incl. VAT
    Cat. no: 3855
    in the supplier's stock
    detail
    €2,744.00
    €3,320.24 incl. VAT
    Cat. no: 3865
    in the supplier's stock
    detail
    €3,062.00
    €3,705.02 incl. VAT
    Cat. no: 3870
    in the supplier's stock
    more variants
    od €2,213.00
    od €2,677.73 incl. VAT

    No item matches your selection.

    Parameters and specifications

    3805
    hipot test:
    5 kV & 20 mA AC
    3855
    hipot test:
    5 kV & 20 mA AC
    insulation test:
    1MΩ-50 GΩ range
    at 30-1000 V DC
    3865
    hipot test:
    5 kV & 20 mA AC
    6 kV & 7.5 mA DC
    3870
    hipot test:
    5 kV & 20 mA AC
    6 kV & 7.5 mA DC
    insulation test:
    1MΩ-50 GΩ range
    at 30-1000 V DC

    Interface: USB, PLC communication capability

    • Built-in continuity test
    • Memory for up to 50 test steps
    • password protection of settings
    • Interface for connection to a barcode reader
    • define your own operating instructions between tests (pop-up windows on the display)
    • possibility of interfacing with HYAMP series models (protective conductor testers)
    • complies with the testing requirements of EN 50191
