HyPyr-LossTM Ultra Hybrid Absorbers

    • a range of hybrid electromagnetic absorbers
    • frequency range 30 MHz - 40 GHz
    MVG EMC
    Other parameters
    Price on request
    Cat. no: UHXX.w
    availability on request

    No item matches your selection.

    Parameters and specifications

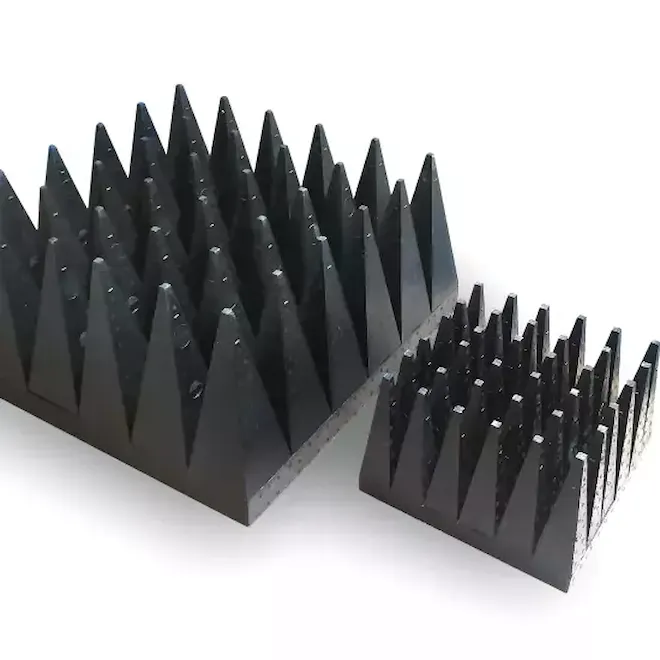

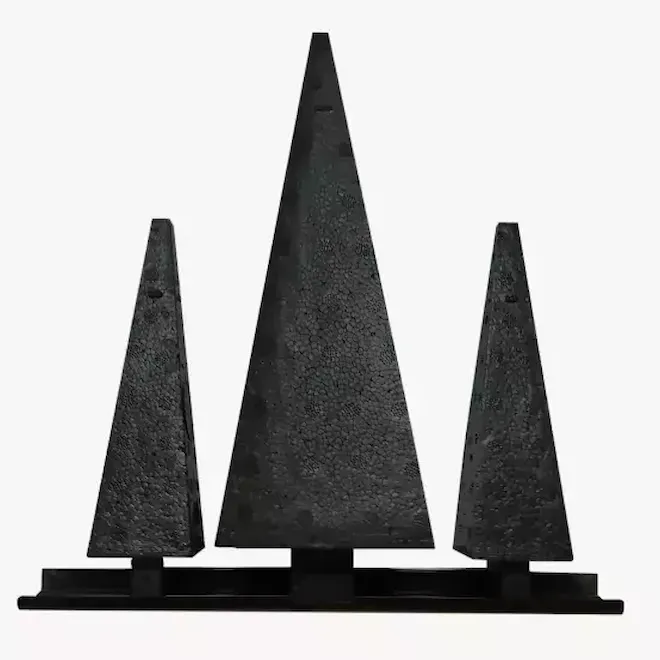

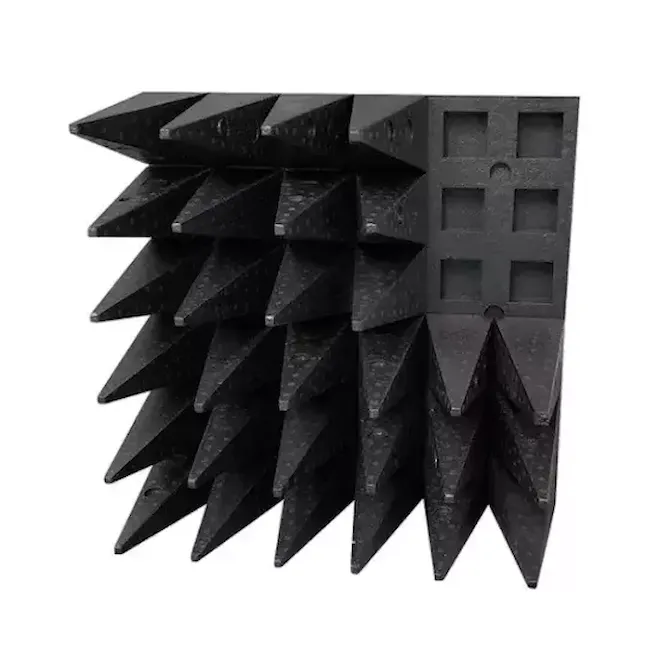

    The ULTRA UH series of polypropylene-based hybrid electromagnetic absorbers represent the latest technology for EMC and RF testing. Polypropylene has a uniform carbon density and, thanks to unique manufacturing technology, high electromagnetic reflectivity values are achieved in the test chambers.

    base dimension 60 x 60 cm
    height 30 cm, 50 cm, 75 cm
    operating temperature up to 90 °C
    relative humidity 50 % RH +/- 10 %
    operation indoor and outdoor

    Application:

    • EMC/EMI chambers
    • mixed use test equipment
    • pre-conformity and full compliance tests
