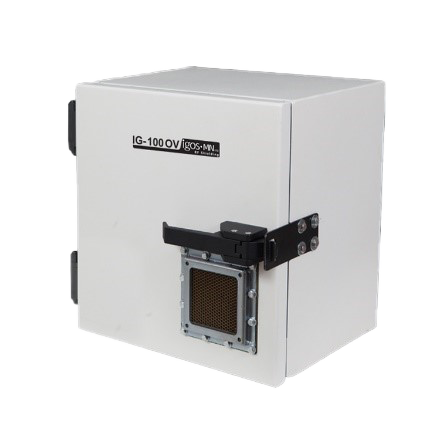

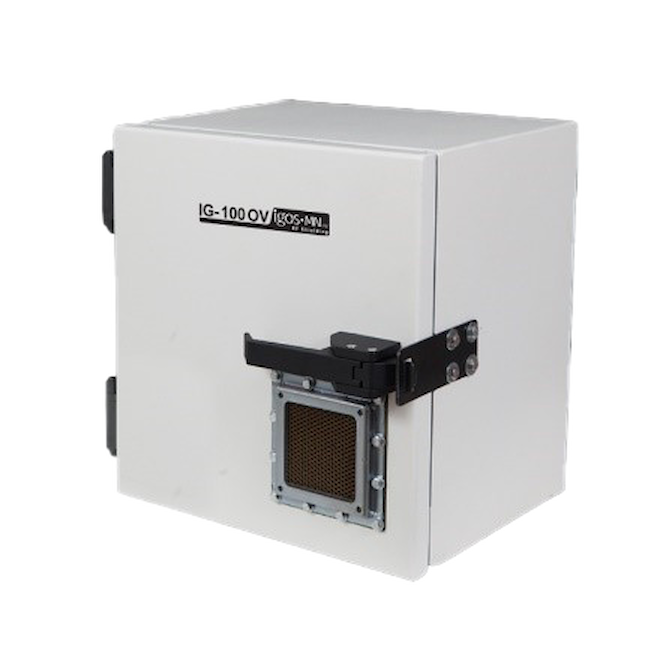

IG-100OV RF Shielded Box
- shielded box for temperature chambers for small DUTs
- up to 12 GHz
- high efficiency shielding
- warranty: 1 year
Parameters and specifications
| internal dimensions (wxhxh) | 35x25x28 cm |
| outer dimension (wxhxh) | 40x27x31 cm |
| typical RF shielding | 0.1 GHz - 1 GHz > 65 dB 1 GHz - 3 GHz > 65 dB 3 GHz - 12 GHz >65 dB |
| material | stainless steel |
| operating temperature | -50 ºC to +120 ºC |
| power supply | 100 VDC, max 20 A |

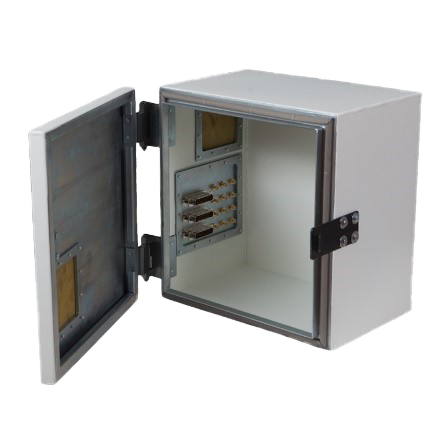

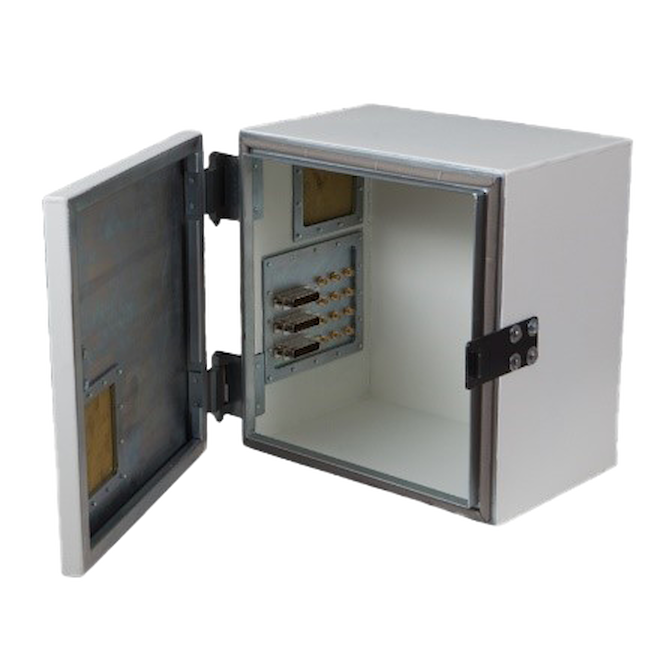

- control via modular IO filter panel
- the box is designed for testing any wireless transmission, such as: Wi-Fi, Bluetooth, RFID, 3G, 4G, 5G, WLAN, GPS and Wimax
